2. Preparing the projector
2.5 Projector configurations
Front projection
The pro jector is installed, either in a table m ount or ceiling mou nt configuration, at the s ame side of the s creen as the audience.

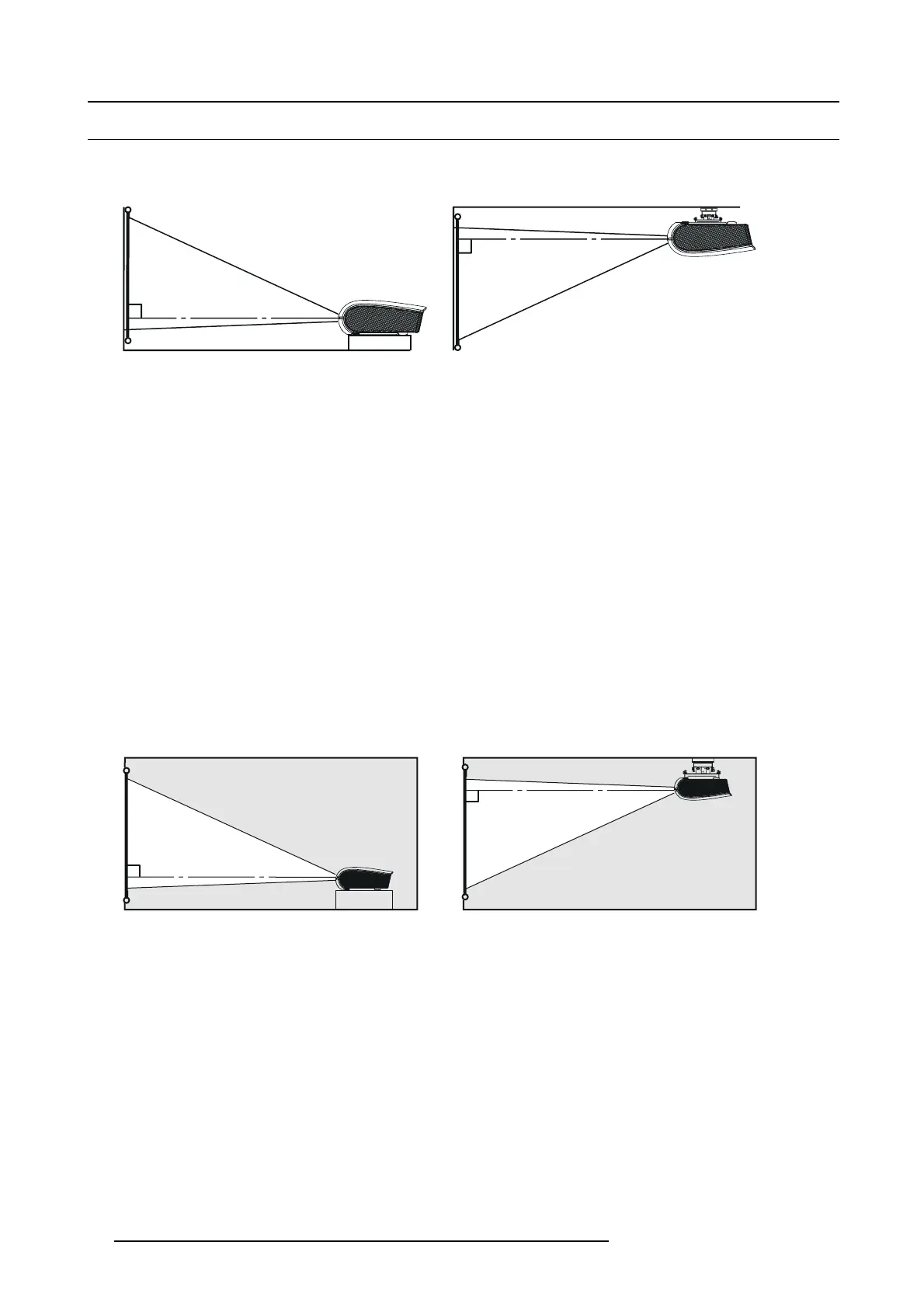

Image 2-9
For ceiling mounting, you need the ceiling mou nt kit designed for this projector. A sk a specialist for installation. For details, consult
your dealer.
Take the following things in mind for ceiling mount installations:
• The warranty on this projector does not cover any d amage caused by us e of any non-r ecom mended ceiling mount kit or instal-
lation of the ceiling mount kit in an improper location.
• When using the projector mounted on the ceiling, set IMAGE REV ER S E in the INSTALLATION 1 menu to MIRROR INVERT.
• When the pr ojector is m ounted on the ceiling, images may appear darker tha n those projected in the case of tabletop mounting.
This isn’t a product malfunction.
• Ask y our installation s pecialist to p rovide a breaker. When you do not use the projector, be sure to shut down the main power
by the breaker.
• Do not ins tall the pro jector where the ex haust vents are exposed to air emitted by an air conditioning. Such installation may
cause a breakdown.
• Do not install the projector near a fire alarm because it emits hot air from its exhaust vents.
• Installation must b e done by a qualified professional.
• When the projector is installed on the ceiling using the c eiling mount kit, it is recommended to hold the mount kit and the projector
using metal bars or wires in addition to the m ount kit fixing screws to preve
nt the projector from falling due to an earthquake
or other cause. F or that purpose, use metal bars, wires, or screws that bear a load of at least 260 k gf. When using metal
wires, secure one end to the adjustment foot of the projector and the other end to the mount kit. In this cas e, m ake sure that
no electrical current is flowing in t he moun t kit due to current leakag
e or other caus e.
Rear projection
The projector is installed, either in a table mount or ceiling mount configuration, at the other side of the screen opposite the audience.
Image 2-10
Ask a specialist for installation. For details, consult your dealer.
Take the following in mind:
• For rear projection, set IMAGE REVERSE in the INSTALLATION 1 menu to MIRROR.
• The sam e points as for a front ceiling should be kept in mind during the installation.
16
R5905597 PHXX SERIES 20/05/2014

Barco PHWU-81B Specifications

General

Matrix size	0.67 \
Matrix type	DMD
Native aspect ratio	16:10
Projection distance	- m
Projection technology	DLP
Contrast ratio (typical)	2800:1
Screen size compatibility	- \
Projector native resolution	WUXGA (1920x1200)
Projector brightness (economic mode)	5450 ANSI lumens
Focal length range	- mm
Lamp power	350 W
Lamps quantity	2 lamp(s)
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	4000 h
Full HD	No
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Ethernet LAN data rates	10, 100 Mbit/s
I/O ports	SDI
Noise level	44 dB
Noise level (economic mode)	39 dB
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	Black, White
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	910 W
Power consumption (standby)	0.3 W
Power consumption (economy mode)	690 W
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	30 - 90 %

Weight and Dimensions

Depth	660 mm
Width	510 mm
Height	263 mm
Weight	21000 g
Package depth	840 mm
Package width	650 mm
Package height	415 mm
Package weight	26500 g
