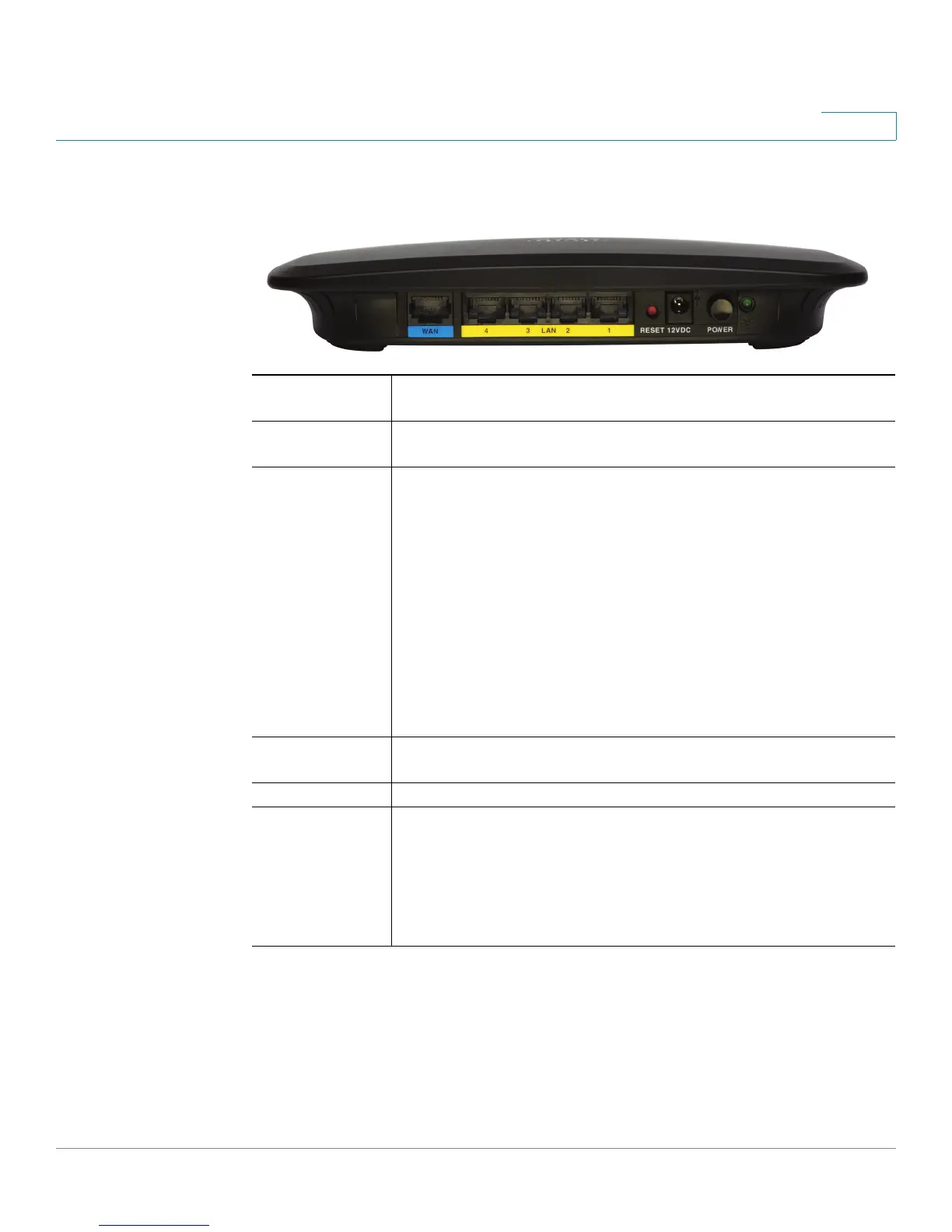

Back Panel
WAN The WAN (Internet) port is connected to your Internet device,
such as a cable or DSL modem.
LAN (1–4) These ports provide the LAN connection to network devices,
such as PCs, print servers, or switches.
RESET The RESET button has two functions:
• Reboot: If the CVR100W has problems connecting to
the Internet, press the RESET button for at least one
second but no more than five seconds with a paper clip
or a pencil tip.
• Restore to Factory Defaults: If you are experiencing
extreme problems with the CVR100W and have tried all
other troubleshooting measures, press and hold in the
RESET button for more than five seconds. This reboots
the unit and restores the factory defaults. The settings
that you have previously made to the CVR100W are lost.
12VDC The 12VDC port is where you connect the supplied power
adapter (12V/0.5 A).
Power Press this button to power the CVR100W on and off.
Do-Not-Disturb
Mode Light
• Solid green when the Do-Not-Disturb Mode button is
turned on and the CVR100W is operating normally.
• Flashes green when the Do-Not-Disturb Mode button is
turned on, but the Internet connection has problems.
• Off when the Do-Not-Disturb Mode button is turned off.
