Dell PowerConnect 5424 User Manual

Configuring System Information 165
Defining the Local User Databases
The Local User Database page contains fields for defining users, passwords and access levels. To open the
Local User Database page, click System→ Management Security→ Local User Database in the tree view.

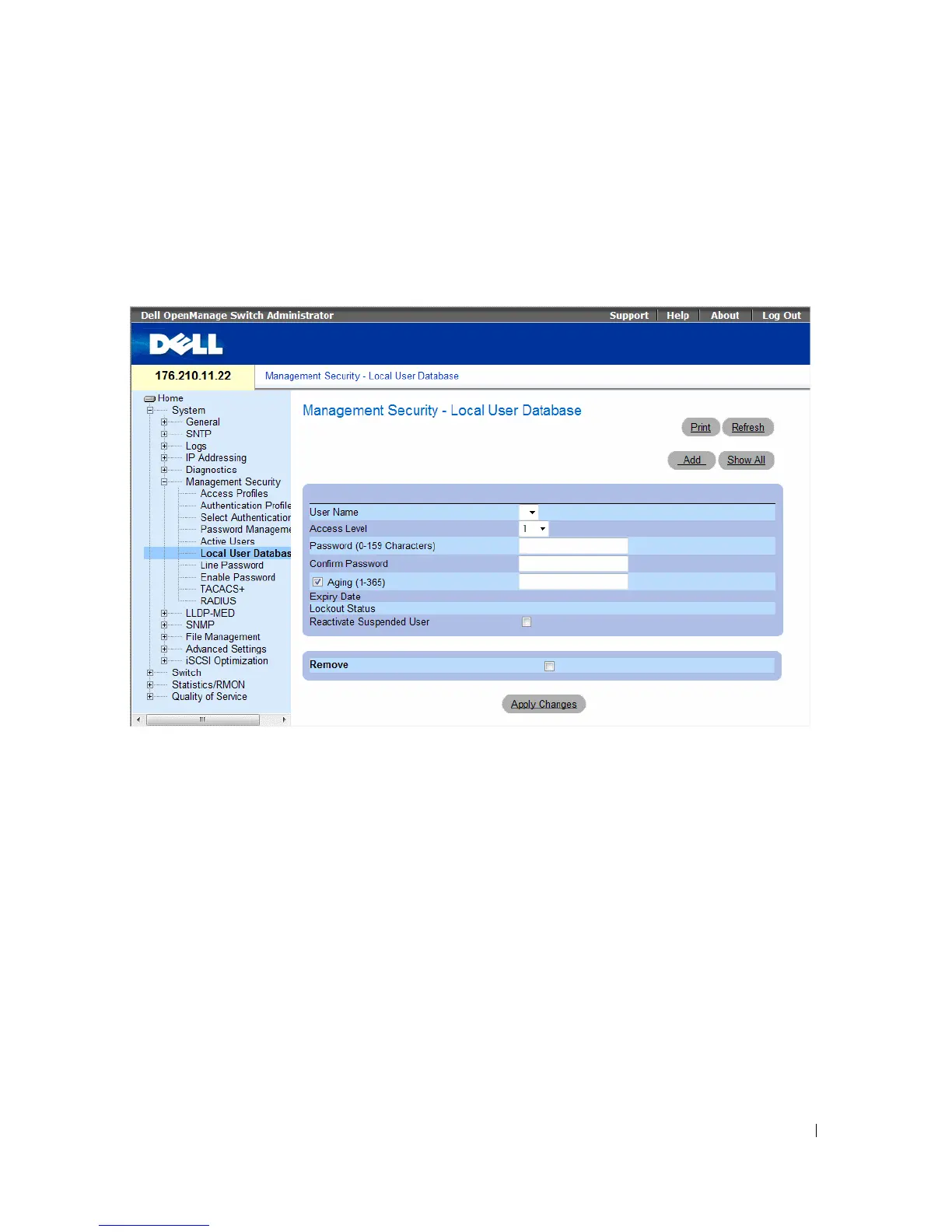

Figure 6-59. Local User Database
The Local User Database page contains the following fields:
• User Name — List of users.
•
Access Level — User access level. The lowest user access level is 1 and 15 is the highest user access
level. Users with access level 15 are Privileged Users, and only they can access and use the
OpenManage Switch Administrator.
•
Password (0-159 Characters) — User-defined password.
•
Confirm Password — Confirms the user-defined password.
•
Aging (1-365) — Indicates the amount of time in days that elapses before a password is aged out,
when selected.
•
Expiry Date — Indicates the expiration date of the user-defined password.

Dell PowerConnect 5424 Specifications

General

Ports	24 x 10/100/1000Base-T
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
Rack Mountable	Yes
Power Supply	Internal
MAC Address Table Size	8K entries
RAM	128 MB
Flash Memory	16 MB
Voltage Required	100-240V AC
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Remote Management Protocol	SNMP, RMON, Telnet
Features	QoS, VLAN, Link Aggregation
