Dell PowerConnect 5424 User Manual

358 Configuring Device Information
Adding Bridge Multicast Address Members
The Bridge Multicast Group page displays the ports and LAGs attached to the Multicast service group
in the Ports and LAGs tables. The Port and LAG tables also reflect the manner in which the port or
LAGs joined the Multicast group. Ports can be added either to existing groups or to new Multicast
service groups. The Bridge Multicast Group page permits new Multicast service groups to be created.
The Bridge Multicast Group page also assigns ports to a specific Multicast service address group.
To open the Bridge Multicast Group page, click Switch→ Multicast Support→ Bridge Multicast Address
in the tree view.

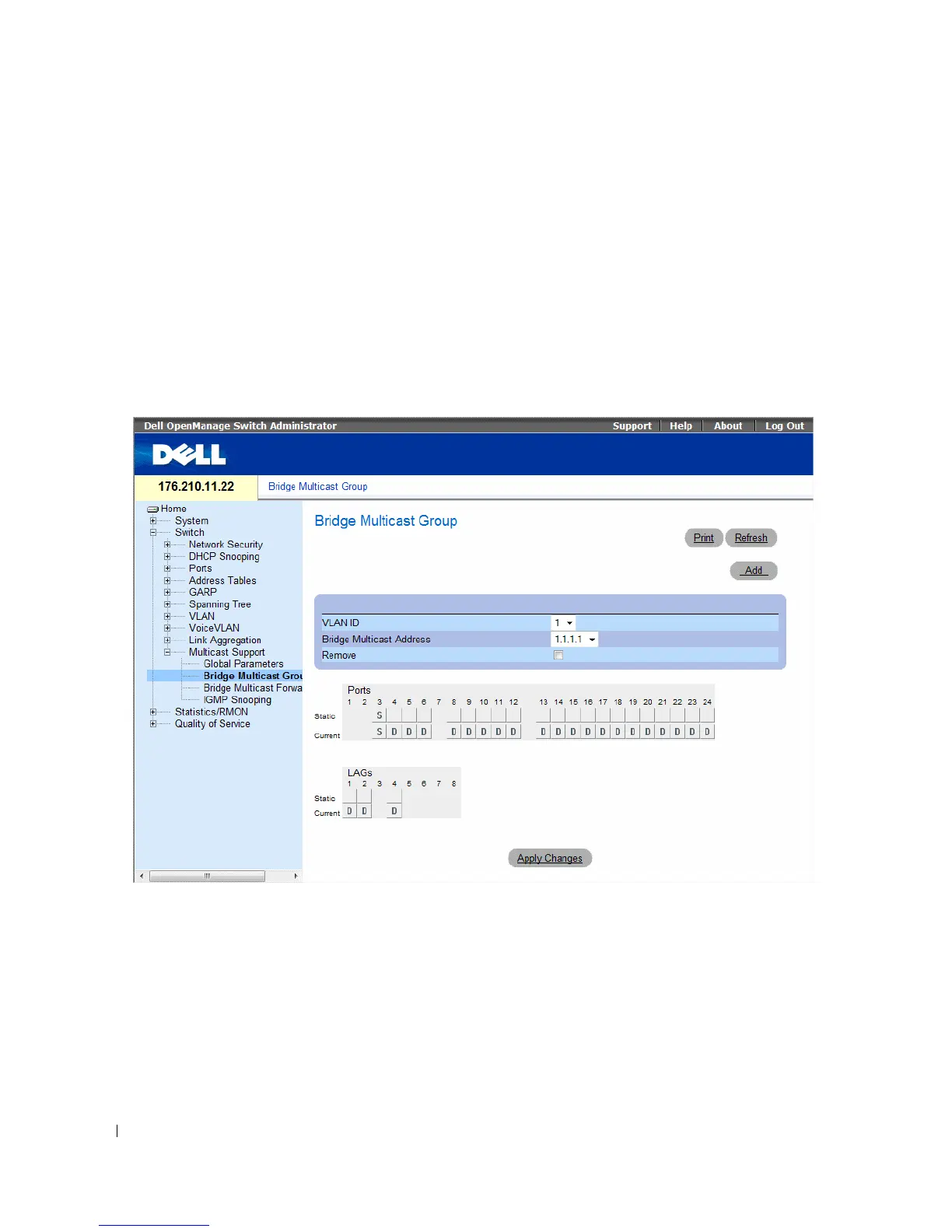

Figure 7-56. Bridge Multicast Group
• VLAN ID — Identifies a VLAN and contains information about the Multicast group address.
•
Bridge Multicast Address — Identifies the Multicast group MAC address/IP address.
•
Remove — When selected, removes a Bridge Multicast address.
•
Ports — Port that can be added to a Multicast service.
•
LAGs — LAGs that can be added to a Multicast service.

Dell PowerConnect 5424 Specifications

General

Ports	24 x 10/100/1000Base-T
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
Rack Mountable	Yes
Power Supply	Internal
MAC Address Table Size	8K entries
RAM	128 MB
Flash Memory	16 MB
Voltage Required	100-240V AC
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Remote Management Protocol	SNMP, RMON, Telnet
Features	QoS, VLAN, Link Aggregation
