Dell PowerConnect 5424 User Manual

Viewing Statistics 377
• Transmit Non Unicast Packets — Number of transmitted non-Unicast packets from the interface.
•
Received Errors — The number of error packets received on the interface.
•
Global System LAG — Current LAG/trunk performance.
Viewing Interface Statistics
The Interface Statistics page contains statistics for both received and transmitted packets. The fields
for both received and transmitted packets are identical. To open the Interface Statistics page,
click Statistics/RMON→ Table Vie ws→ Interface Statistics in the tree view.

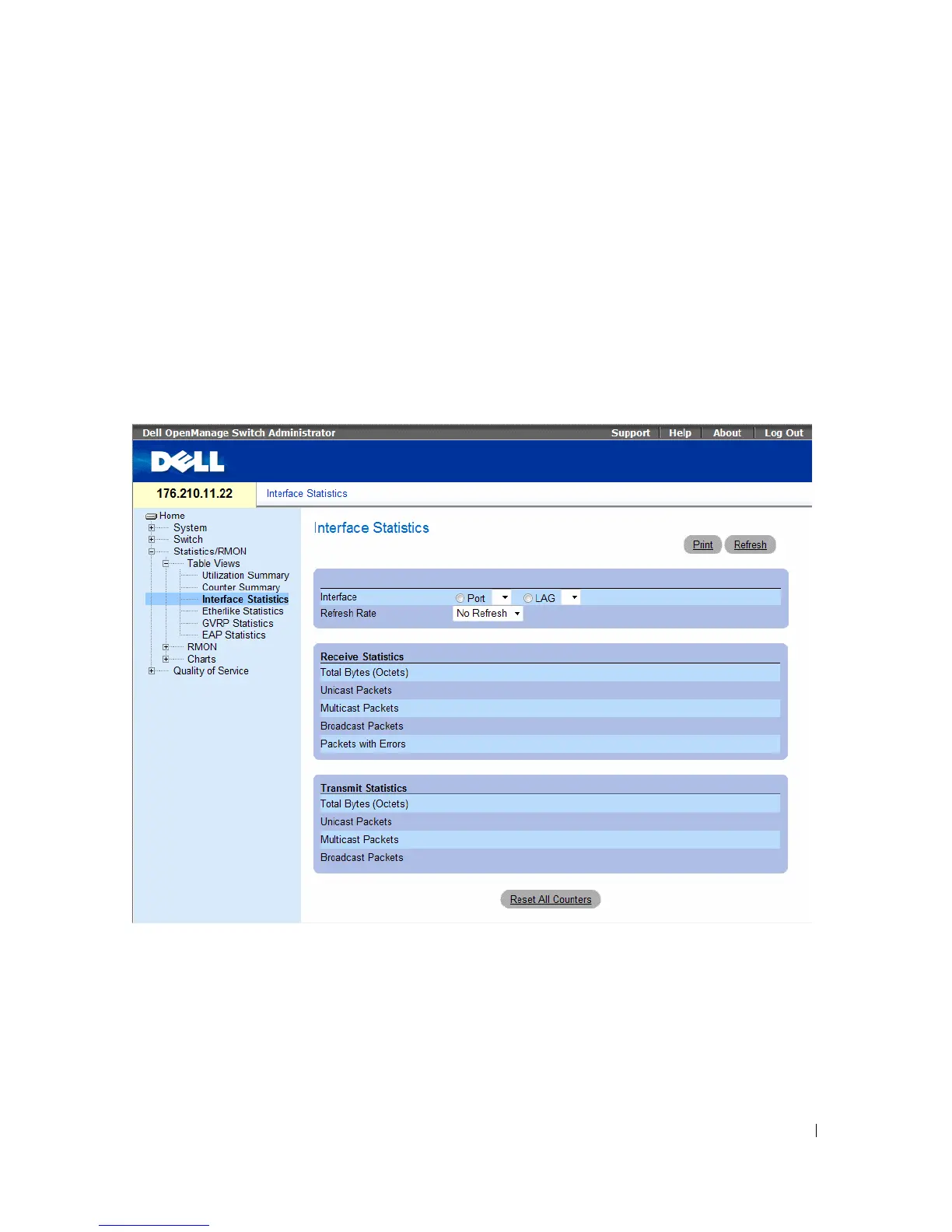

Figure 8-3. Interface Statistics
• Interface — Specifies whether statistics are displayed for a port or LAG.
•
Refresh Rate — Amount of time that passes before the interface statistics are refreshed.

Dell PowerConnect 5424 Specifications

General

Ports	24 x 10/100/1000Base-T
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
Rack Mountable	Yes
Power Supply	Internal
MAC Address Table Size	8K entries
RAM	128 MB
Flash Memory	16 MB
Voltage Required	100-240V AC
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Remote Management Protocol	SNMP, RMON, Telnet
Features	QoS, VLAN, Link Aggregation
