Dell PowerConnect 5424 User Manual

176 Configuring System Information
Configuring RADIUS Global Parameters
Remote Authorization Dial-In User Service (RADIUS) servers provide additional security for networks.
RADIUS servers provide a centralized authentication method for:
• Telnet Access
• Web Access
• Console to Device Access
To open the RADIUS Settings page, click System → Management Security → RADIUS in the tree view.

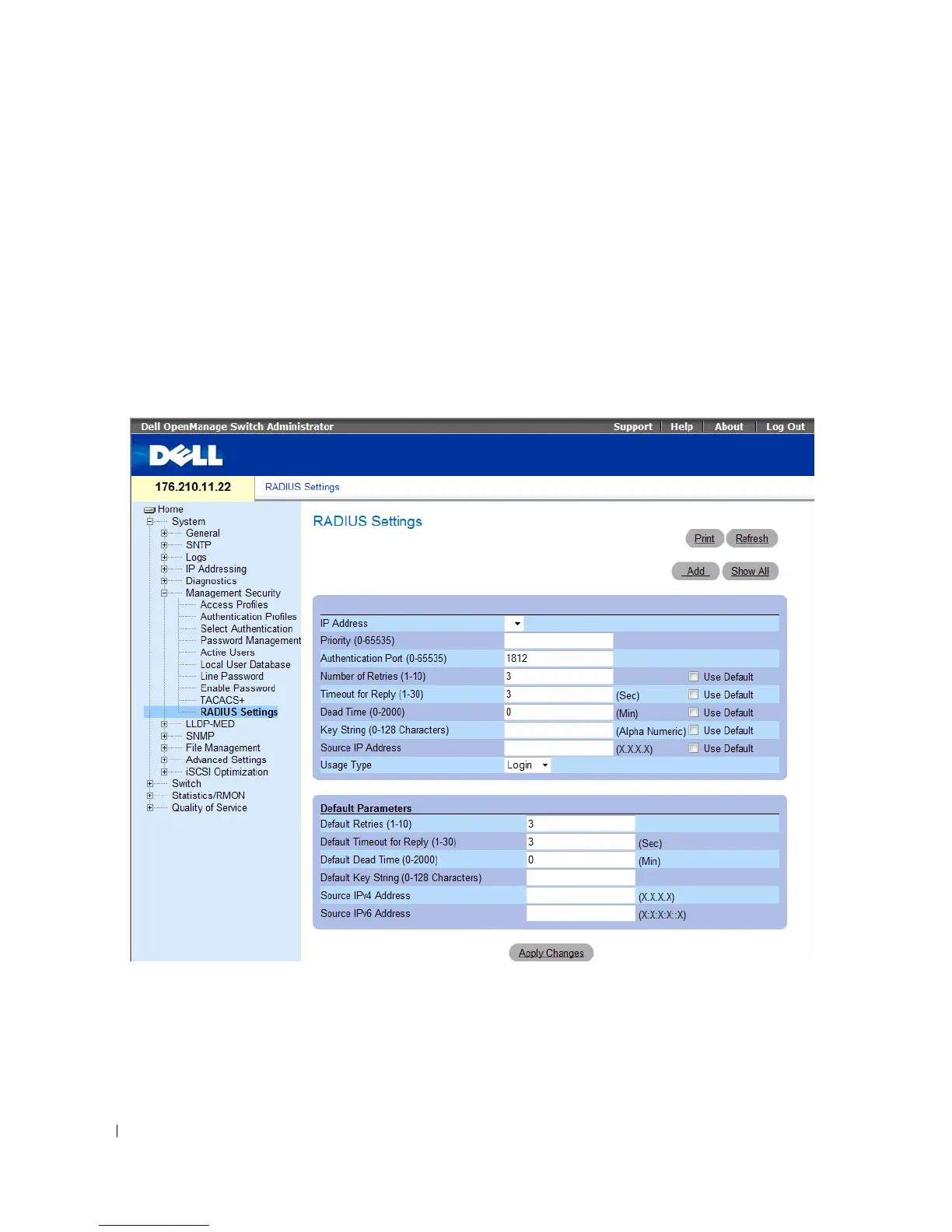

Figure 6-67. RADIUS Settings
• IP Address — The list of Authentication Server IP addresses.
•
Priority (1-65535) — Specifies the server priority. The possible values are 1-65535, where 1 is the
highest value. This is used to configure the order in which servers are queried.
•
Authentication Port — Identifies the authentication port. The authentication port is used to verify
the RADIUS server authentication.

Dell PowerConnect 5424 Specifications

General

Ports	24 x 10/100/1000Base-T
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
Rack Mountable	Yes
Power Supply	Internal
MAC Address Table Size	8K entries
RAM	128 MB
Flash Memory	16 MB
Voltage Required	100-240V AC
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Remote Management Protocol	SNMP, RMON, Telnet
Features	QoS, VLAN, Link Aggregation
