Dell PowerConnect 5424 User Manual

212 Configuring System Information
Defining Notification Filters
The Notification Filter page permits filtering traps based on OIDs. Each OID is linked to a device
feature or a feature aspect. The Notification Filter page also allows network managers to filter
notifications. To open the Notification Filter page, click System
→ SNMP → Notification Filter in the
tree view.

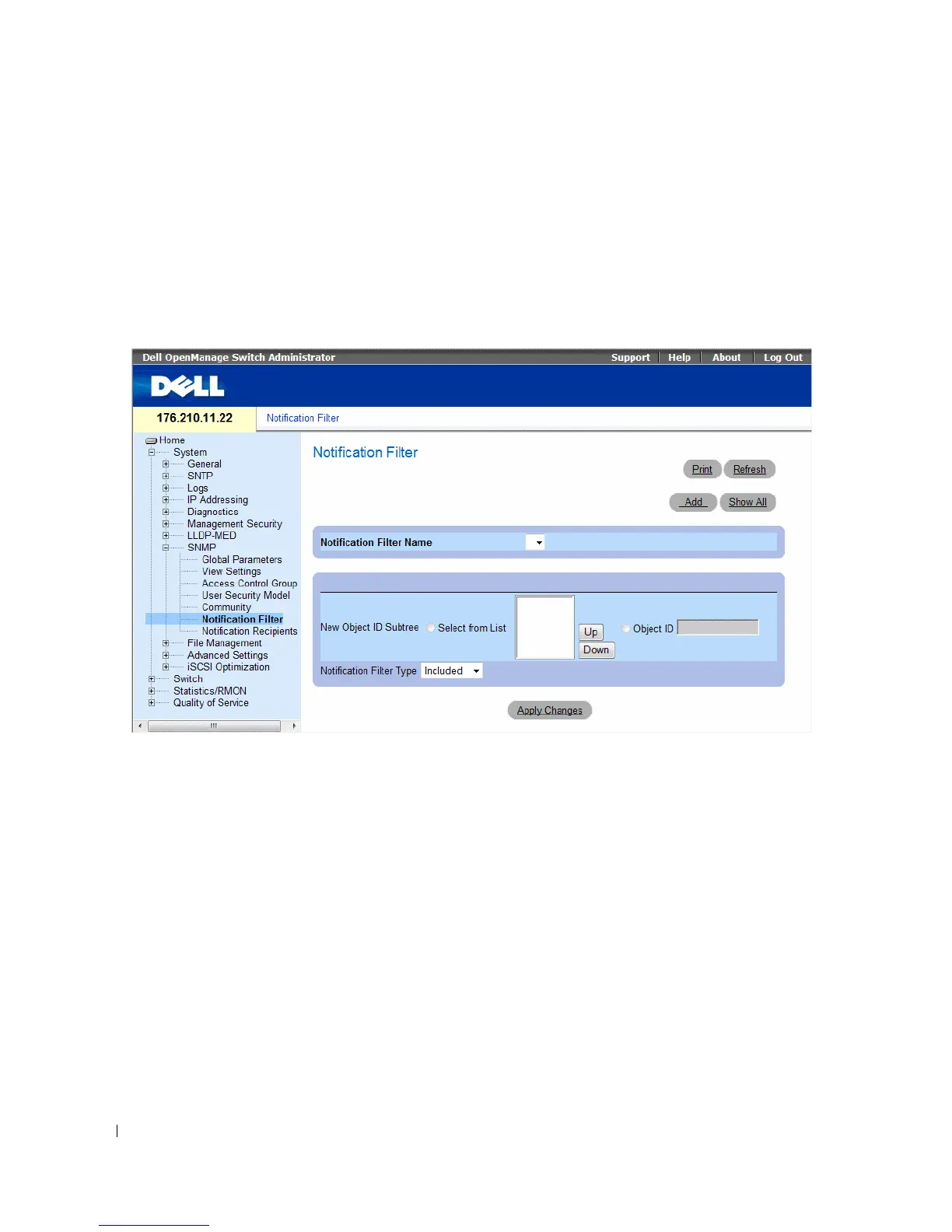

Figure 6-95. Notification Filters
• Notification Filter Name — The user-defined notification filter.
•
New Object ID Subtree — The OID for which notifications are sent or blocked. If a filter is attached
to an OID, traps or informs are generated and sent to the trap recipients. Object IDs are selected from
either the Select from List or the Object ID List.
•
Notification Filter Type — Indicates whether informs or traps are sent regarding the OID to the trap
recipients.
–
Excluded — Restricts sending OID traps or informs.
–
Included — Sends OID traps or informs.

Dell PowerConnect 5424 Specifications

General

Ports	24 x 10/100/1000Base-T
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
Rack Mountable	Yes
Power Supply	Internal
MAC Address Table Size	8K entries
RAM	128 MB
Flash Memory	16 MB
Voltage Required	100-240V AC
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Remote Management Protocol	SNMP, RMON, Telnet
Features	QoS, VLAN, Link Aggregation
