Dell PowerConnect 5424 User Manual

224 Configuring System Information
Uploading Files
The File Upload to Server page contains fields for uploading the software from the device to the TFTP
server. To open the File Upload to Server page, click System → File Management → File Upload in the
tree view.

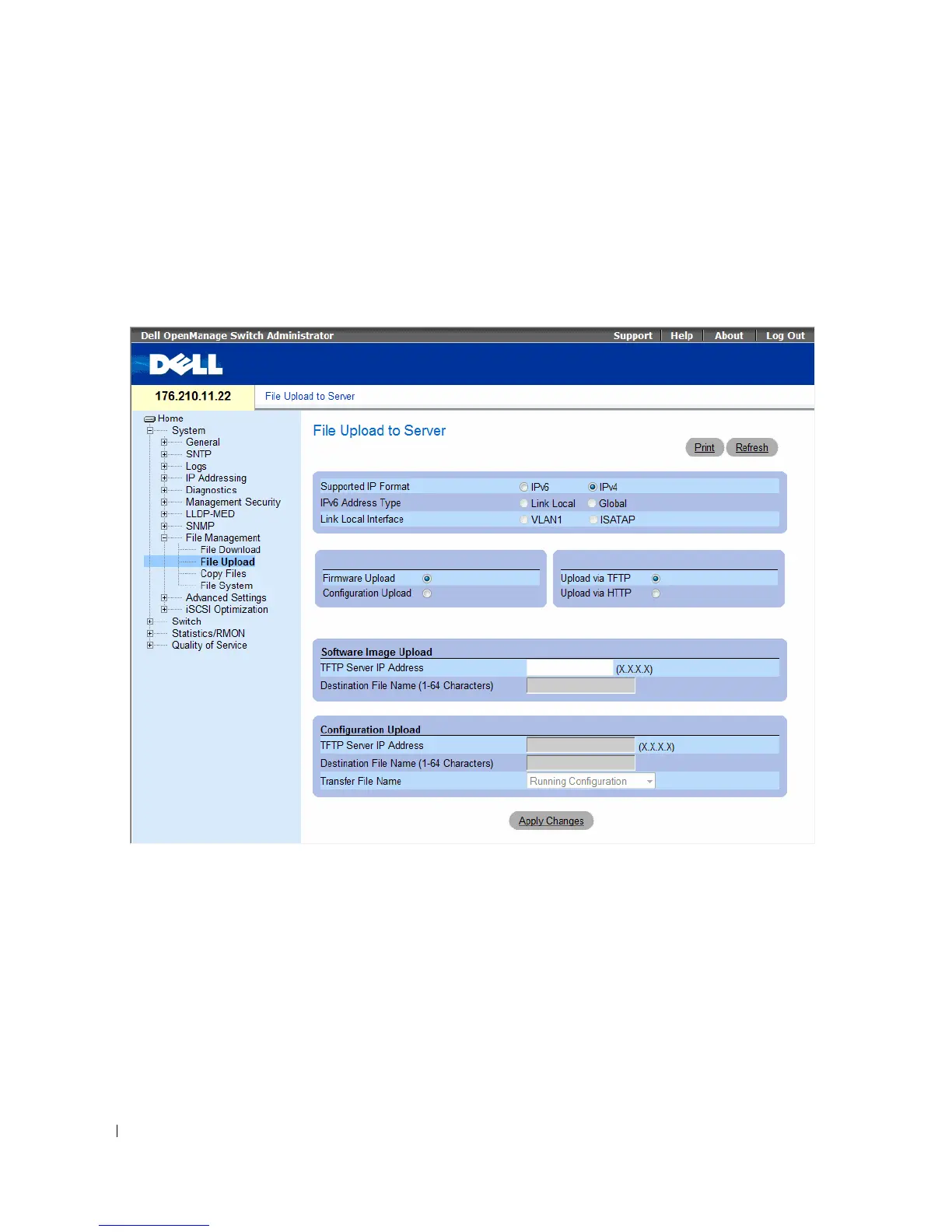

Figure 6-101. File Upload to Server
• Supported IP Format — Specifies the IP format supported by the server. The possible values are:
–
IPv6 — IP version 6 is supported.
–
IPv4 — IP version 4 is supported.
•
IPv6 Address Type — When the server supports IPv6 (see previous parameter), this specifies the type
of static address supported. The possible values are:
–
Link Local — A Link Local address that is non-routable and used for communication on the same
network only.
–
Global — A globally unique IPv6 address; visible and reachable from different subnets.

Dell PowerConnect 5424 Specifications

General

Ports	24 x 10/100/1000Base-T
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
Rack Mountable	Yes
Power Supply	Internal
MAC Address Table Size	8K entries
RAM	128 MB
Flash Memory	16 MB
Voltage Required	100-240V AC
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Remote Management Protocol	SNMP, RMON, Telnet
Features	QoS, VLAN, Link Aggregation
