Dell PowerConnect 5424 User Manual

192 Configuring System Information
Viewing the LLDP Neighbors Information
The Neighbors Information page contains information received from neighboring device LLDP
advertisements. To open the Neighbor Information page, click System
→ LLDP-MED → Neighbors
Information in the tree view.

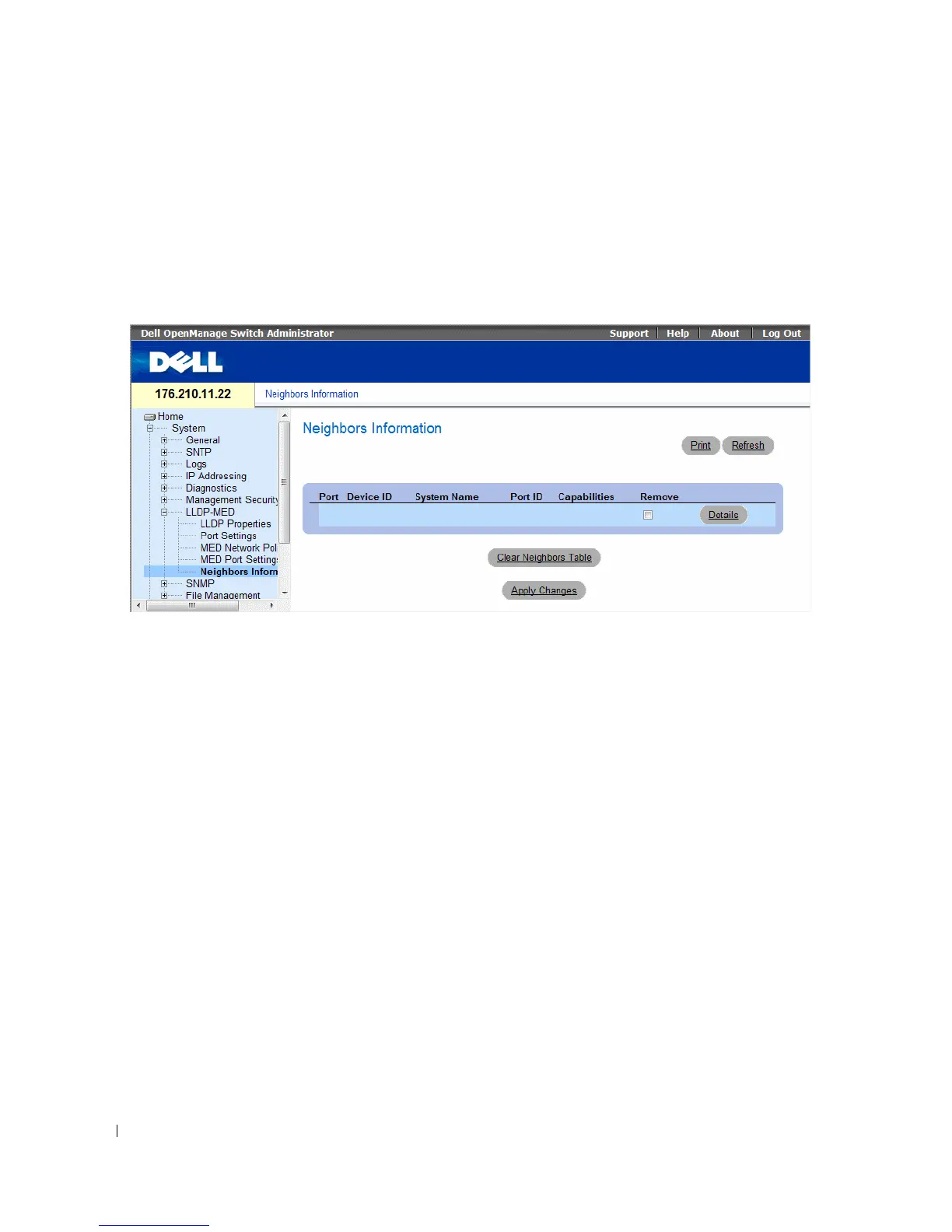

Figure 6-79. Neighbors Information
• Port — Displays the neighboring port number.
•
Device ID — Displays the neighboring device ID.
•
System Name — Displays the neighboring system time.
•
Port ID — Displays the neighboring port ID
•
Capabilities — Displays the neighboring device capabilities.
• Removing a port from the table:
1 Open the Neighbors Information page.
2 Check the Remove checkbox of each port to be removed.
3 Click Apply Changes . The ports are removed.
Clearing the table:
1
Open the Neighbors Information page.
2 Click Clear Neighbors Table . The table is cleared.

Dell PowerConnect 5424 Specifications

General

Ports	24 x 10/100/1000Base-T
Switching Capacity	48 Gbps
Forwarding Rate	35.7 Mpps
VLAN Support	Yes
Rack Mountable	Yes
Power Supply	Internal
MAC Address Table Size	8K entries
RAM	128 MB
Flash Memory	16 MB
Voltage Required	100-240V AC
Management	Web, CLI, SNMP
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Standards Compliance	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Remote Management Protocol	SNMP, RMON, Telnet
Features	QoS, VLAN, Link Aggregation
