H Control panel
The printer is equipped with a 4.3-inch touch panel.
I Printer cover
Open this cover when cleaning the inside of the printer or clearing jams.
J Paper support lock lever
The paper support lock lever.

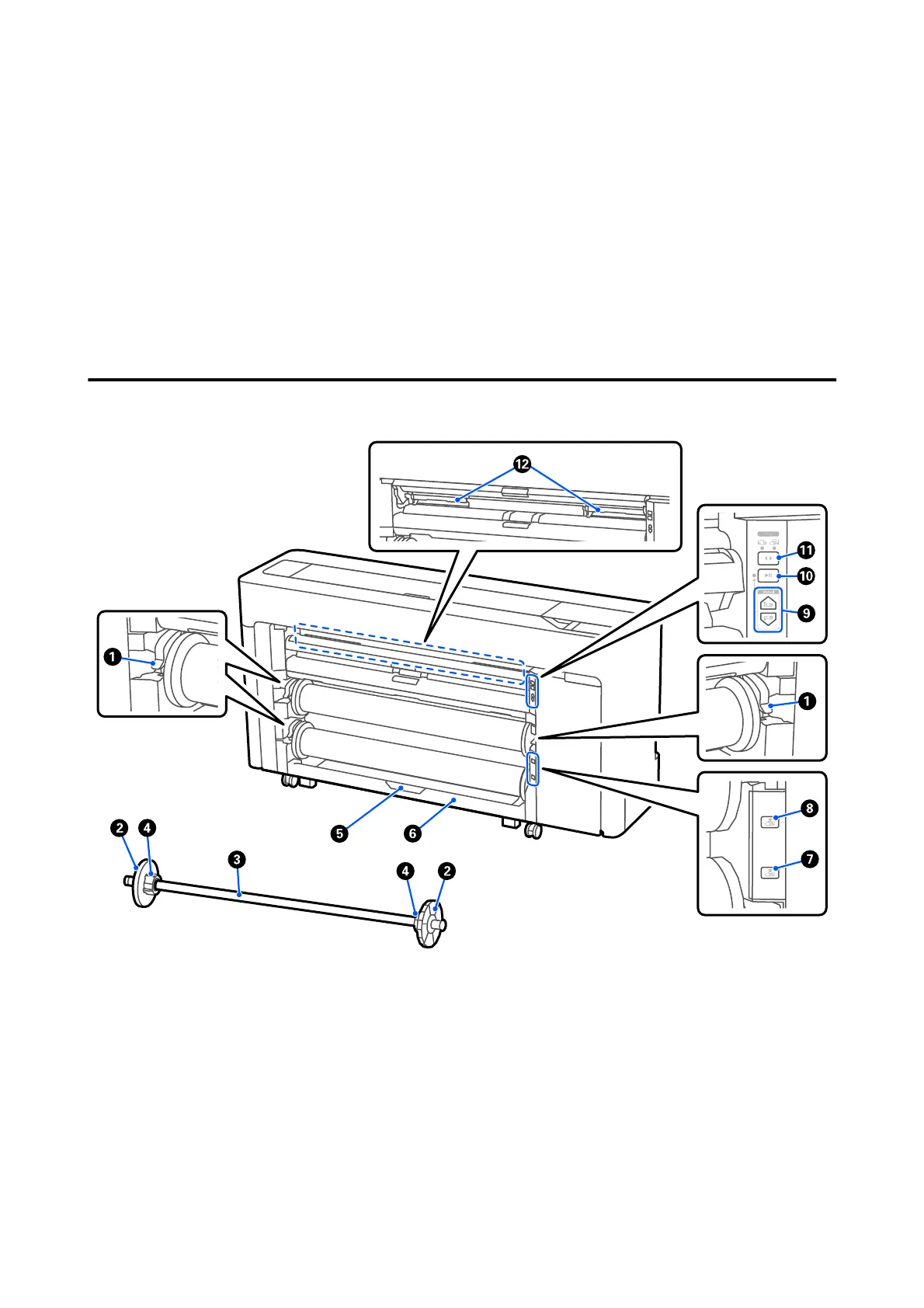

Around the Roll Paper
A Spindle lock lever
The spindle lock lever.
B Media edge guide
This fixes the roll paper placed on the spindle. Attach or remove the transparent media edge guide when load‐
ing roll paper.
C Spindle
When loading roll paper, insert this through the roll paper.
SC-P8500DM/SC-P8500D/SC-P6500D/SC-P6500DE/SC-P6500E/SC-T7700DM/SC-T5700DM/SC-T7700D/SC-T5700D/SC-3700D/SC-T3700DE/SC-T3700E/SC-P8500DL/SC-T7700DL Series User's Guide
