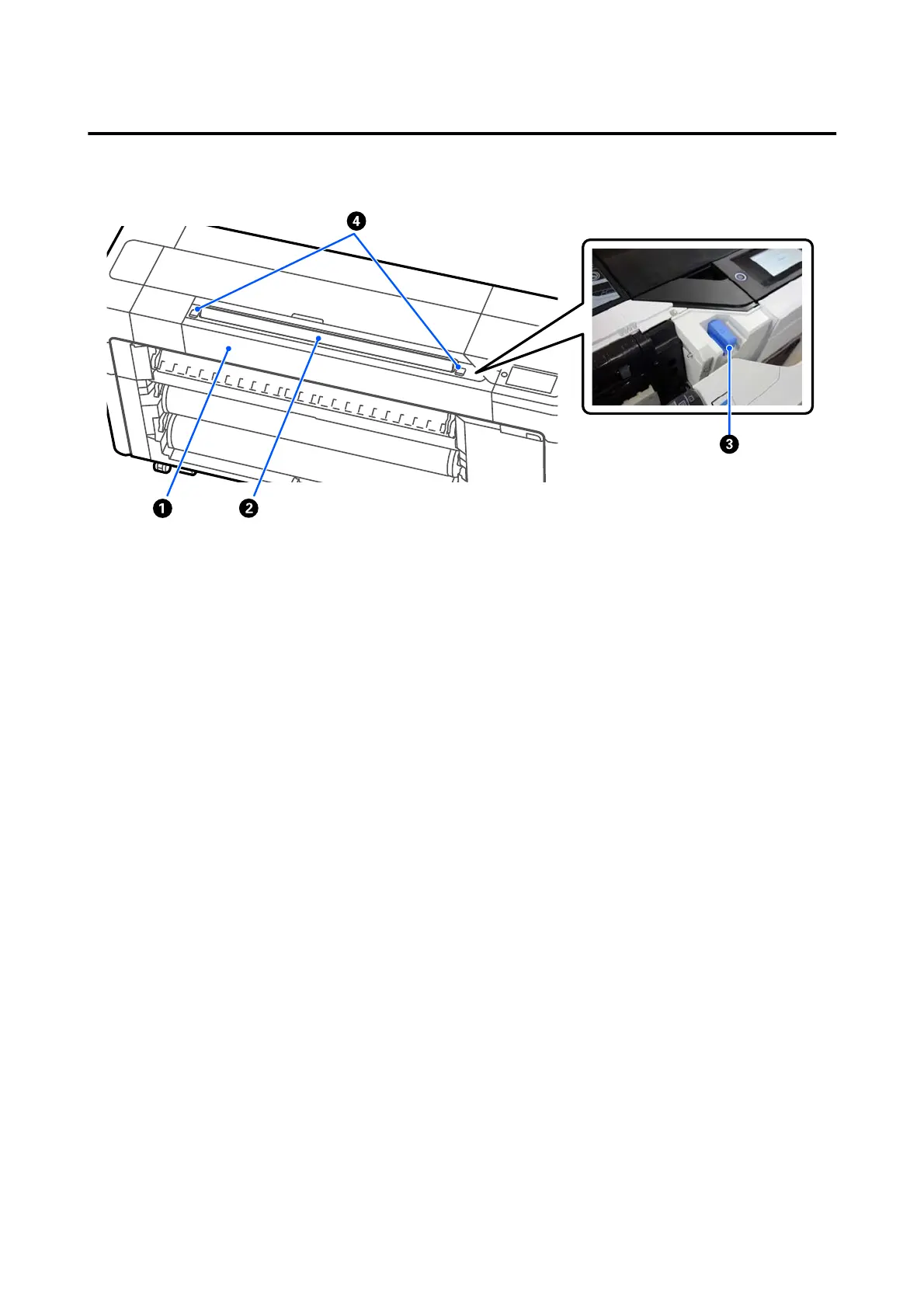

Scanner (SC-P8500DM Series/SC-T7700DM Series/SC-T5700DM
Series only)
A Scanner cover
Open this cover when a paper jam occurs and so on.
B Scanner slot
Insert originals to be scanned.
C Scanner edge guide
Store the scanner edge guide when you open the scanner cover. This guide allows you to feed originals straight
into the printer.
D Lock lever
Open the scanner cover while pressing the left and right lock levers.
SC-P8500DM/SC-P8500D/SC-P6500D/SC-P6500DE/SC-P6500E/SC-T7700DM/SC-T5700DM/SC-T7700D/SC-T5700D/SC-3700D/SC-T3700DE/SC-T3700E/SC-P8500DL/SC-T7700DL Series User's Guide
Introduction
16
