Equipment overview
ATS equipment description
Basic components
For additional information, refer to Technical specifications on page A-1.
Redundant internal hard disk drives (viewed as single logical drive)
Power supplies
CD-ROM drive
Ethernet PCI (PC interface) plug-in circuit board
1024 x 768, 16-bit, 75 Hz video
512 MB RAM

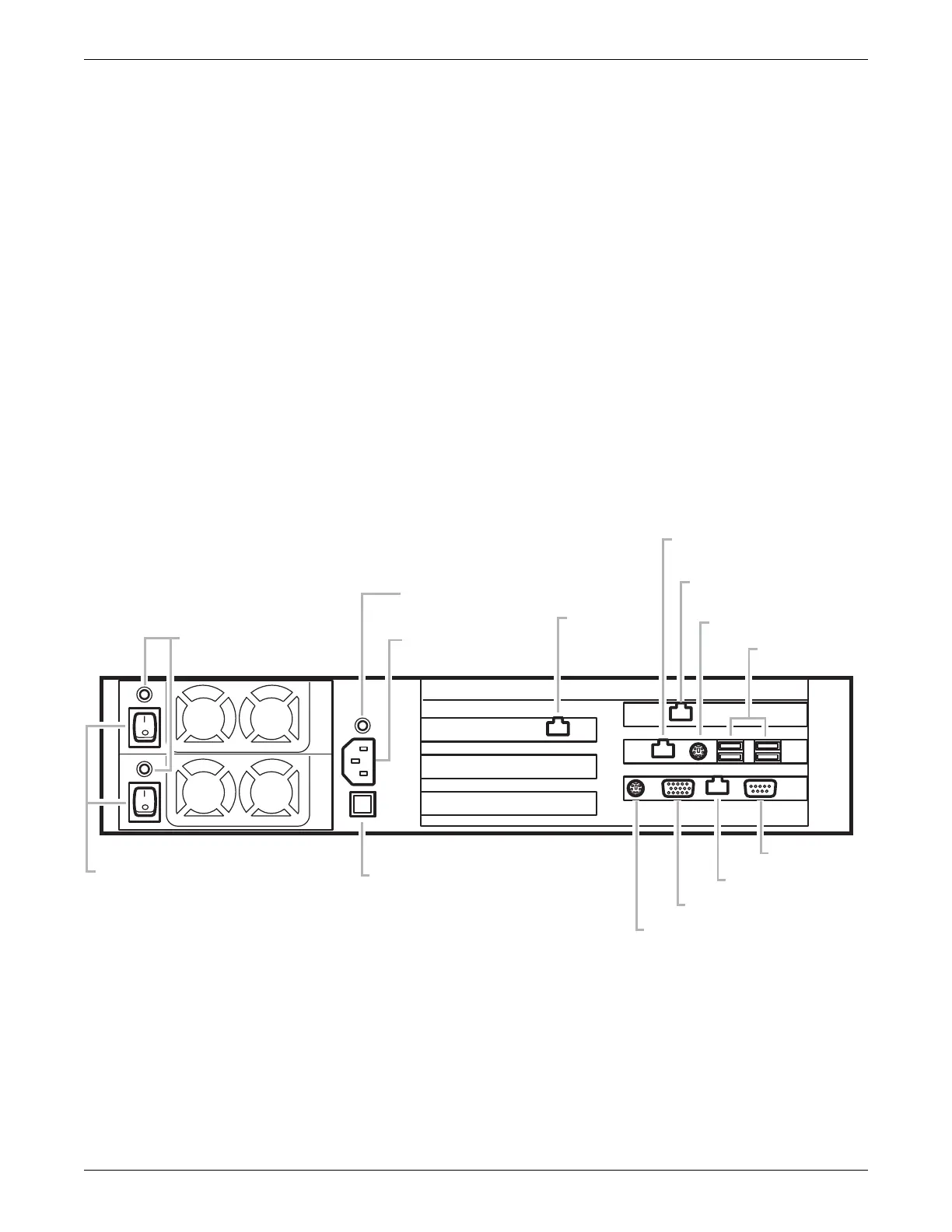

Views
Back
001a
Power supply
status LEDs
Power supply
switches
Power failure
indicator
Unity
Network IX
network
connection
Power fail alarm
silence
PS/2 port (MOUSE)
USB ports
PS/2 port (KEYBOARD)
VIDEO
COM 1
Unity Network MC
network connection
Unity Network RX
Network connection
ADMIN connection
Power cord
connector
