2-6 ApexPro™ Telemetry 2001989-203C
Equipment overview
Specific information associated with rectifying conditions indicated by an audible
alarm is in service status indicators. See Service status indicators on page 6-8.
Indicators

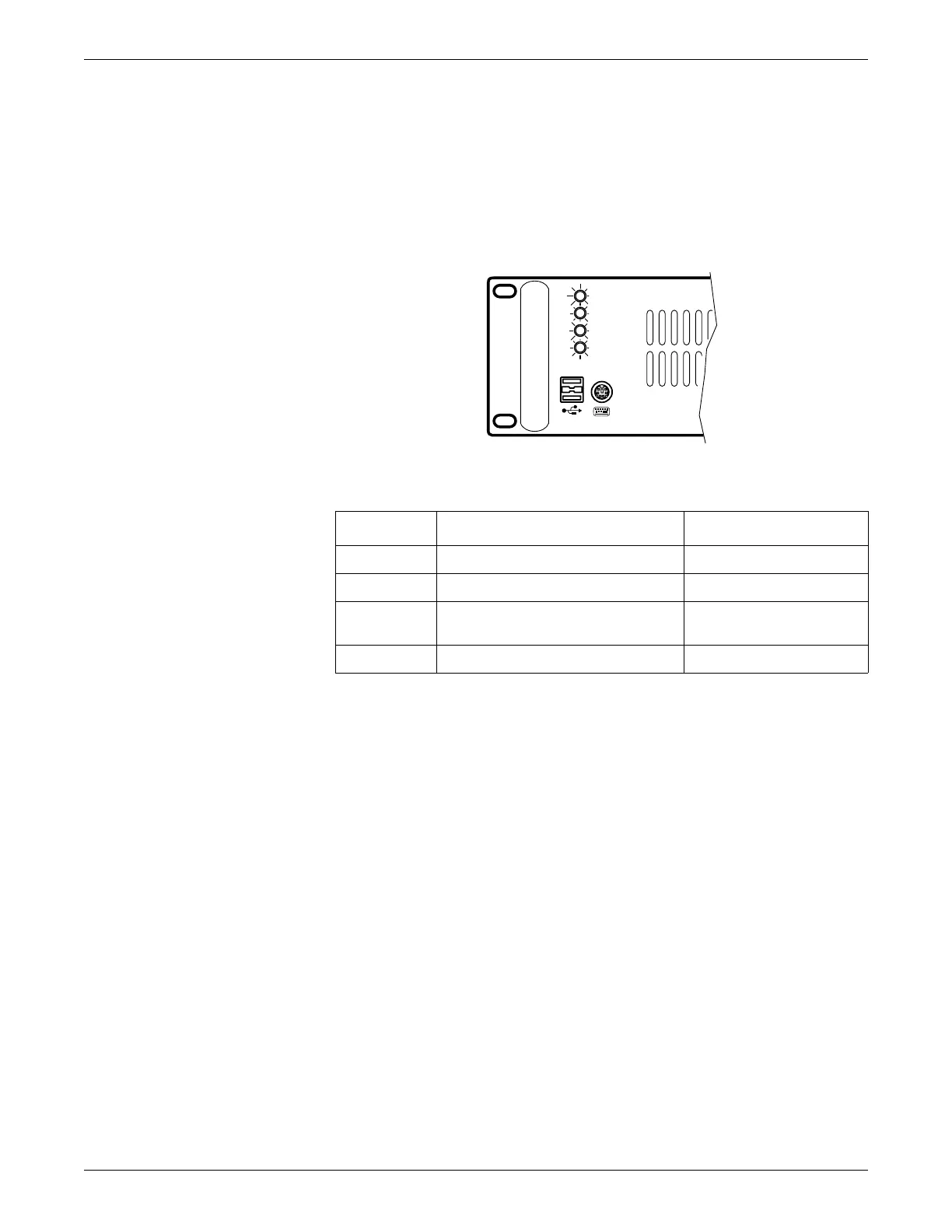

LED indicators
004A
The LED indicators on the left side of the ATS front panel serve to show system
status, as described in the following table:
NOTE
Red LEDs indicate critical system conditions requiring immediate service
attention. They are accompanied by an audible alarm buzzer. For specific
information associated with rectifying conditions indicated by red LED status
indicators. See Service status indicators on page 6-8.
Webmin indicators
The Webmin application provides many utilities for monitoring real-time ATS
settings, conditions and values. See Troubleshooting on page 6-1.
Unity Network description/connection
The ATS, running the ApexPro Host software, is a telemetry component of the Unity
Network family of devices. It is also the physical connection point between ApexPro
telemetry devices and the CIC Pro center server.
POWER
HDD
TEMP
FAN
LED Red Green/Orange
POWER Redundant power supply failure. Normal
HDD N/A Indicates hard drive access
TEMP Indicates overheating above maximum
allowable temperature.
Normal
FAN Indicates cooling fan failure. Normal
