IRECTION FR091521, REVISION 1 VIVID S60N/VIVID S70N BASIC SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-129
PRELIMINARY
8-5-16-5 TRX32 Boards Installation Procedure
NOTE: This procedure applies to replacement of one or more of the defective boards (TRX32).
1) Gently slide a new TRX32 Board into the retaining grooves located on the CFE Board, pressing the
board firmly downwards until it is in position as shown in Figure 8-157.
2) Ensure that the TR32X Board is firmly seated, then press the TRX32 Board firmly downwards
allowing the white plastic holder clips to close at each end.
3.) Repeat step 1 and step 2 for each of the other TRX32 Boards.
4.) Close the metal cover and fasten the retaining screws - see Figure 8-153 on page 8-127.
5) Return the Front End door assembly to the system, reconnect the cables (previously disconnected),
close the cabinet cage door and fasten securely with the two latches:
6) Refit the following covers: front, DVD, right side, left side
When performing these procedures, take precautions to avoid damage
of electrostatic-sensitive components. Always have the ESD wrist strap
connected either to the DIB chassis or to the GND plug at the rear of
the scanner, and to your hand.

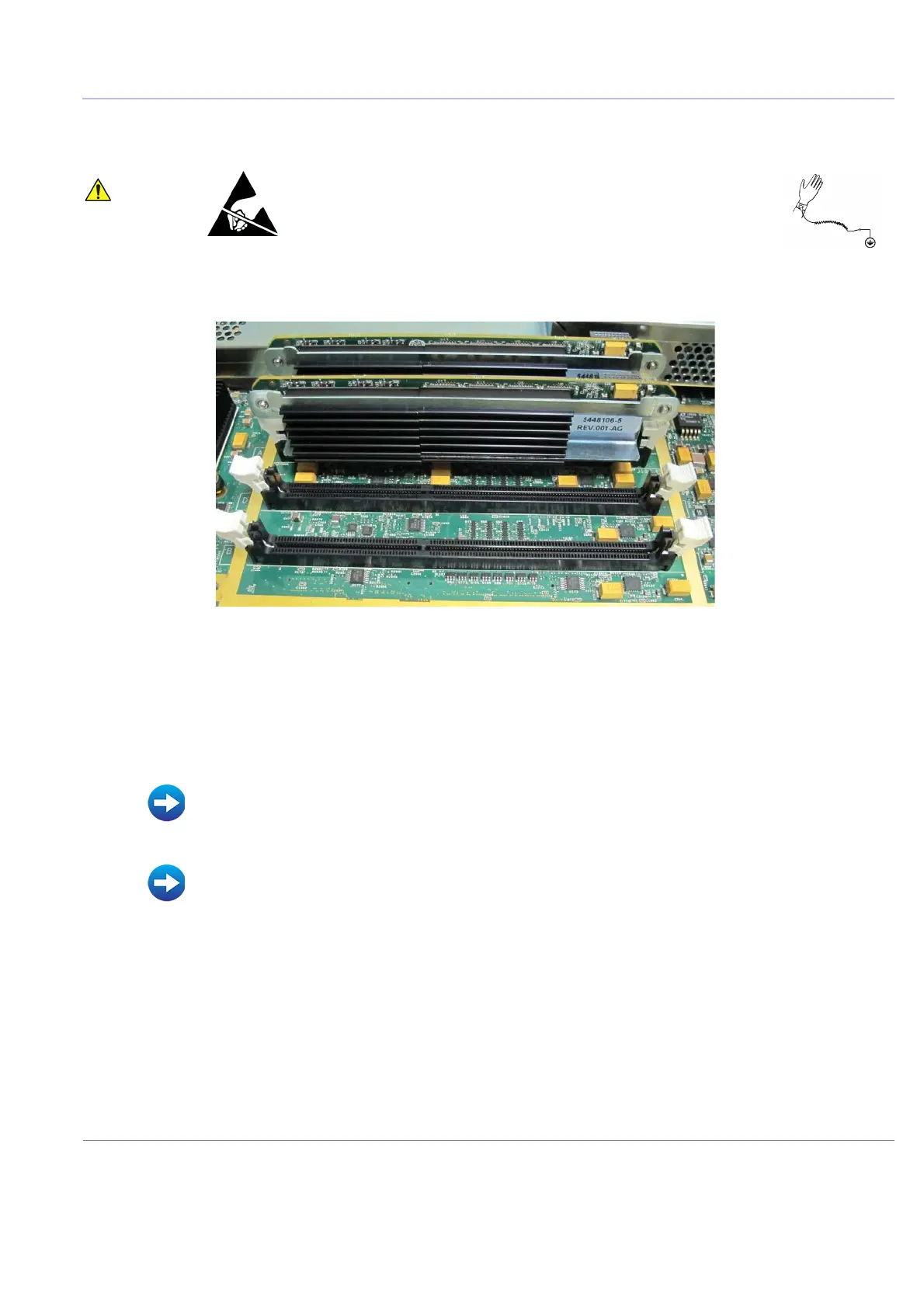

Figure 8-157 TR32X Grooves and Holders on the CFE Board
• Front End Door Assembly Closing and Installation Procedure on page 8 - 87
• Front Cover Installation Procedure on page 8 - 19
• DVD Cover Installation Procedure on page 8 - 12
• Right Side Cover Installation Procedure on page 8 - 10
• Air Inlet (Left Side) Cover Installation Procedure on page 8 - 8
