Icom i9100 User Manual

109
8
DV MODE OPERATION
q Select the desired frequency band. (p. 35)
w Push [VFO/MEMO] to select the VFO mode.
e Push [DV•DR] to select the DV mode.
r Set the repeater’s transmit frequency, duplex direc-
tion and offset. (pp. 37, 65, 163)
t Push [MENU] one or more times to display the “M3”
screen (Menu 3).
y Push [CS](F-1) to display the “CS” screen (Call Sign).
u Push [Z](F-1) to display the “UR” screen, and ro-
tate [MAIN DIAL] to select UR call sign, then push
[SET](F-4).
 •Firstselectingthecall sign memory groups by pushing
[TS•GRP]or[GRP](F-5)makesitmoreconvenient.
• When calling CQ : Select a link repeater call sign for
sending CQ
• When calling an individual station
: Select the station’s call sign
i Push [Z](F-1) to display the “R1” screen, and rotate
[MAIN DIAL] to select the access repeater call sign,
then push [SET](F-4).
 •Firstselecting therepeatercall sign groupmakes it
more convenient, if you have programmed repeaters
into Groups. (p. 93)
 •Push[NAME](F-4)totogglethecallsignandrepeater
name display.
o Push [Z](F-1) to display “R2,” and rotate [MAIN
DIAL] to select your gateway repeater call sign, then
push [SET](F-4).
!0 Push [Z](F-1) todisplay“MY,”andsetyourowncall
sign if necessary, then push [SET](F-4).
!1 Push [PTT] on the microphone to transmit. (or
[TRANSMIT] on the transceiver)
 •TheMAINBandTX/RXindicatorlightsred.
!2 Release [PTT] to receive. (or push [TRANSMIT]
again)
 •Ifanotherstationsreplies,it’scallsignwillbestoredin
the receive log.
 •Receivedcallsignscanbeautomaticallystoredintothe
received call record. See page 95 for details.
After setting, rotate [M-CH] to select a memory
channel, then hold down [MW] for 1 second to save
this temporary programmed data into the channel.
[TRANSMIT]
MAIN Band
TX/RX indicator
[MAIN DIAL]
[DV•DR][MENU]
[VFO/MEMO][SET][Z] [GRP]
UR
Ú
≈ UR
CLR
JG3YMK
EDT NAME GRP
R1
Ú
≈ R1
CLR
JP3YHL
EDT NAME GRP
UR
Ú
≈ GRP1
⁄ JP1YIU
SET GRP
Rotate [MAIN DIAL]
R2
Ú
≈ R2
CLR
JP3YHH G
EDT NAME GRP
MY
Ú
≈ MY1
CLR
JA3YUA ⁄
EDT NAME
UR
Ú
≈ GRP1
CLR
⁄
JP1YIU
EDT NAME GRP
• Calling CQ through the gateway
• Calling CQ
Repeater q ： JP3YHL
Repeater e ： JP3YHH G
Repeater u ： JP1YIU
CQ
q w e r
t y u i
My call sign：
JA3YUA
Gateway
Gateway
Area
Zone A
Zone B
• Calling an individual station
Repeater q ： JP3YHL
Repeater e ： JP3YHH G
Repeater u ： JP1YIU
Gateway
Gateway
Area
Zone A
Zone B
q w e r
t y u i
My call sign：
JA3YUA
Station call sign：JM1ZLK
■ Repeater operation in the VFO (Continued)

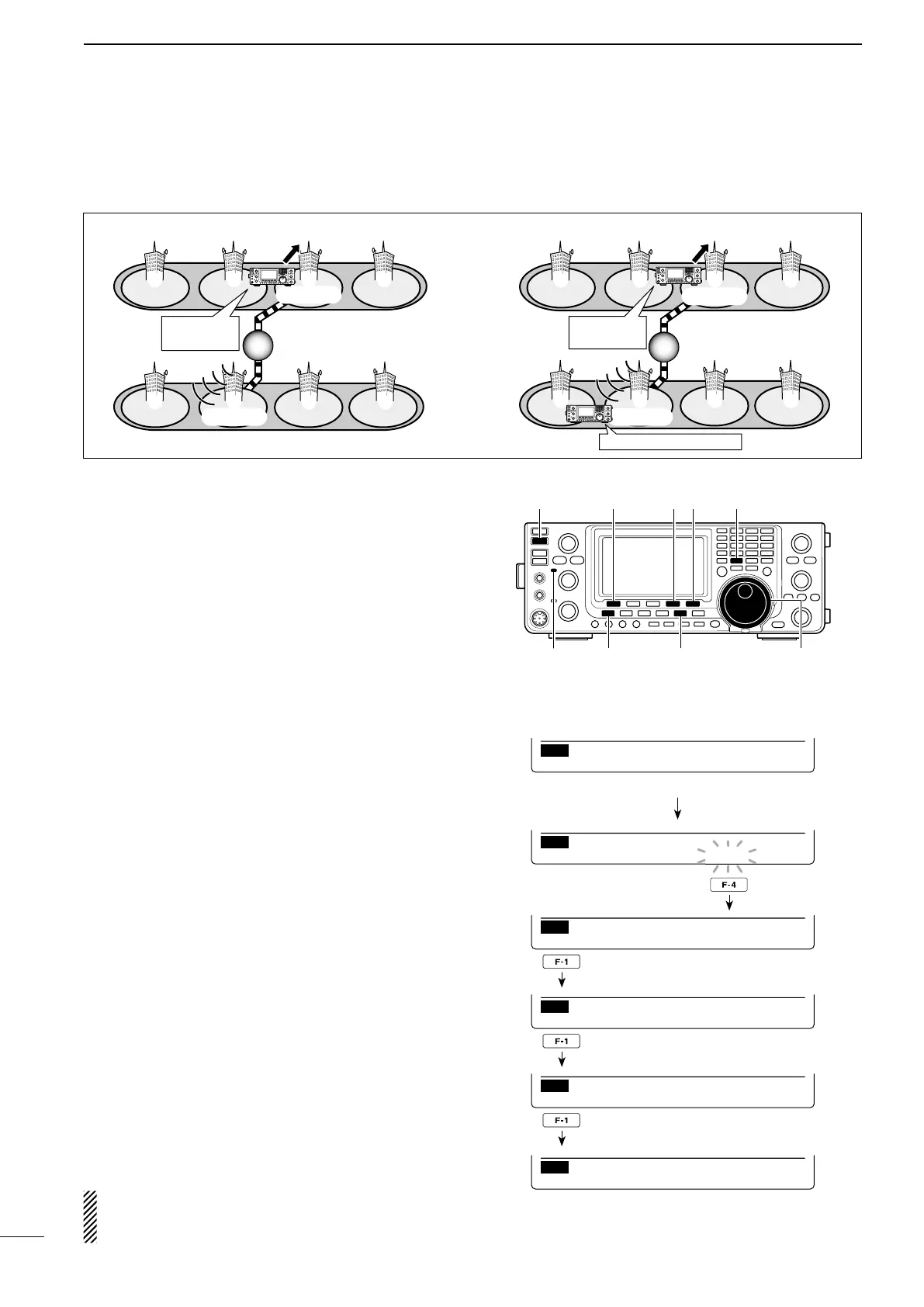

D Making a CQ call or a call to an individual station through gateway repeaters (Gateway call)
