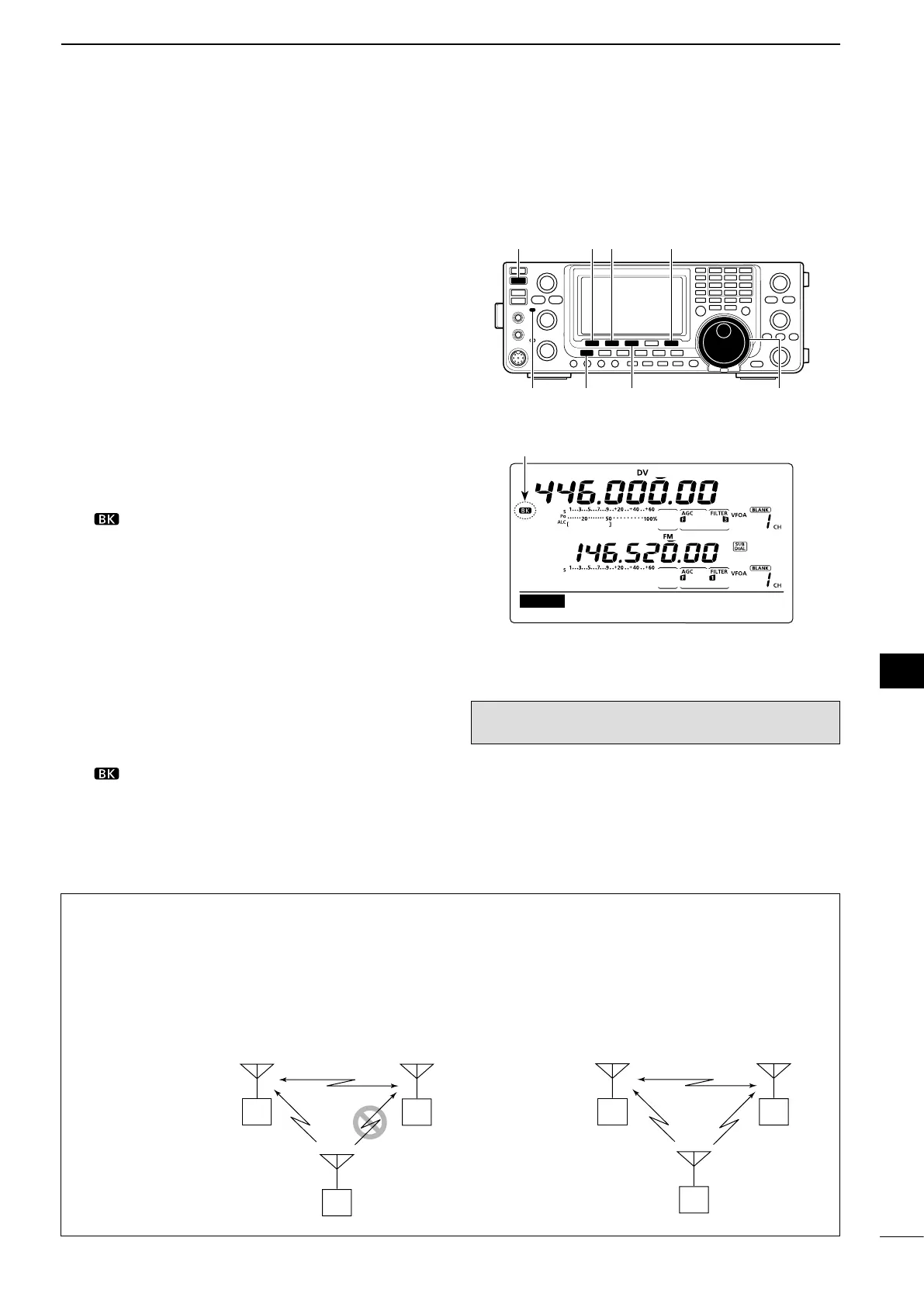

■ BK mode communication
The BK (Break-in) function allows you to break into a
conversation, where the two other stations are com-
municating with call sign squelch enabled.
q While receiving another station’s communication in
the DV mode, p ush [MENU] one or more times to
display the “M3” screen (Menu 3).
 •IntheDRmode,p ush [MENU] once or twice to select
the “D1” screen.
w Hold down [R>CS](F-3) for 1 second to set the
other station’s call sign.
 •Whenacallsignhasnotbeenreceivedcorrectly,error
beeps sound, and no call sign is set. Try to capture the
call sign of the signal again, or enter it manually.
e P ush [DSET](F-5) to display the “DSET” screen.
r P ush [SET](F-5) to enter the DV Set mode.
t Push [Y](F-1) or [Z](F-2) to select “BK.”
y Rotate [MAIN DIAL] to turn ON the BK function.
 •“ ” appears.
u Push [MENU] to return to the “DSET” screen.
i When both stations are in standby, push [PTT] on
the microphone to transmit. (or push [TRANSMIT]
on the transceiver)
 •Theprogrammedcallsignstationreceivesthebreak-in
call as well as your call sign.
 •TheMAINBandTX/RXindicatorlightsred.
o Release [PTT] to receive. (or push [TRANSMIT]
again)
Wait for a reply call from the station who received
the break-in call.
!0 After receiving the reply call, communicate nor-
mally.
 •“ ” blinks when receiving a break-in call.
!1 To cancel the BK mode communication, turn OFF
the BK function in the DV Set mode as shown in
steps r through y.
∫ 18 √ ON
SET
BK
[TRANSMIT]
MAIN Band
TX/RX indicator
[MAIN DIAL]
[MENU] [R>CS]
[DSET]/[SET][][]
When the BK function is ON.
Appears
How to use Break-in?
While using digital call sign squelch, the squelch never opens (no audio sounds) even if a call is received, unless
yourowncallsign(“MY”)isspecied.(p.93)
However, when a call including the “BK ON” signal (break-in call) is received, the squelch will open and audio
sounds even if the call is specified for another station.
Station A Station B
Station C
• Station C calling to Station A with “BK OFF”
Station A Station B
Station C
• Station C calling to Station A with “BK ON”
Station A and B
are communicating
using the digital
call sign squelch.
Station A and B
are communicating
using the digital
call sign squelch.
Station B never hears that
Station C is calling Station A.
Station B also hears that
Station C is calling Station A.
NOTE: The BK function is automatically turned OFF
when transceiver is turned OFF.
