Goodrive270 series VFD for fan and pump Product overview
-11-

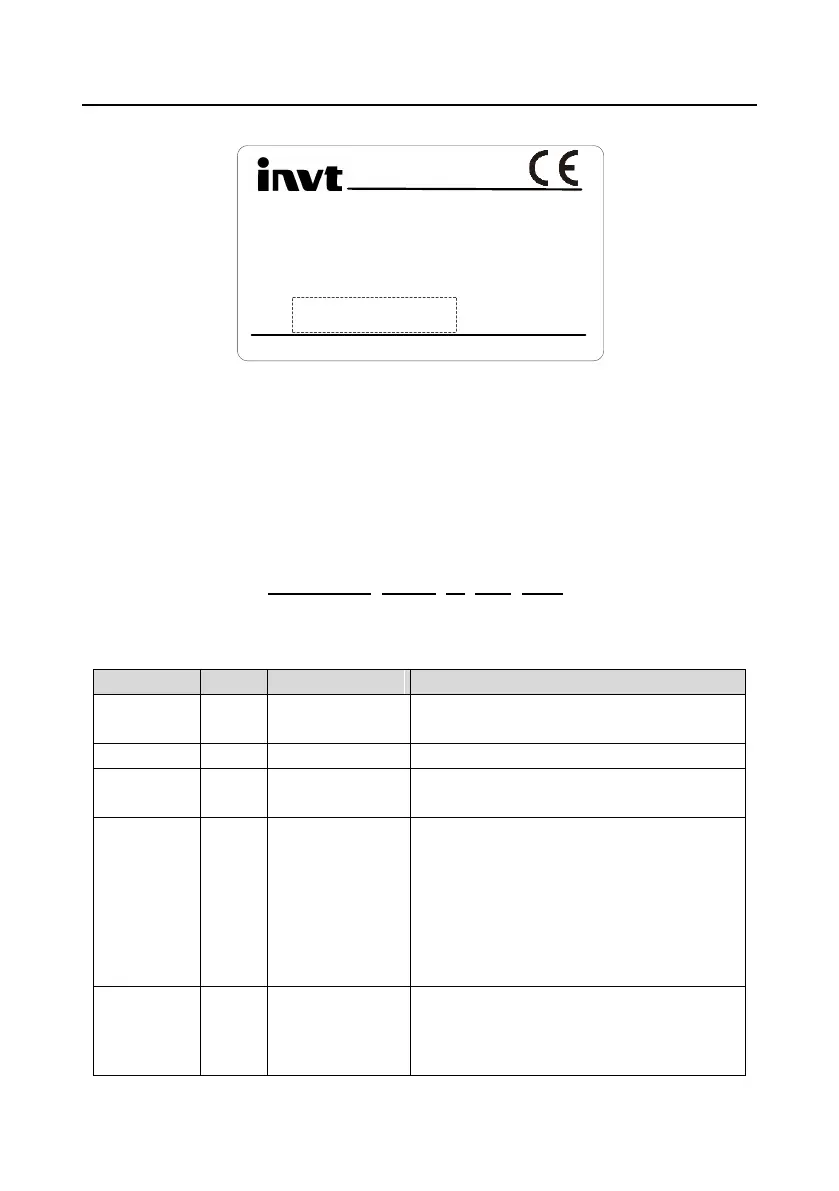

3.4 Product nameplate
Shenzhen INVT Electric Co., Ltd.
Model: GD270-160-4 IP20
Power(Output): 160kW
Input: AC 3PH 380V~480V 310A 47Hz~63Hz
Output: AC 3PH 0V~Uinput 305A 0Hz~400Hz
S/N: Made in China
Figure 3-3 Product nameplate
Note: The preceding shows a standard product nameplate example. The nameplate has markings
such as "CE", "TUV", and "IP20" depending on the actual certification result.
3.5 Model designation code
A model designation code contains product information. You can find the model designation code on
the VFD nameplate.
GD270-160-4-L1-C3
â‘
â‘¡ â‘¢ â‘£
⑤
Figure 3-4 Model description
Product series
abbreviation
Product series
abbreviation
GD270: Goodrive270 series VFD for fan and
pump
4: AC 3PH 380V–480V
Rated voltage: 380V
Default: Empty
L1: with built-in DC reactor, applicable to
11–500kW models.
L3: with built-in DC reactor and output AC
reactor, applicable to 220kW and higher models.
Note: DC reactors are standard parts for
400–500kW models.
Built-in filter
configuration
Built-in filter
configuration
Empty:
with built-in C3 filter applicable to 160kW
–500kW
without built-in C3/C2 filter applicable to
To Next Page
