5.4.5 Editing a parameter list
The parameters in the parameter list in stopped state can be added as needed (through the menu of
user defined home parameters), and the list can also be edited such as "Move up", "Move down",
"Delete from the list", and "Restore default". The edit function is shown in the following.
01: GD270
16:02:35
Move up
Delete from the list
16:02:35
Fwd
Local Ready
Stopped-state parameters
Running-state parameters
01: GD270
16:02:35
P17.00：Set Freq
P17.11：DC Bus Volt
P17.12：DigiInputTrmlState
P17.13：DigiOutpTrmlState
P17.23：PID Ref Val
P17.24：PID Fdbk Val
01: GD270
Fwd
Local Ready
Fwd
Local Ready
Move down
Back Edit OKBack Home Sele
Back Home Sele

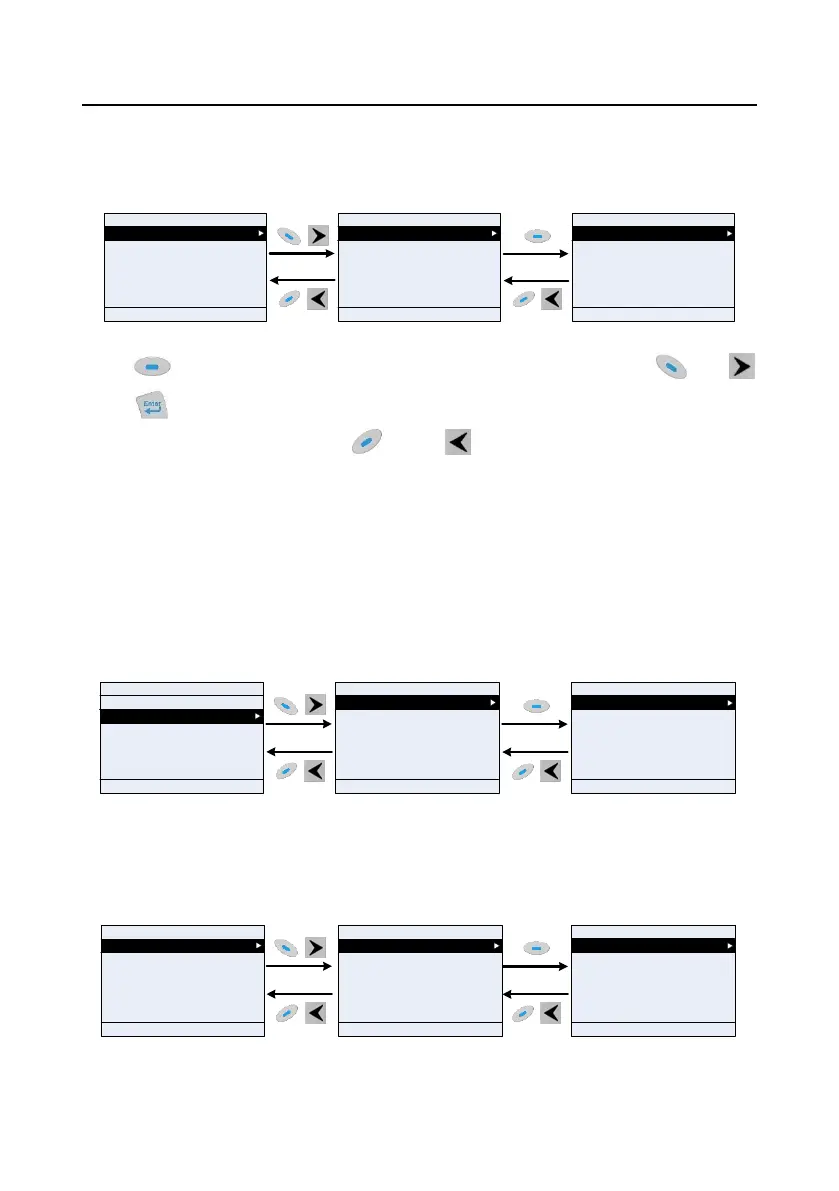

Figure 5-16 List edit 1
Press key to enter edit interface, select the operation needed, and press the key,
key or key to confirm the edit operation and return to the previous menu (parameter list), the
returned list is the list edited. If the key or key is pressed in edit interface without
selectingan edit operation, it will return to the previous menu (parameter list remain unchanged).
Note: For the parameter objects in the list header, move-up operation will be invalid, and the same
principle can be applied to the parameter objects in the list footer; after deleting a certain parameter,
the parameter objects under it will be moved up automatically.
The items in the parameter list in running state can be added as needed (through the menu of user
defined home parameters), and the list can also be edited such as "Place top", "Move up", "Move
down", "Delete from the list", and "Restore default parameters". The edit function is shown in the
interface below.
01: GD270
16:02:35
01: GD270
16:02:35
Stopped-state parameters
Running-state parameters
Fwd
Local Ready
Fwd
Local Ready
Move up
Delete from the list
Move down
16:02:35
P17.01: OutpFreq
P17.00: Set Freq
P17.11: DC Bus Volt
P17.03: Outp Volt
P17.04: Outp Cur
P17.05: Motor Speed
01: GD270
Fwd
Local Ready
Back Home Sele
Back Edit OK Back Home Sele
Figure 5-17 List edit 2
The parameters of user defined parameter setting can be added, deleted or adjusted as needed, such
as "Place top", "Move up", "Move down", "Delete from the list", and "Restore default parameters"; the
adding function can be set in a certain function code in a function group. The edit function is shown in
the figure below.
16:02:35
Fwd
Local Ready
16:02:35 Fwd
Local Ready
Move up
Delete from the list
Move down
01: GD27001: GD270
Back Home Sele Back Home Sele
Common parameter setting
Parameter setting
State monitoring/Fault record
Motor parameter autotuning
Parameter backup/Restore default
System setting
16:02:35
Edit
P00.10: Freq Set by Keypad
P00.00: Speed Ctrl
P00.11: ACC Time 1
P00.12: DEC time 1
P00.01: Run Cmd Channel
P00.13: Run Direction
01: GD270
Fwd
Local Ready
Sele
Back
Figure 5-18 List edit 3
