INVT Goodrive270 Series User Manual

Goodrive270 series VFD for fan and pump Installation guidelines
-16-
Environment
Condition
Relative
humidity (RH)
 Less than 90%
 Condensation is not allowed.
 The max. RH cannot exceed 60% in the environment where there are
corrosive gases.
Storage
temperature
-30–+60°C
Running
environment
Install the VFD in a place:
 Away from electromagnetic radiation sources
 Away from oil mist, corrosive gases, and combustible gases
 Without the chance for foreign objects such as metal powder, dust, oil and
water to fall into the VFD (do not install the VFD onto combustible objects
such as wood)
 Without radioactive substances and combustible objects
 Without hazard gases or liquids
 With low salt content
 Without direct sunlight
Altitude
 Lower than 1000m
 When the altitude exceeds 1000m, derate 1% for every increase of 100m.
Vibration
Max. ACC: 5.8m/s
2
(0.6g)
Installation
direction
Install the VFD vertically to ensure good heat dissipation performance.

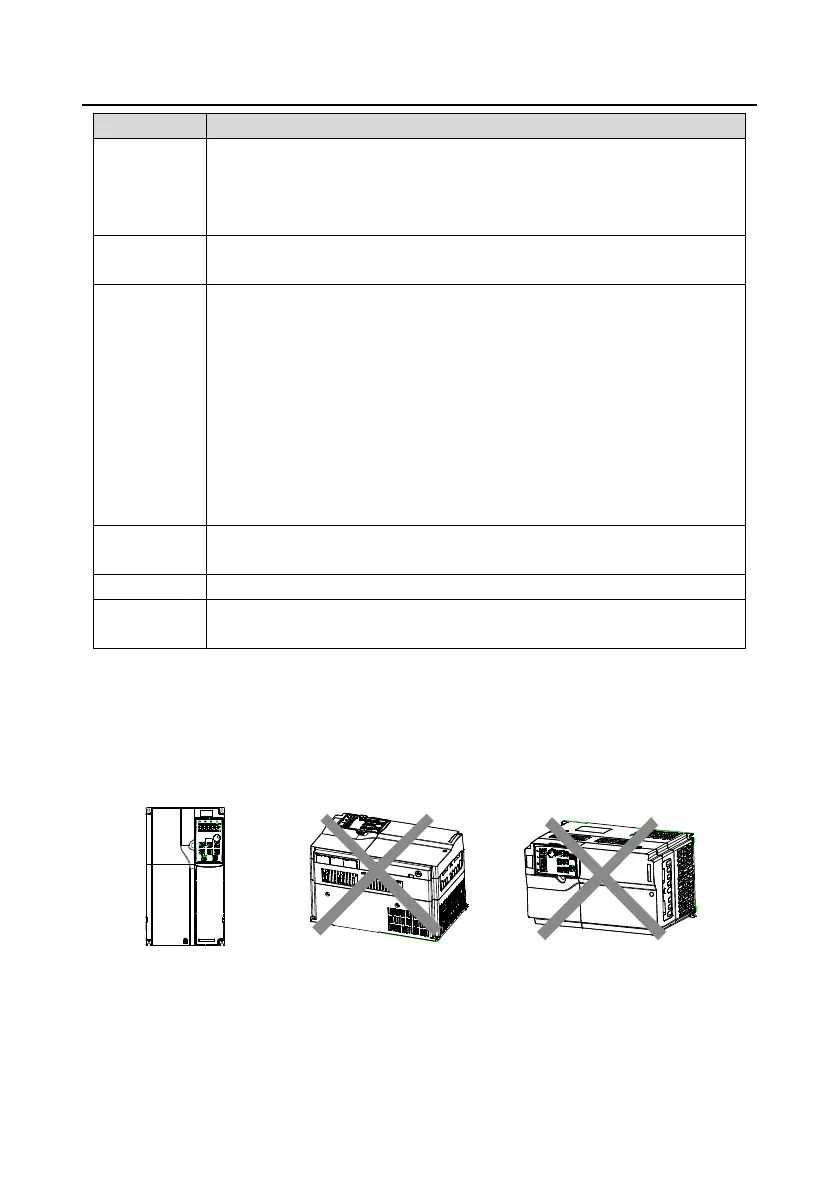

4.2.2 Installation direction
The VFD can be installed on the wall or in a cabinet.
The VFD must be installed vertically. Check the installation position according to following
requirements. For details about the outline dimensions, see Appendix C Dimension drawings.
OK
NG
NG
a. Vertical installation b. Horizontal installation
c. Lateral installation
Figure 4-1 VFD installation direction
4.2.3 Mounting method
The VFD mounting method varies depending on the size. The mounting methods include wall
