INVT Goodrive270 Series User Manual

Goodrive270 series VFD for fan and pump Basic operation guidelines
-60-
5.4.11 Autotuning motor parameters
You can choose Menu > Motor parameter autotune and press key, key or key to
enter motor parameter autotuning interface. However, before entering the motor parameter
autotuning interface, you must set the motor nameplate parameters correctly. After entering the
interface, select a motor autotuning type to carry out motor parameter autotuning. In motor parameter
autotuning interface, you can press key or key to return to the previous menu.
Complete para rotary autotune
Complete para static autotune
Partial para static autotune
01: GD270
16:02:35
Fwd
Local Ready
01: GD270
16:02:35
Ensure motor nameplate parameters are set
correctly.
Fwd
Local Ready
Back Add OK Back Home OK
16:02:35
Common parameter setting
Parameter setting
State monitoring/Fault record
Motor parameter autotuning
Parameter backup/Restore default
System setting
01: GD270
Fwd
Local Ready
HomeBack
Sele

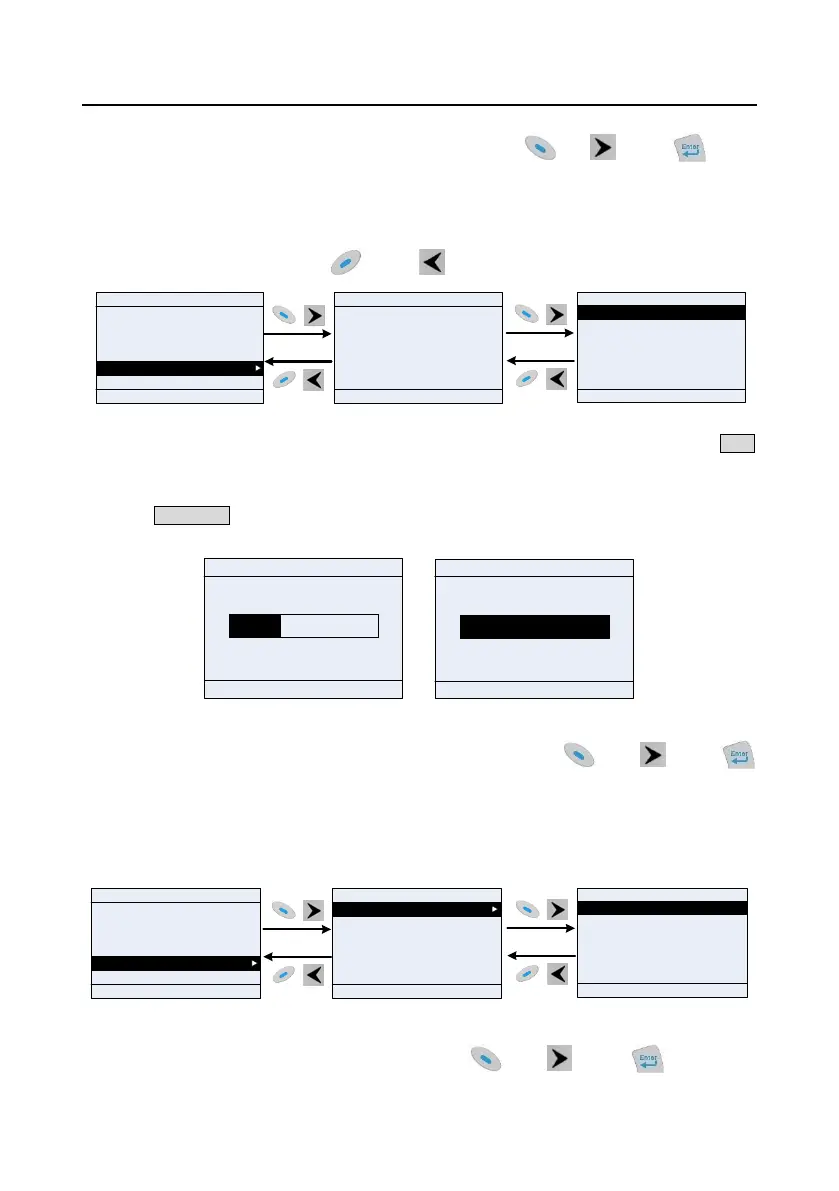

Figure 5-24 Selecting a parameter autotuning type
After selecting a motor autotuning type, enter motor parameter autotuning interface, and press RUN
key to start motor parameter autotuning. After autotuning is done, a message will pop up indicating
autotuning is succeeded, and then it will return to the main interface of stop. During autotuning, you
can press STOP/RST key to terminate autotuning; if any fault occur during autotuning, the keypad will
display a fault interface.
Autotune steps: 1
Autotuning parameters...
01: GD270
16:02:35
Fwd
Local Run
Autotune steps: 3
Parameters autotuned
01: GD270
16:02:35
Fwd
Local Run
...
Back Home Stop Back Home OK
Figure 5-25 Parameter autotuning
5.4.12 Backing up parameters
You can choose Menu > Copy parameter/Restore default, and press key, key or
key to enter the function parameter backup interface and function parameter restoration interface to
upload/download VFD parameters, or restore VFD parameters to default values. The keypad has
three different storage areas for parameter backup, and each storage area can save the parameters
of one VFD, which means the keypad can save parameters of three VFDs in total.
Upload local func para to keypad
Download all func para from keypad
Download NonMotor func para from keypad
Download motor func para from keypad
01: GD270
16:02:35
Fwd
Local Ready
01: GD270
16:02:35
MemArea 1: BACKUP01
MemArea2: BACKUP02
MemArea3: BACKUP03
Fwd
Local Ready
Restore FuncParam to default
Back Home SeleBack Edit Sele
16:02:35
Common parameter setting
Parameter setting
State monitoring/Fault record
Motor parameter autotuning
Parameter backup/Restore default
System setting
01: GD270
Fwd
Local Ready
HomeBack
Sele
Figure 5-26 Parameter backup
5.4.13 System settings
You can choose Menu > System settings, and press key, key or key to enter
