Appendix D Optional peripheral accessories
D.1 What this chapter contains
This chapter describes how to select optional accessories for the VFD.
D.2 Wiring of peripheral accessories

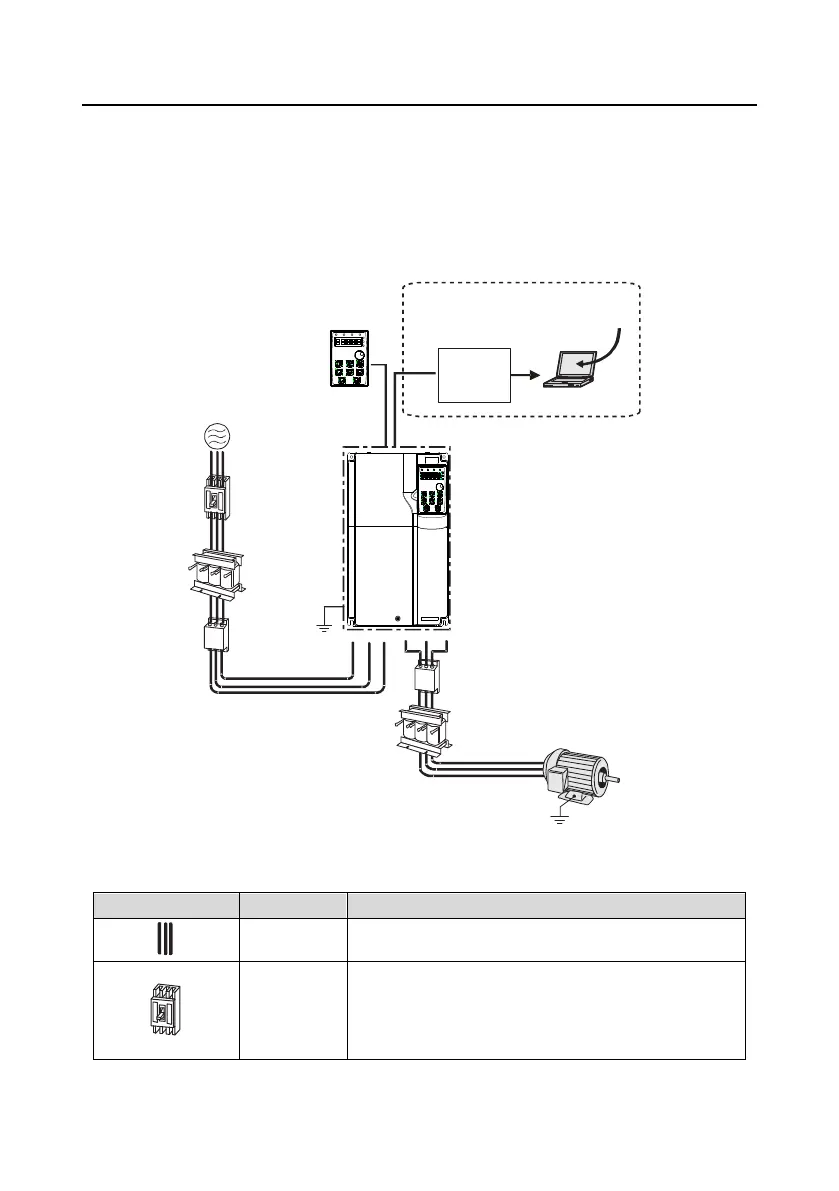

The following figure shows the external wiring of the VFD.
Keypad
PC
Adapter
(cable)
Output
reactor
Motor
Ground
Upper PC
software
485+
485-
Standard
Output filter
Power
supply
Breaker
Input filter
Input reactor
Ground
Note: You can choose the optional built-in DC reactor, which will be installed at the factory before
delivery.
Name
Description
Cable
Accessory for signal transmission.
Breaker
Device for electric shock prevention and protection
against short-to-ground that may cause current leakage
and fire. Select residual-current circuit breakers (RCCBs)
that are applicable to VFDs and can restrict high-order
