Goodrive270 series VFD for fan and pump Expansion card
-322-
Category
Terminal
Name
Description
through J3 before delivery.
Relay output
RO3A
NO contact of
relay 3
 Contact capacity: 3A/AC250V, 1A/DC30V
 Cannot be used as high frequency digital
output.
RO3B
NC contact of
relay 3
RO3C
Common
contact of relay
3
RO4A
NO contact of
relay 4
RO4C
Common
contact of relay
4

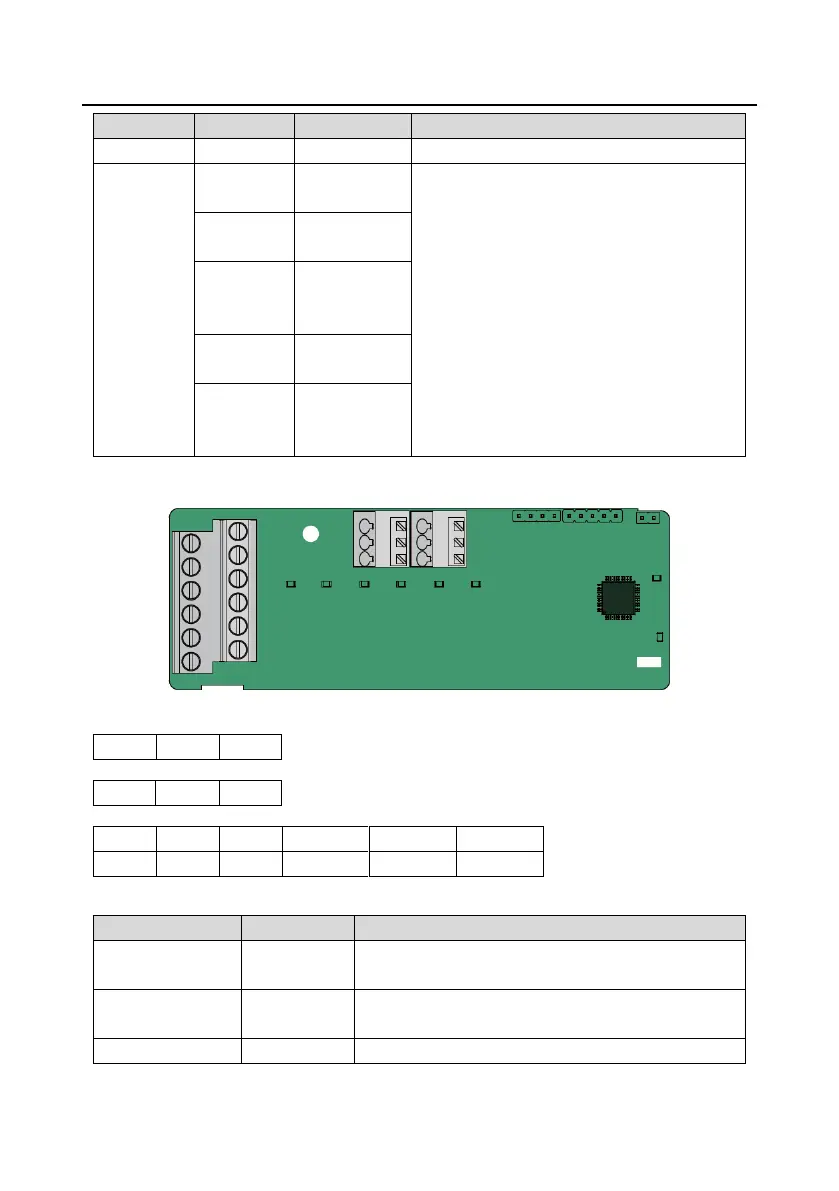

A.4.2 EC-IO503-00
The terminals of EC-IO503-00 are arranged as follows:
COM
S9
S10
COM
PW
+24V
RO5A
RO5C
RO6A
RO6C
RO7A
RO7C
RO8A
RO8C
RO9A
RO9C
RO10A
RO10C
Indicator definition:
Indicator
Definition
Function
LED1
Status
indicator
On: RO5 is closed.
Off: RO5 is opened.
LED2
Status
indicator
On: RO6 is closed.
Off: RO6 is opened.
LED3
Status
On: RO7 is closed.
