Goodrive270 series VFD for fan and pump Expansion card
-319-
Figure A-3 Expansion card installation procedure
A.3 Wiring
1. Ground a shielded cable as follows:
Grounding position of the
shielded cable
Grounding position of the
shielded cable
Figure A-4 Expansion card grounding cable connection
2. Wire an expansion card as follows:
hole cover
cover for DP head
applied
snap position to avoid
EC wiring schematic
Bind wires to sideward
wire disconnection or
Remove the hole
Connect DP
EC DP head connection
Remove wire crossing
Connect the cable
Network cable connection
loosing when force
connector

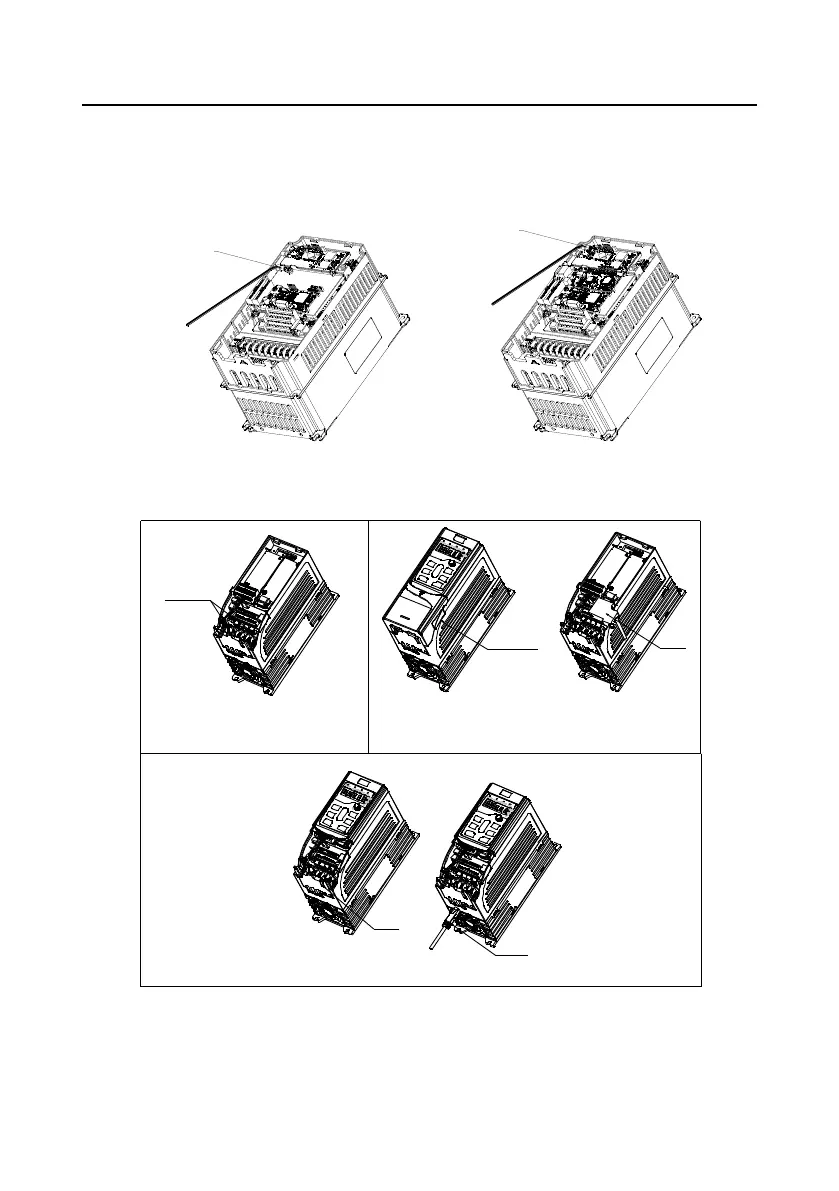

Figure A-5 Expansion card wiring for 1.5–7.5kW VFDs
