INVT Goodrive270 Series User Manual

Goodrive270 series VFD for fan and pump Dimension drawings
-337-
VFD model
Outline dimensions
(mm)
Mounting hole
distance (mm)
Hole
diameter
Fixing
screw
W1
H1
D1
H2
W2
D2
18.5–22kW
169
320
214
308
154
/
ø 6
M5
30–37kW
200
341
214
328.5
185
/
ø 6
M5
45kW
250
400
228
380
230
/
ø 6
M5
W1
H1
H2
W3
W2
d
D1

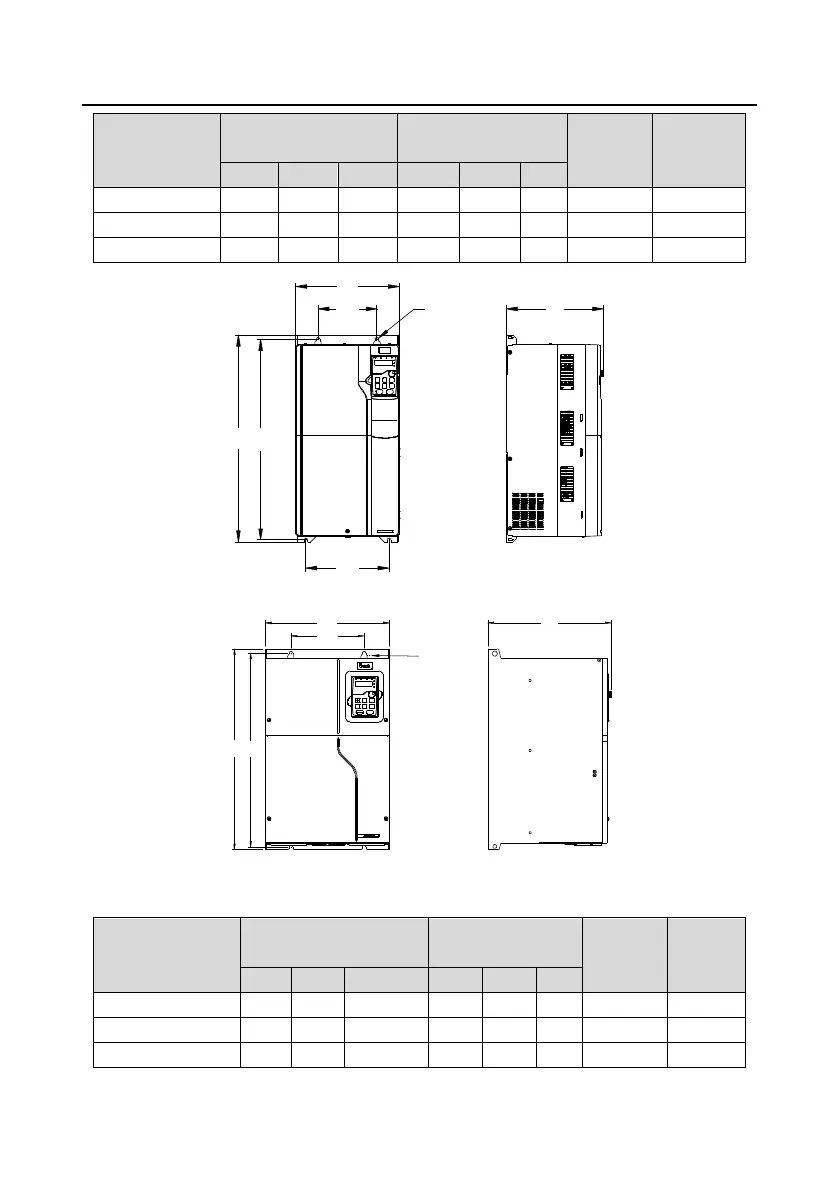

Figure C-6 380V 55–90kW VFD wall-mounting diagram
D1W1
H1 H2
W2
d
Figure C-7 380V 110–200kW VFD wall-mounting diagram
Table C-2 380V 55–200kW VFD wall-mounting dimensions
VFD model
Outline dimensions
(mm)
Mounting hole
distance (mm)
Hole
diameter
Fixing
screw
W1
H1
D1
H2
W2
W3
55–90kW
282
560
264
542
160
226
ø 9
M8
110–132kW
338
554
338
534
200
/
ø 9.5
M8
160–200kW
338
825
398
800
260
/
ø 11
M10
