JUKI RS-1 User Manual

Maintenance Guide
5-18

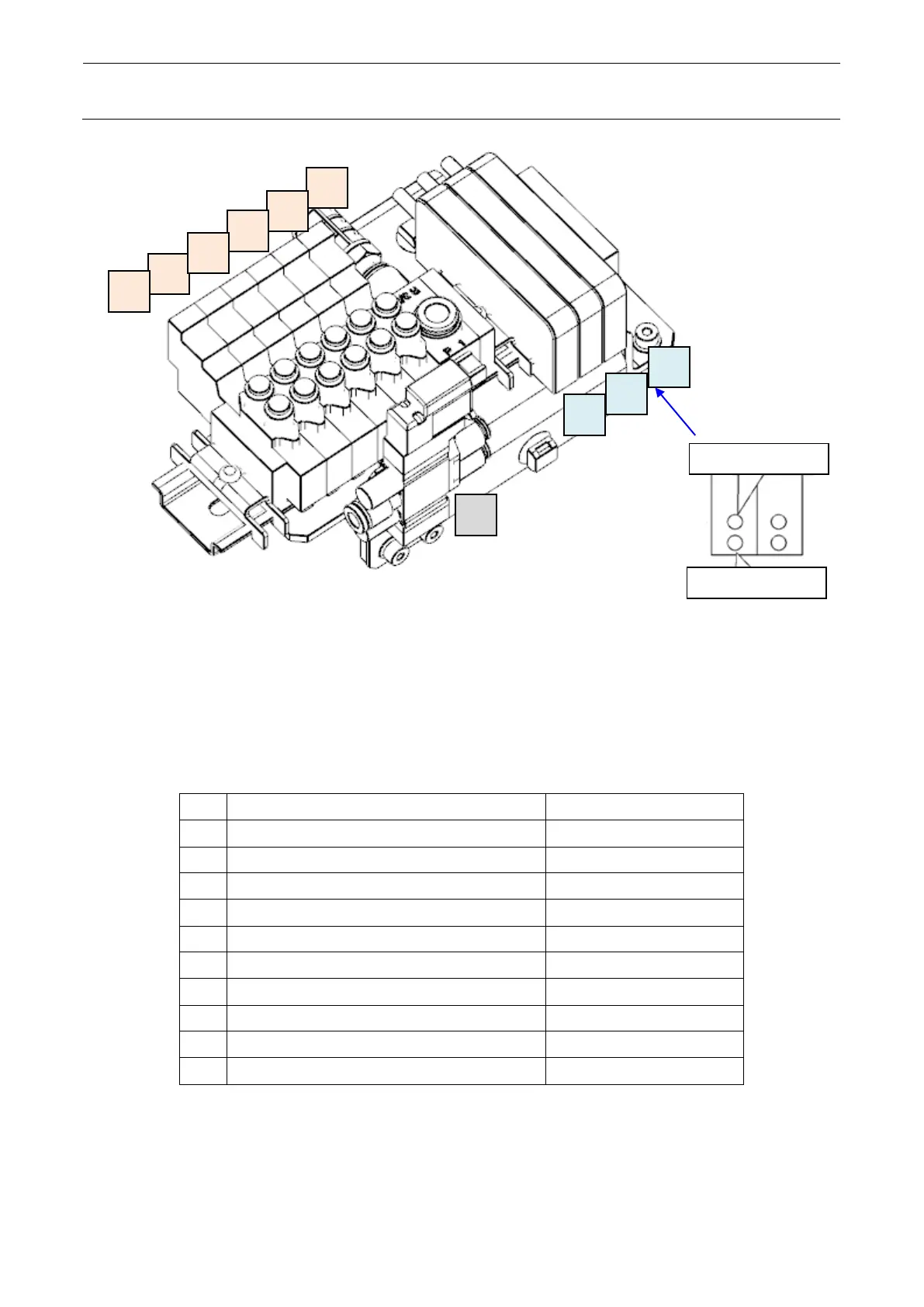

Figure 5-7-3-3 Amplifier Unit Mounting Position
Table 5-7-3-2 Amplifier, solenoid valve name
No. Amplifier, solenoid valve Remarks
1 For stopper
2 For side beam change-over 1
3 For side beam change-over 2
4 For BU stopper
5 For VCS change-over (Right and left) option
6 For VCS change-over (Up and down) option
7 Solenoid valve for ATC
8 Amplifier unit for C-OUT
9 Amplifier unit for WAIT 2
10 Amplifier unit for WAIT 1
①
②
③
⑤
④
⑦
⑧
⑨
⑩
⑥
Upper portion is the
front (light emission).
Lower portion is the
rear (light receiving).
