Kubota M6040 NARROW User Manual

TRANSMISSION
M6040, M7040Narrow, WSM
N3-S8

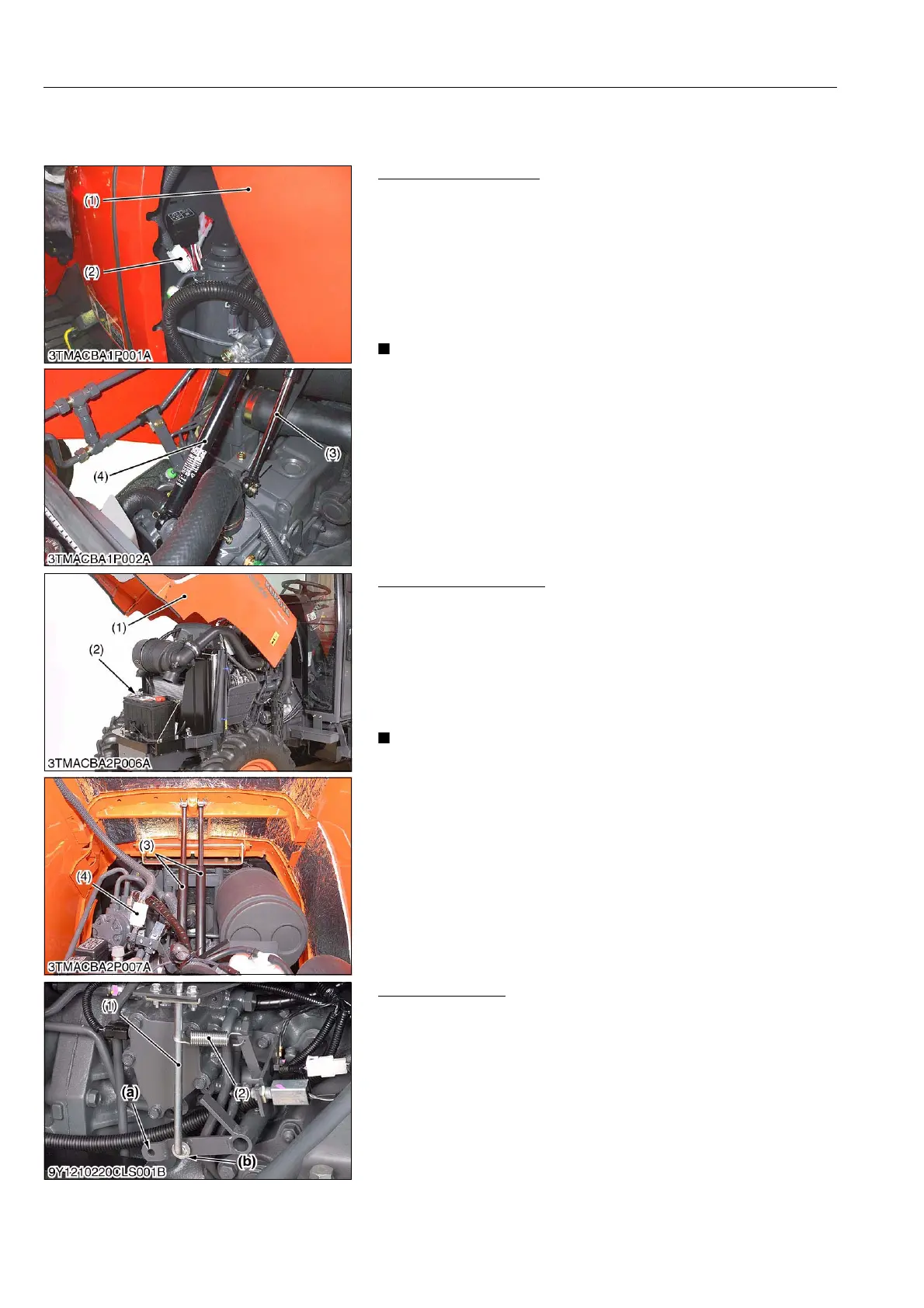

[2] PREPARATION FOR SEPARATING EACH BLOCK
(1) External Parts
Bonnet [ROPS Model]
1. Open the bonnet (1) and disconnect the battery negative
terminal.
2. Disconnect the connector (2) for head lights.
3. Disconnect the damper (3) and (4).
4. Remove the bonnet (1).
(When reassembling)
• Be sure to assemble the damper (3) and (4) to the original
position and direction.
IMPORTANT
• When disconnecting the battery cables, disconnect the
grounding cable first. When connecting, positive cable
first.
9Y1210220TRS0008US0
Bonnet [CABIN Model]
1. Open the bonnet (1) and disconnect the battery negative
terminal (2).
2. Disconnect the connector (4) for head lights.
3. Disconnect the dampers (3).
4. Remove the bonnet (1).
(When reassembling)
• Be sure to assemble the dampers (3) to the original direction.
IMPORTANT
• When disconnecting the battery cables, disconnect the
grounding cable first. When connecting, positive cable
first.
9Y1210220TRS0009US0
Ground PTO Rod
1. Remove the ground PTO rod (1) and spring.
(When reassembling)
• Be sure to assemble the ground PTO rod (1) to the hole (b).
9Y1210220TRS0023US0
(1) Bonnet
(2) Connector
(3) Damper (Shorter)
(4) Damper (Longer)
(1) Bonnet
(2) Battery Negative Terminal
(3) Damper
(4) Connector
(1) Ground PTO Rod
(2) Spring
(a) Hole to CABIN Model
(b) Hole to ROPS Model
