ELECTRICAL SYSTEM
M6040, M7040Narrow, WSM
N9-M10

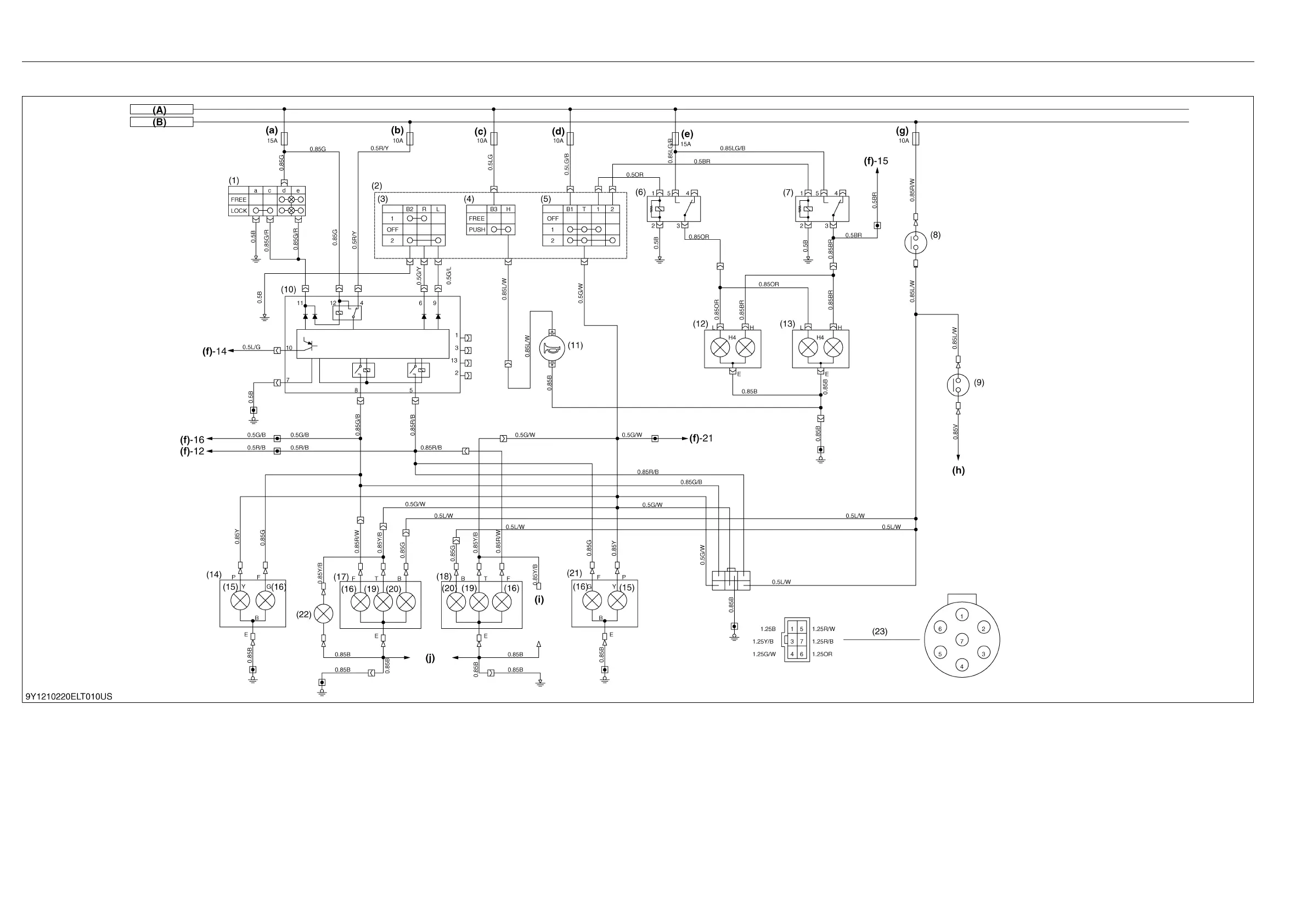

(3) Lighting System
(1) Hazard Switch (14 V, 1.4 W)
(2) Combination Light Switch
(3) Turn Switch
(4) Horn Switch
(5) Head Light Switch
(6) Head Light LO Relay
(7) Head LIght HI Relay
(8) Brake Switch R.H.
(9) Brake Switch L.H.
(10) Flasher Unit
(11) Horn
(12) Head Light L.H. (H4 12 V, 55/60 W)
(13) Head Light R.H. (H4 12 V, 55/60 W)
(14) Front Combination Lamp L.H.
(15) Position Lamp (10 W)
(16) Turn Lamp (21 W)
(17) Rear Combination Lamp L.H.
(18) Rear Combination Lamp R.H.
(19) Tail Lamp (10 W)
(20) Stop Lamp (21 W)
(21) Front Combination Lamp R.H.
(22) Lisence Lamp (10 W)
(23) Trailer Socket Assembly
(A) Key/Light
(B) Key/IG
(a) Fuse (Flasher / Hazard)
(b) Fuse (Turn Signal)
(c) Fuse (Horn)
(d) Fuse (Position Lamp / Number Lamp)
(e) Fuse (Head Light)
(f) To Meter Panel
(g) Fuse (Stop Lamp)
(h) To Diode (4WD Brake)
(i) Licence Light
(j) To Work Lamp (Ground)
To Next Page
