HYDRAULIC SYSTEM
M6040, M7040Narrow, WSM
N8-M2

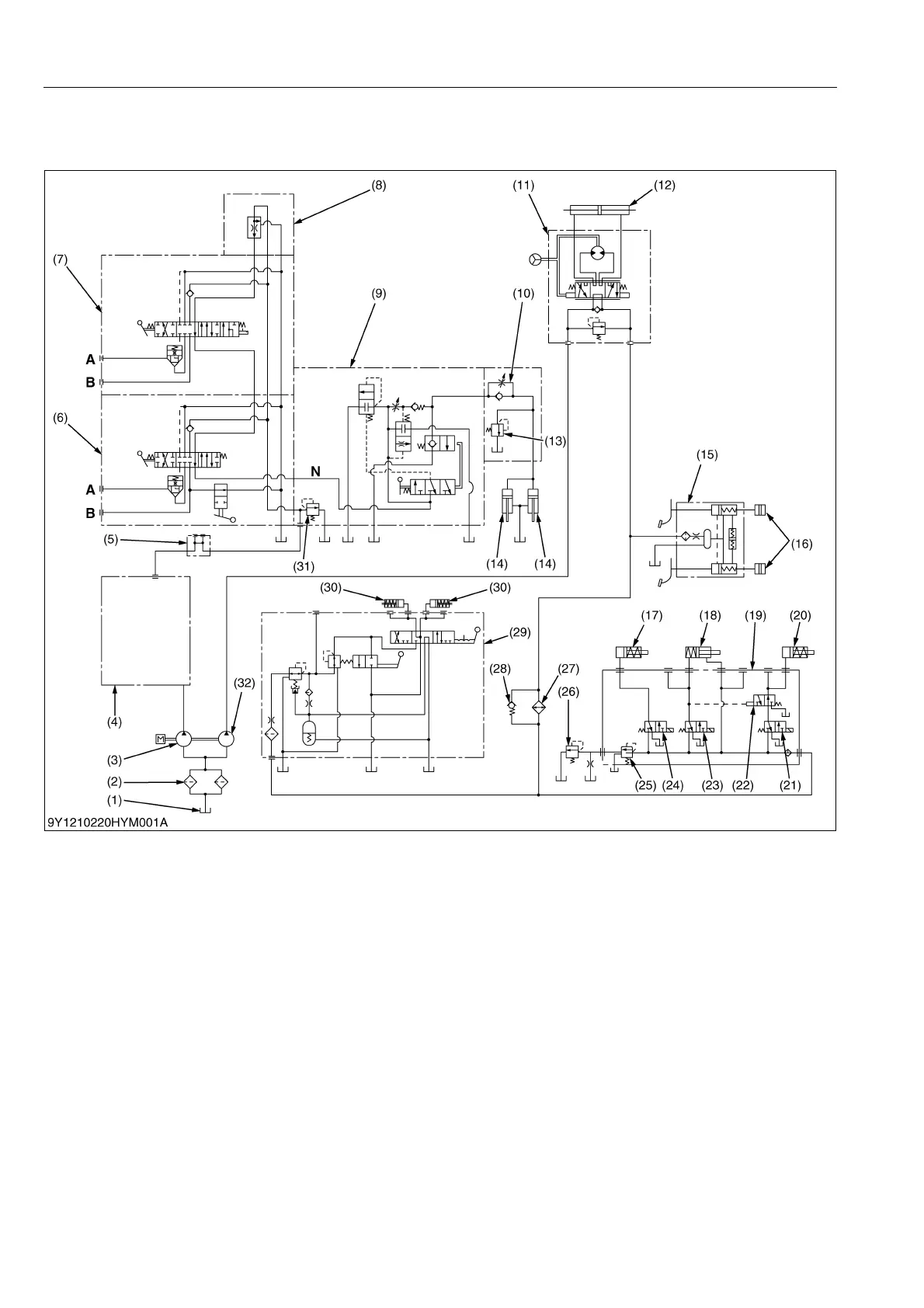

2. HYDRAULIC CIRCUIT
[1] TOTAL HYDRAULIC CIRCUIT
9Y1210220HYM0002US0
(1) Oil Tank (Transmission Case)
(2) Hydraulic Oil Filter Cartridge
(3) Hydraulic Pump (for 3-point)
(4) Trailer Brake (Option)
(5) Hydraulic Outlet (Front)
(6) Auxiliary Control Valve (S/D)
(7) Auxiliary Control Valve (SCD)
(8) Flow Priority Valve
(9) Control Valve (for 3-point)
(10) Lowering Speed Adjusting
Valve
(11) Power Steering Controller
(12) Steering Cylinder
(13) Cylinder Safety Valve
(14) Exterior Hydraulic Cylinder
(15) Brake Master Cylinder
(16) Brake Piston
(17) PTO Clutch Pack
(18) 4WD Clutch Pack
(19) Solenoid Valve Assembly
(20) Bi-speed Turn Clutch Pack
(21) Solenoid Valve (Bi-speed
Turn)
(22) Priority Valve
(23) Solenoid Valve (4WD)
(24) Solenoid Valve (PTO)
(25) Relief Valve (for System)
(26) Relief Valve
(for Lubricating Line)
(27) Oil Cooler
(28) Oil Cooler Check Valve
(29) Shuttle Valve
(30) Shuttle Clutch Pack
(31) Relief Valve for 3-point
(32) Hydraulic Pump (Power
Steering, PTO Clutch, 4WD
Clutch and Shuttle Clutch)
A : To Implement Cylinder
B : To Implement Cylinder
N : N Port
KiSC issued 07, 2012 A

Kubota M6040 NARROW Specifications

General

Engine Type	Diesel
Hydraulic System	Open Center
Wheelbase	203.5 cm
Fuel Type	Diesel
Drive	4WD
Fuel Capacity	66 L
3-Point Hitch	Category II
Type	Tractor
Displacement	2.4 L
Fuel Tank Capacity	66 L
Transmission	8-speed synchro-shuttle
