CABIN
M6040, M7040Narrow, WSM
N10-M1
1. AIR CONDITIONER SYSTEM
[1] OUTLINE OF AIR CONDITIONING SYSTEM
The machine is equipped with a thin large-capacity air conditioner with outside air intake. Through the inside air
filter (7) as well as the outside air filter (5), the inner roof (6) and reaches the air conditioner unit (16). The air is then
cooled and dehumidified by this unit.
The resulting air is heated to a comfortable level. In this way, the air being blown via the blow port can be kept at
comfortable temperature and humidity.
The front air outlet (9) can be opened and closed using the center knob of each port. The side air outlet (8) are
opened and closed using the mode lever on the control panel (4). With these ports open or closed, you can feel your
head cool and your feet warm.
• As for the mechanism and function of each component part, refer to Workshop Manual of "MECHANISM".
9Y1210220CAM0001US0

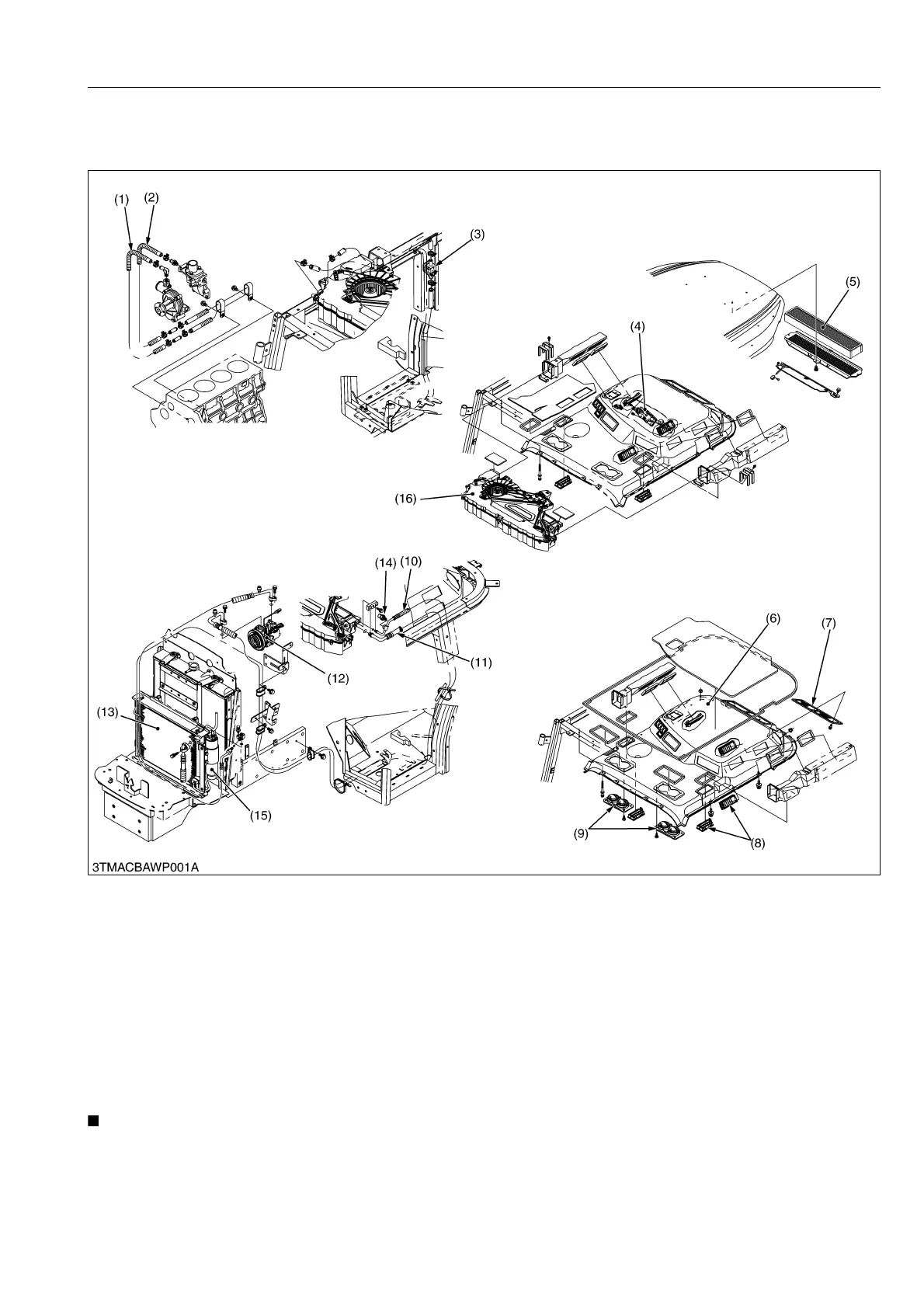

(1) Heater Hose (Out Side)
(2) Heater Hose (In Side)
(3) Water Valve
(4) Control Panel
(5) Outside Air Filter
(6) Inner Roof
(7) Inside Air Filter
(8) Side Air Outlet
(9) Front Air Outlet
(10) High Pressure Pipe
(11) Low Pressure Pipe
(12) Compressor
(13) Condenser
(14) Pressure Switch
(15) Receiver
(16) Air Conditioner Unit
To Next Page
