Kubota M6040 NARROW User Manual

CLUTCH
M6040, M7040Narrow, WSM
N2-S8
(3) CABIN Model
Rear Wheel (Wheel Model)
1. Set the disassembling stand under the transmission case
secure
2. Remove the both rear wheels (1).
(When reassembling)
9Y1210220CLS0018US0
Removing Compressor and Condenser
1. Refer to "[2] DISASSEMBLING AND ASSEMBLING" at "N10.
CABIN" section.
9Y1210220CLS0019US0
Heater Hose, Accelerator Wire, Bonnet Support and Steering
Joint Shaft
1. Refer to "[2] DISASSEMBLING AND ASSEMBLING" at "N10.
CABIN" section.
9Y1210220CLS0020US0
Floor Mat and Panel Cover
1. Refer to "[2] DISASSEMBLING AND ASSEMBLING" at "N10.
CABIN" section.
9Y1210220CLS0021US0
Brake Rod (Parking)
1. Refer to "[2] DISASSEMBLING AND ASSEMBLING" at "N10.
CABIN" section.
9Y1210220CLS0022US0
Removing Control Rods and Brake Hoses
1. Refer to "[2] DISASSEMBLING AND ASSEMBLING" at "N10.
CABIN" section.
9Y1210220CLS0023US0
Auxiliary Control Valve Cable and Ground Cable
1. Refer to "[2] DISASSEMBLING AND ASSEMBLING" at "N10.
CABIN" section.
9Y1210220CLS0024US0
Brake Rod (L.H.), Shuttle Cable and Clutch Cable
1. Refer to "[2] DISASSEMBLING AND ASSEMBLING" at "N10.
CABIN" section.
9Y1210220CLS0025US0
Cabin Assembly
1. Refer to "[2] DISASSEMBLING AND ASSEMBLING" at "N10.
CABIN" section.
9Y1210220CLS0026US0

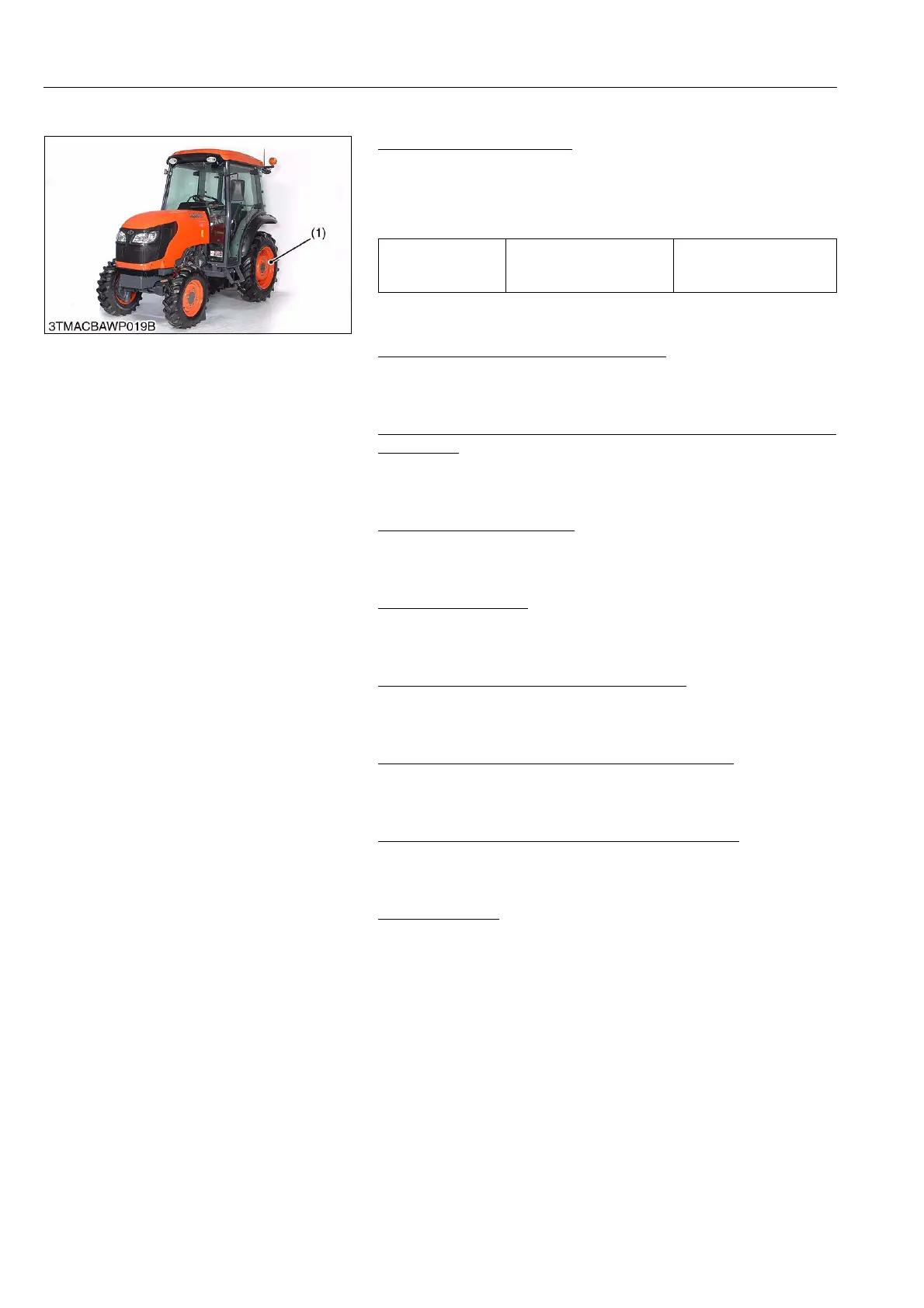

Tightening torque Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
(1) Rear Wheel
