ELECTRICAL SYSTEM
M6040, M7040Narrow, WSM
N9-S4
(2) CABIN Model
Fuse (CABIN Model)
1. When inspect the circuit line, check the related fuses.
2. If any of the fuse is blown, replace with a new one of the same
capacity.
• If a fuse is blown, check the cause and be sure to replace it
with a new one of the same capacity.
Protected Circuit (Fuse)
Protected Circuit (Slow Blow Fuse)
9Y1210220ELS0007US0
Fuse I.D. Capacity (A) Protected circuit
a 20 Side window defogger
b 20 Rear window defogger
c 10 4WD / Bi-speed turn
d 10 4WD brake
e 15 Work light (Rear)
f 15 Work light (Front)
g 15 Cigarette lighter
h 20 Air conditioner (Fan motor)
i 10 Air conditioner (Compressor)
j 15 Work Light (Front, Side)
k 15 Auxiliary power
l 5 Starter relay
m 5 Radio
n 5 Air conditioner (Control)
o 15 Wiper
p 5 Alternator, Engine, PTO, Heater
q 5 Meter panel, OPC
r 10 Turn signal, Stop lamp
s 10 Meter, Radio (Back up)
t 20 Head light, Position lamp
u 20 Flasher (Hazard)
v 20 Spare fuse
Fuse I.D. Capacity (A) Protected circuit
a 50 Head light, Hazard
b 50 Air heater
c 100 Charge
d 30 Electrical outlet
e 40 Air conditioner
f 30 Work light, Fuel Cut solenoid
g 30 Key switch

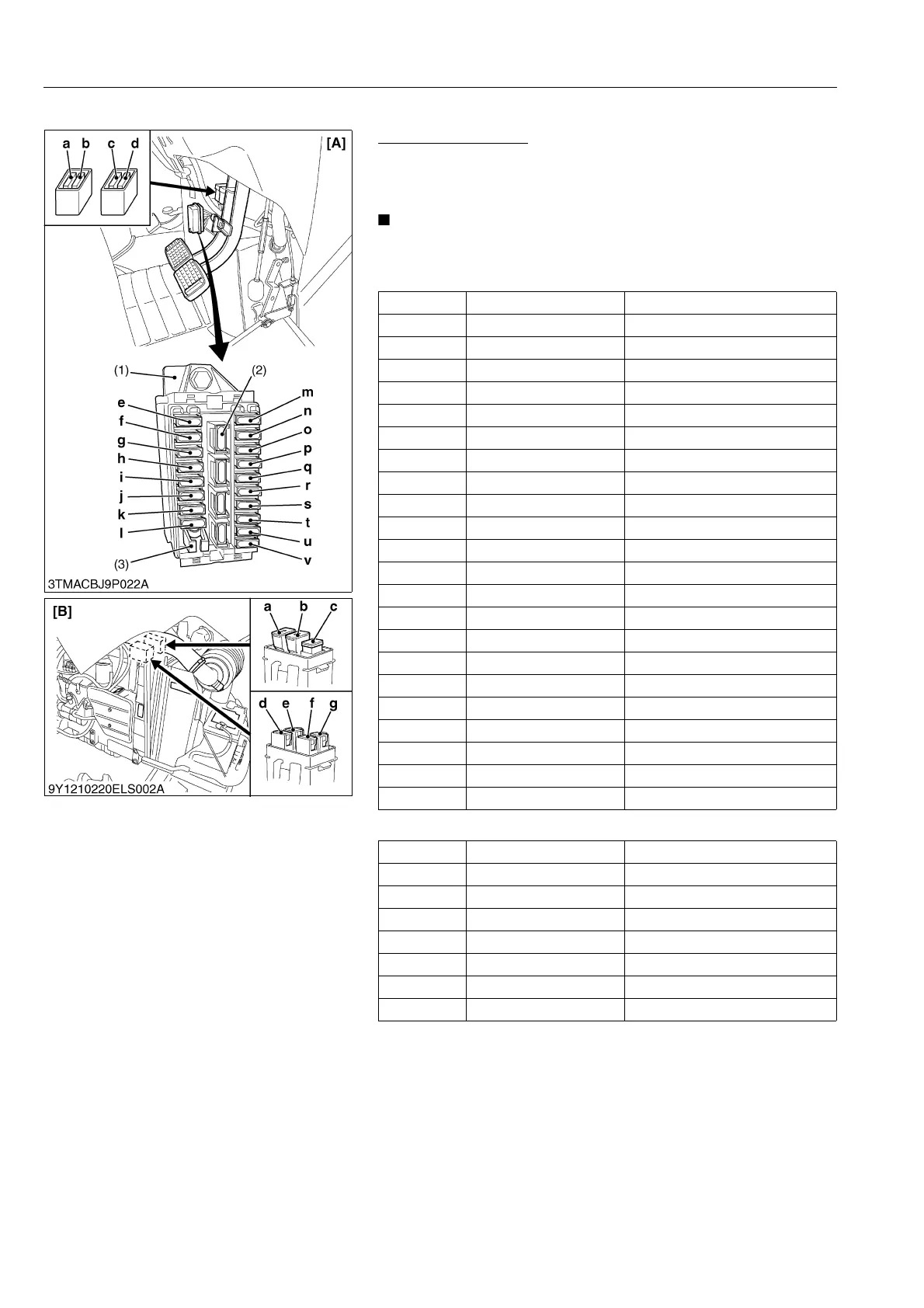

(1) Fuse Case
(2) Spare Fuse
(3) Fuse Puller
[A] Fuse
[B] Slow Blow Fuse
