ELECTRICAL SYSTEM
M6040, M7040Narrow, WSM
N9-M9

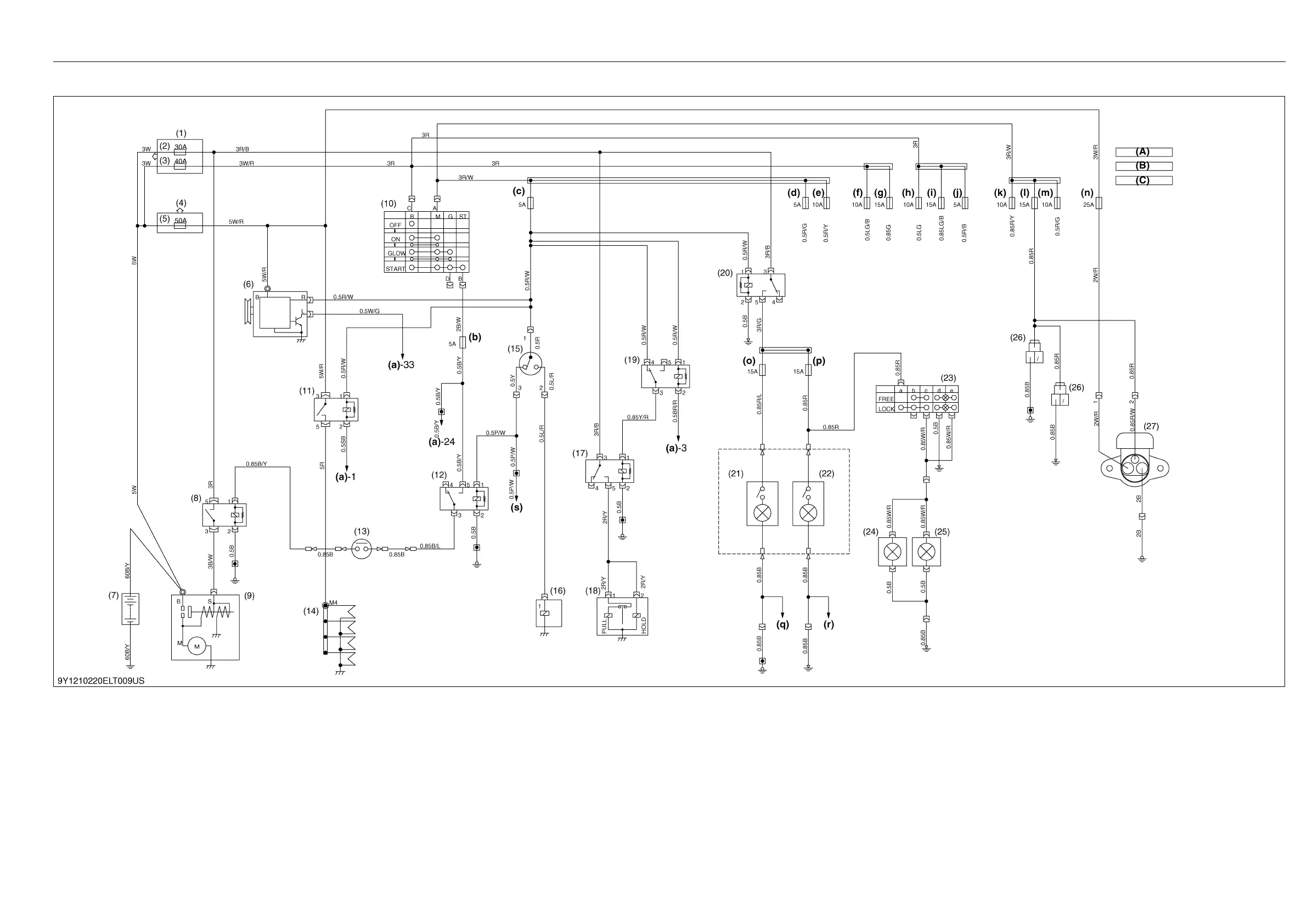

(2) Starting System, Charging System and Power Supply (ITA Model)
(1) Slow Blow Fuse Box
(2) Fuel/Work Light
(3) Key/Light
(4) Slow Blow Fuse
(5) Charge/Heater
(6) Alternator
(7) Battery
(8) Starter Relay
(9) Starter Motor
(10) Main Key Switch
(11) Glow Relay
(12) PTO Safety Relay
(13) Shuttle Neutral Switch
(14) Glow Plug
(15) PTO Switch
(16) PTO Valve (Solenoid)
(17) Key Stop Relay
(18) Key Stop Solenoid
(19) Engine Stop Relay
(20) Working Light Relay
(21) Working Lamp L.H. (12 V, 35 W) (Option)
(22) Working Lamp R.H. (12 V, 35 W) (Option)
(23) Working Lamp Front Side Switch (14 V, 1.4 W)
(24) Working Lamp Front Side L.H. (12 V, 21 W)
(25) Working Lamp Front Side R.H. (12 V, 21 W)
(26) Auxiliary Power Connector
(27) Auxiliary Power Socket
(A) Fuel/Work Light
(B) Key/Light
(C) Key/IG
(a) To Meter Panel
(b) Fuse (Starter Relay)
(c) Fuse (Alternator, Engine, PTO)
(d) Fuse (Meter Panel)
(e) Fuse (Turn Signal)
(f) Fuse (Position Lamp, Number Lamp)
(g) Fuse (Flasher (Hazard))
(h) Fuse (Horn)
(i) Fuse (Head Light)
(j) Fuse (Meter Back Up)
(k) Fuse (Turn signal, Stop Lamp)
(l) Fuse (Auxiliary Power)
(m) Fuse (T/M Control)
(n) Fuse (AUX. Socket)
(o) Fuse (Work Light L)
(p) Fuse (Work Light R)
(q) To Rear Combi Lamp L.H. (Ground)
(r) To Rear Combi Lamp R.H. (Ground)
(s) To Ground PTO Switch (ITA Model)
To Next Page
