REAR AXLE
M6040, M7040Narrow, WSM
N4-S3

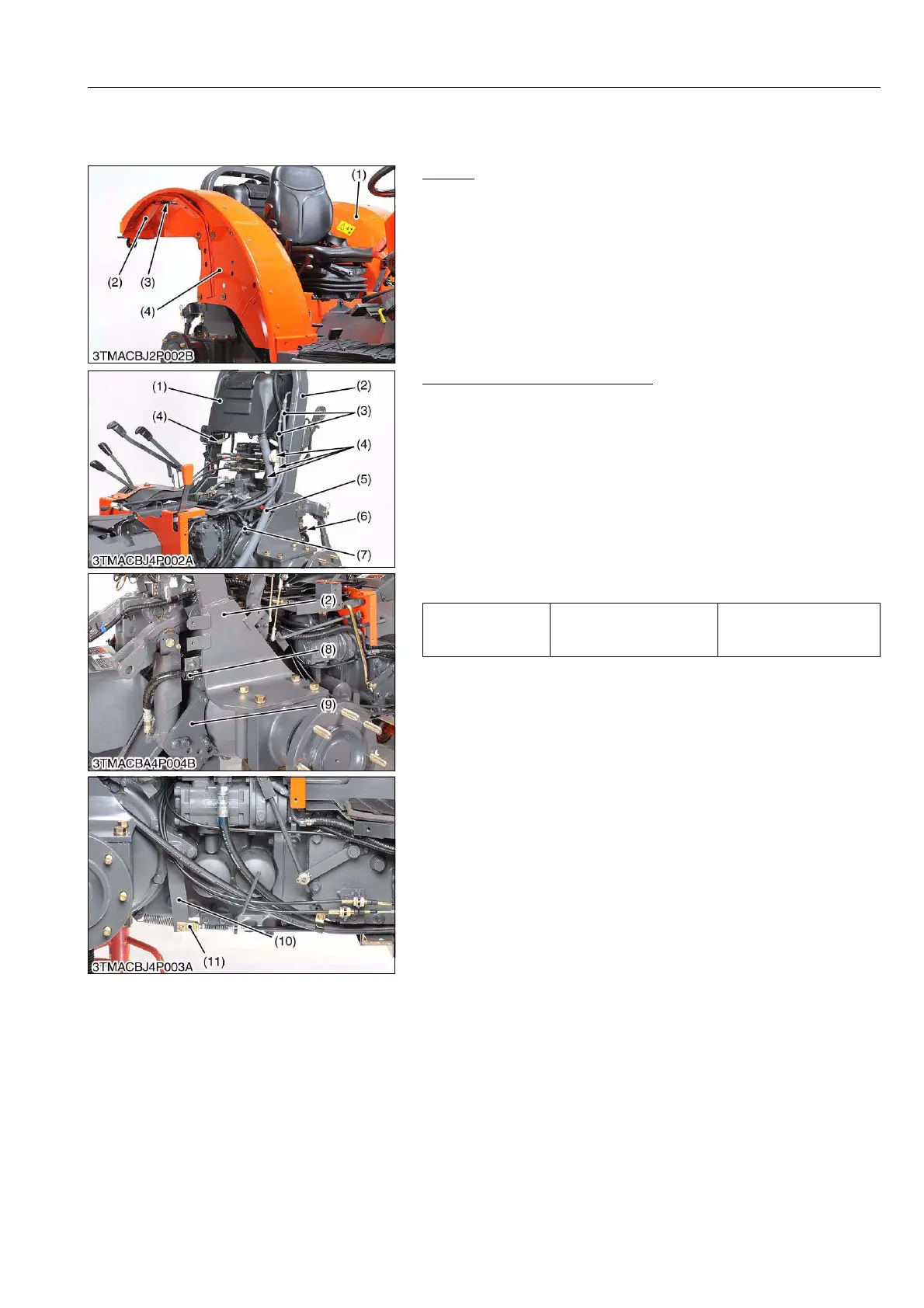

[2] SEPARATING REAR AXLE FROM TRANSMISSION CASE
(1) ROPS Model
Fender
1. Remove the harness cover (2) for both side and disconnect the
connectors.
2. Remove the 3-point hydraulic lever guide from the fender R.H.
(4).
3. Remove the fender (1) and (4).
9Y1210220RAS0005US0
Rear ROPS and Rear Fuel Tank
1. Disconnect the connectors (4).
2. Disconnect the fuel hose (5) from the lower / left fuel tank.
3. Disconnect the fuel breather hose (7) from the T-joint.
4. Disconnect the breather hoses (3).
5. Remove the cylinder hose clamp (6) and (8).
6. Remove the cylinder support (9).
7. Disconnect the parking brake cable (11) both side from the
parking lever (10).
8. Unscrew the rear ROPS mounting screws and remove the rear
ROPS (2) with upper fuel tank (1).
(When reassembling)
9Y1210220RAS0006US0
(1) Fender L.H.
(2) Harness Cover
(3) Harness
(4) Fender R.H.
Tightening torque
Rear ROPS mounting
screw (M16, 9T)
260 to 304 N·m
26.5 to 31.0 kgf·m
192 to 224 lbf·ft
(1) Upper Fuel Tank
(2) Rear ROPS
(3) Breather Hose
(4) Connector
(5) Fuel Hose
(6) Clamp
(7) Fuel Breather Hose
(8) Clamp
(9) Cylinder Support
(10) Brake Lever
(11) Parking Brake Cable
To Next Page
