CABIN
M6040, M7040Narrow, WSM
N10-M3
[3] ELECTRICAL SYSTEM

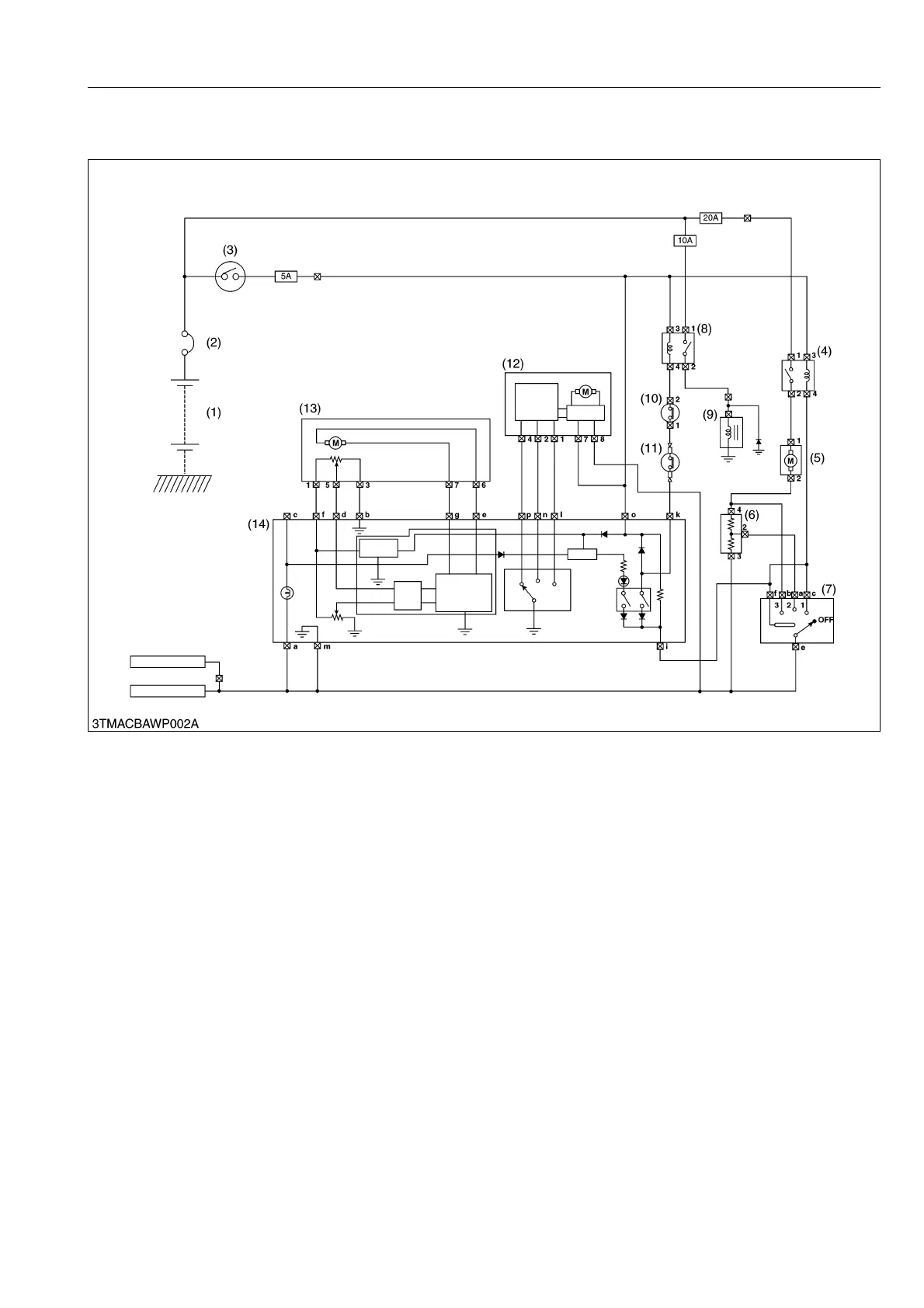

(1) Electrical Circuit
9Y1210220CAM0003US0
(1) Battery
(2) Slow Blow Fuse
(3) Main Switch
(4) Blower Relay
(5) Blower Motor
(6) Blower Resistor
(7) Blower Switch
(8) Compressor Relay
(9) Compressor
(10) Pressure Switch
(11) Thermostat
(12) Mode Motor
(13) Temperature Motor
(14) Control Panel
KiSC issued 07, 2012 A
