REAR AXLE
M6040, M7040Narrow, WSM
N4-S2
2. DISASSEMBLING AND SERVICING
[1] PREPARATION
Draining Fuel and Transmission Fluid
1. Refer to "2. LUBRICANTS, FUEL AND COOLANT" at "NG.
GENERAL" section.
9Y1210220RAS0002US0

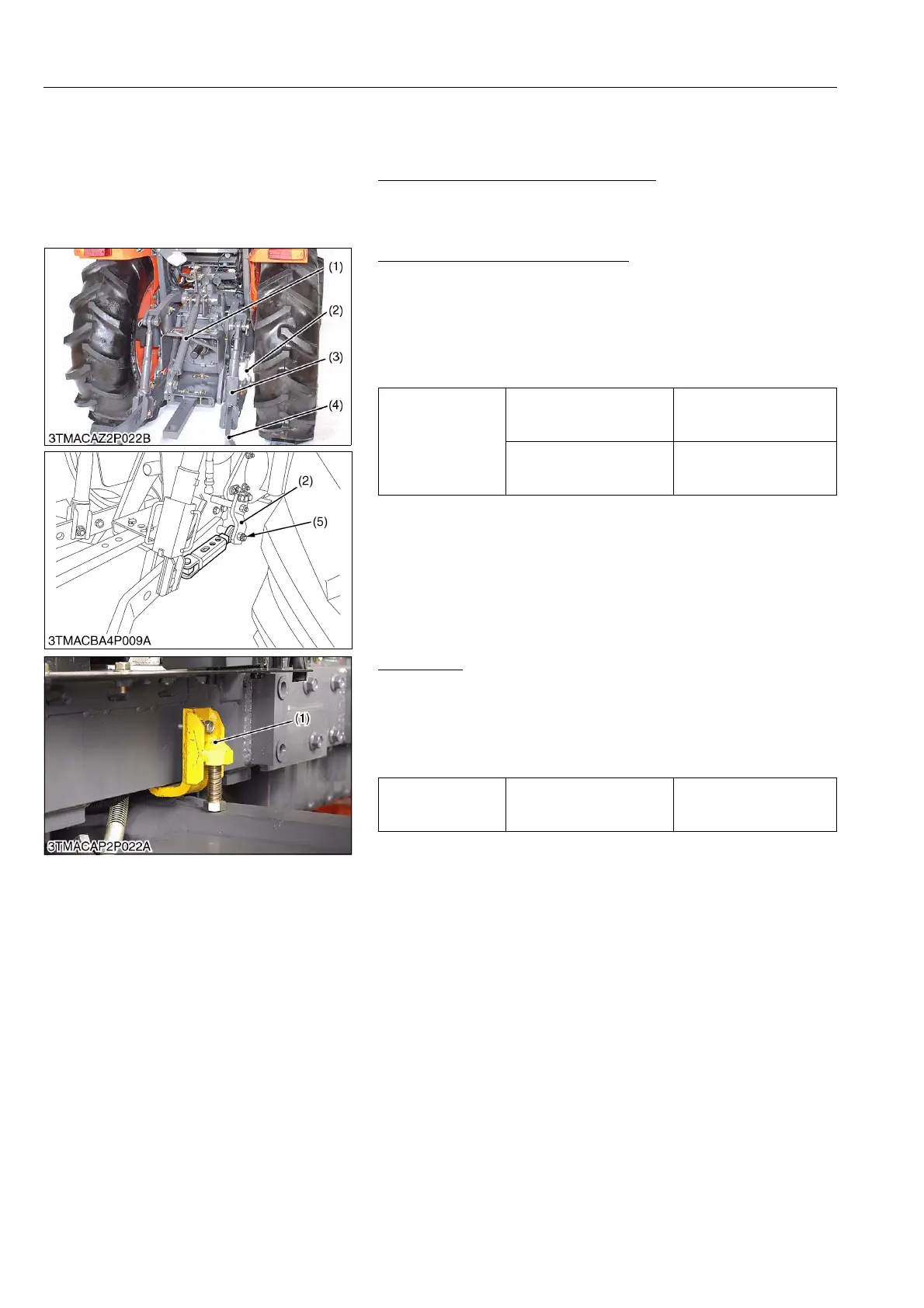

Lift Rod, Lower Link and Top Link
1. Remove the top link (1).
2. Remove the cotter pin and slotted nut (5).
3. Remove the stabilizer bracket (2).
4. Remove the lift rod (3) with lower link (4).
(When reassembling)
• Tighten the slotted nut (5) by hand and assemble the cotter pin.
9Y1210220RAS0003US0
Rear Wheel
1. Place the disassembling stand under the transmission case.
2. Install the front axle rocking restrictor (1) to the front axle
bracket on both sides (refer to "8. SPECIAL TOOLS" at "NG.
GENERAL" section).
3. Remove the both rear wheels.
9Y1210220RAS0004US0
Tightening torque
Stabilizer bracket mounting
screw (M16, 9T)
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
Stabilizer bracket mounting
nut (M16, 7T)
197 to 225 N·m
20.0 to 23.0 kgf·m
145 to 166 lbf·ft
(1) Top Link
(2) Stabilizer Bracket
(3) Lift Rod
(4) Lower Link
(5) Slotted Nut
Tightening torque Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
192 to 224 lbf·ft
(1) Front Axle Rocking Restrictor
To Next Page
