REAR AXLE
M6040, M7040Narrow, WSM
N4-S5
(2) CABIN Model

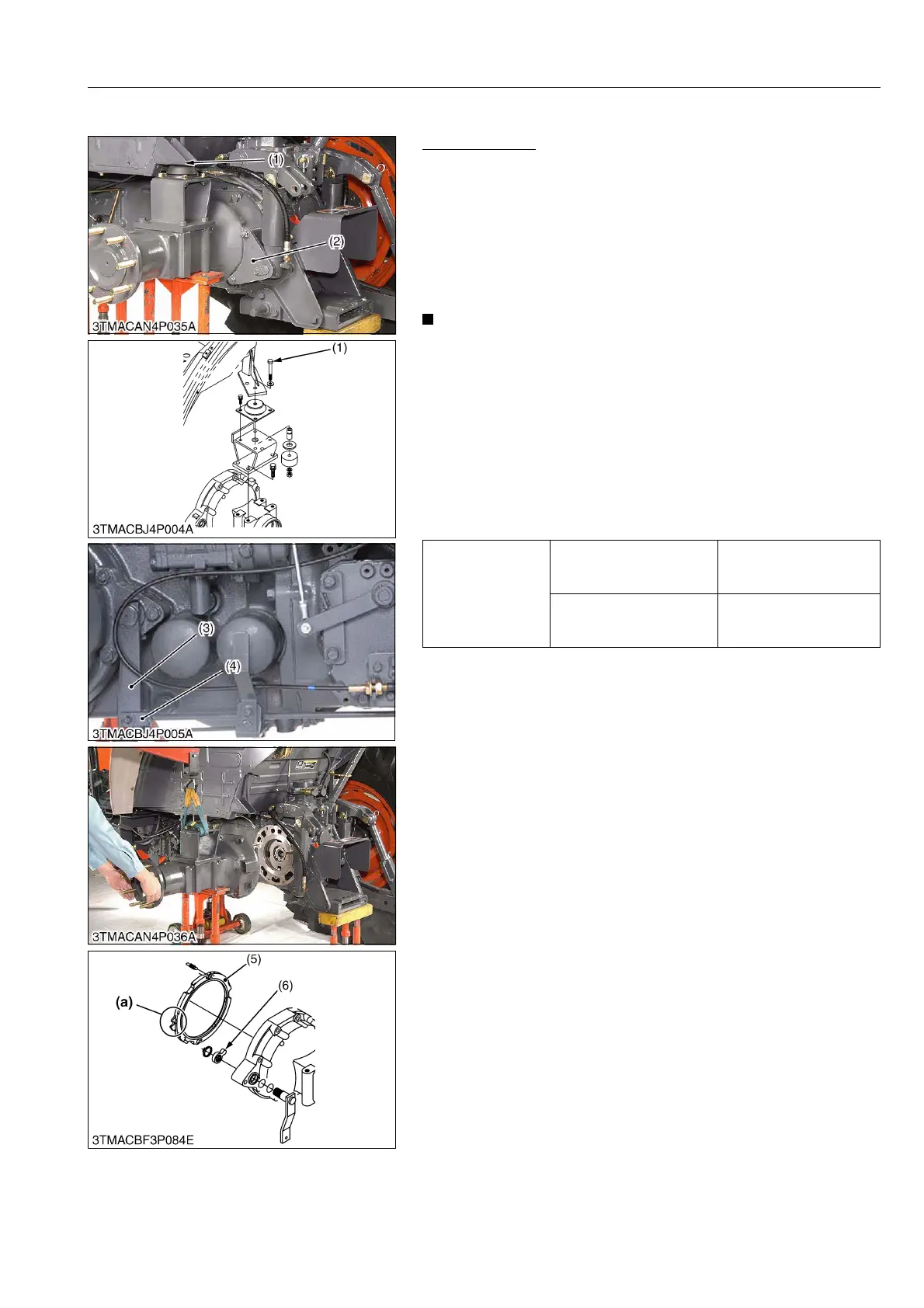

Rear Axle Case
1. Remove the cylinder support (2).
2. Support the cabin and remove the cabin mounting bolt (1).
3. Remove the rear axle case mounting screws and nuts.
4. Remove the parking brake rod (4) both side from the brake lever
(3).
5. Disconnect the hydraulic brake hoses.
6. Support the rear axle case with nylon lift strap and hoist.
7. Separate the rear axle case from transmission case.
• Be sure to support the rear axle and make sure the balance
for support position.
• Hoist up and support the rear axle under neath as shown
photo.
(When reassembling)
• Apply liquid gasket (Three Bond 1206C or equivalent) to joint
face of the rear axle case and transmission case, after eliminate
the water, oil and stuck liquid gasket.
• Align the brake cam (6) and groove (a) of brake cam plate (5).
• Be sure to assemble the cabin mount as shown figure.
• Be sure to bleed the air from the hydraulic brake system.
9Y1210220RAS0008US0
Tightening torque
Cabin mounting bolt and
nut (M14, 9T)
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
Rear axle case mounting
screw and nut
166.7 to 196.1 N·m
17.0 to 20.0 kgf·m
123.0 to 144.3 lbf·ft
(1) Cabin Mounting Bolt
(2) Cylinder Support
(3) Brake Lever
(4) Parking Brake Rod
(5) Brake Cam Plate
(6) Brake Cam
(a) Groove
