CLUTCH
M6040, M7040Narrow, WSM
N2-S3

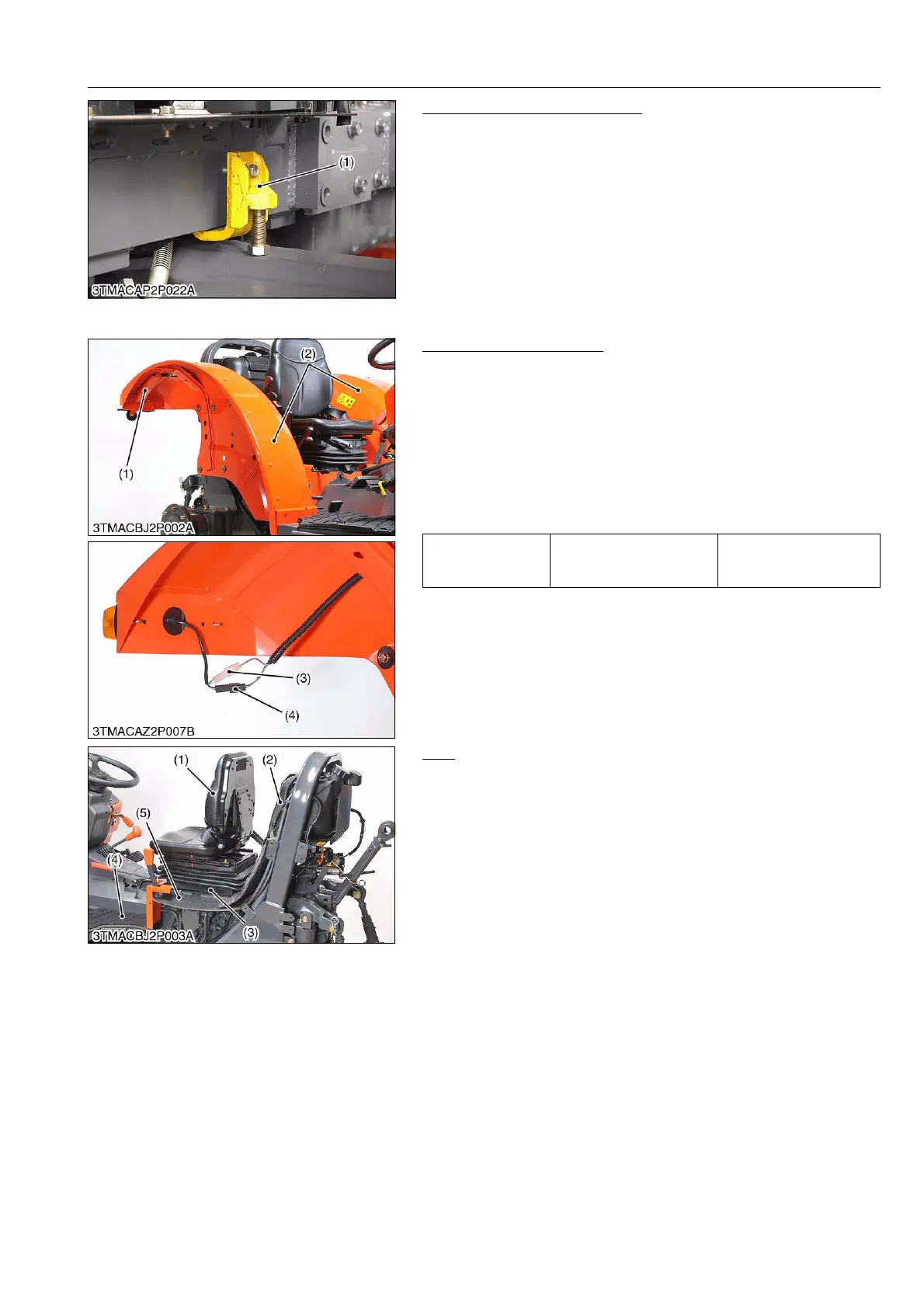

Front Axle Rocking Restrictor
1. Install the front axle rocking restrictor (1) (refer to "8. SPECIAL
TOOLS" at "NG. GENERAL" section) to the front axle bracket
on both sides.
9Y1210220CLS0005US0
(2) ROPS Model
Rear Wheel and Fenders
1. Make sure the transmission case and clutch housing case are
securely mounted on the disassembling stands.
2. Remove the rear wheels.
3. Remove the harness cover (1) and disconnect the connectors
(3) and (4).
4. Remove the hydraulic lever guide from fender R.H. and remove
the fenders (2).
(When reassembling)
• Assemble the hydraulic lever guide to original position.
9Y1210220CLS0006US0
Seat
1. Remove the seat (1) with seat stay (3).
2. Remove the rubber sheets (2) and (5).
3. Remove the rubber step (4).
9Y1210220CLS0007US0
(1) Front Axle Rocking Restrictor
Tightening torque Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
(1) Harness Cover
(2) Fender
(3) Connector
(4) Connector
(1) Seat
(2) Rubber Sheet
(3) Seat Stay
(4) Rubber Step
(5) Rubber Sheet
