CABIN
M6040, M7040Narrow, WSM
N10-S19
(5) Removing Air Conditioner Pipes
Discharging Refrigerant Gas
Refer to "5. CHECKING AND CHARGING REFRIGERANT
CYCLE" at "10. CABIN" section.
9Y1210220CAS0037US0

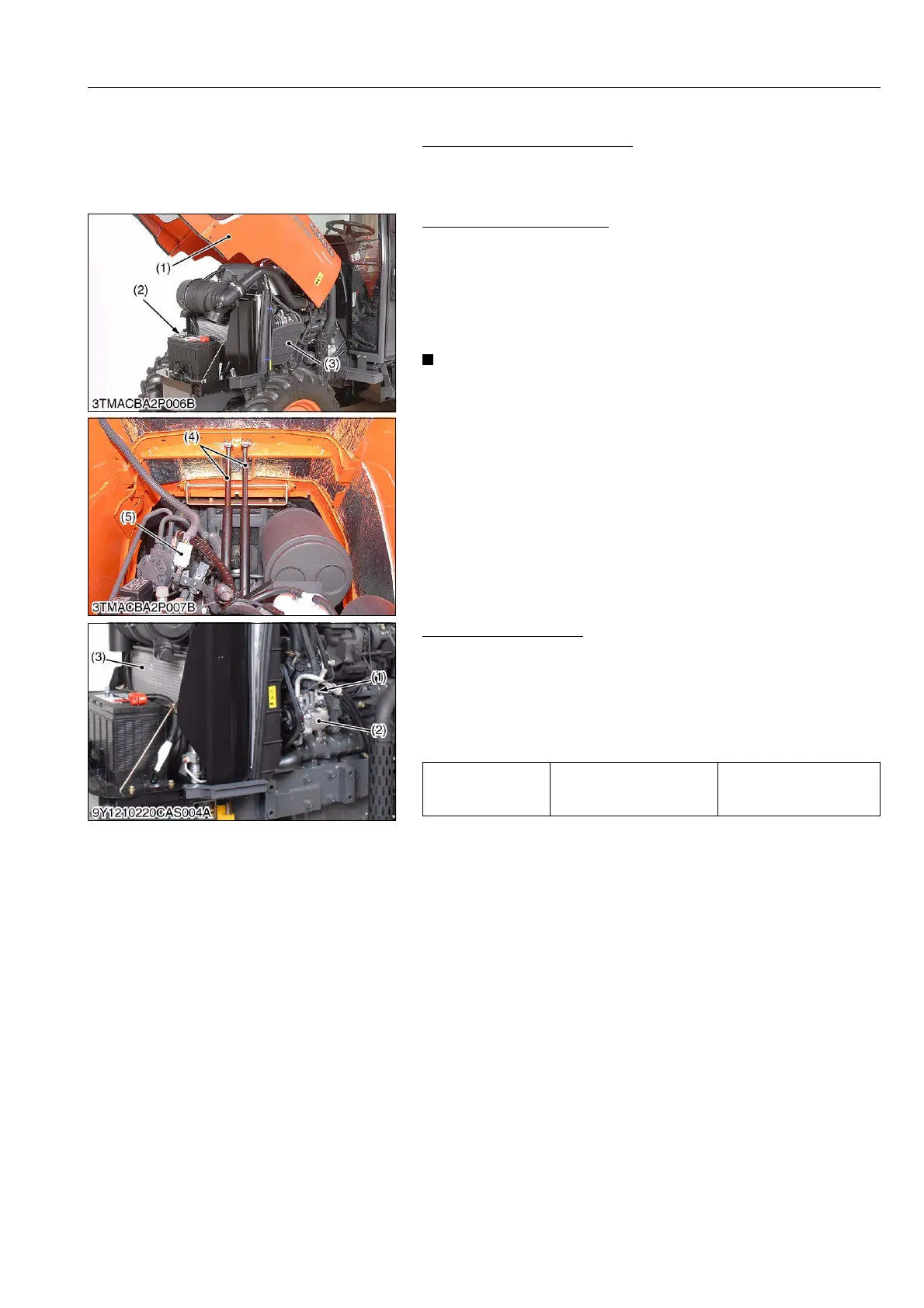

Battery, Skirt and Bonnet
1. Open the bonnet (1) and disconnect the battery negative cable
(2).
2. Disconnect the head light connector (5) and remove the bonnet
cylinders (4).
3. Remove the skirts (3) L.H. and R.H..
4. Remove the bonnet (1).
• When disconnecting the battery cords, disconnect the
negative cord first, when connecting, positive cord first.
9Y1210220CAS0038US0
High Pressure Hose 1
1. Disconnect the high pressure hose 1 (1) from the compressor
(2) and condenser (3), then cap the open fittings immediately to
keep moisture out of the system.
(When reassembling)
• Apply compressor oil (DENSO ND-OIL 8 or equivalent) to the
O-rings and take care not to damage them.
9Y1210220CAS0039US0
(1) Bonnet
(2) Battery Negative Cable
(3) Skirt
(4) Bonnet Cylinder
(5) Head Light Connector
Tightening torque
High pressure pipe 1
mounting screw
7.95 to 11.7 N·m
0.810 to 1.20 kgf·m
5.86 to 8.67 lbf·ft
(1) High Pressure Hose 1
(2) Compressor
(3) Condenser
To Next Page
