CABIN
M6040, M7040Narrow, WSM
N10-S22

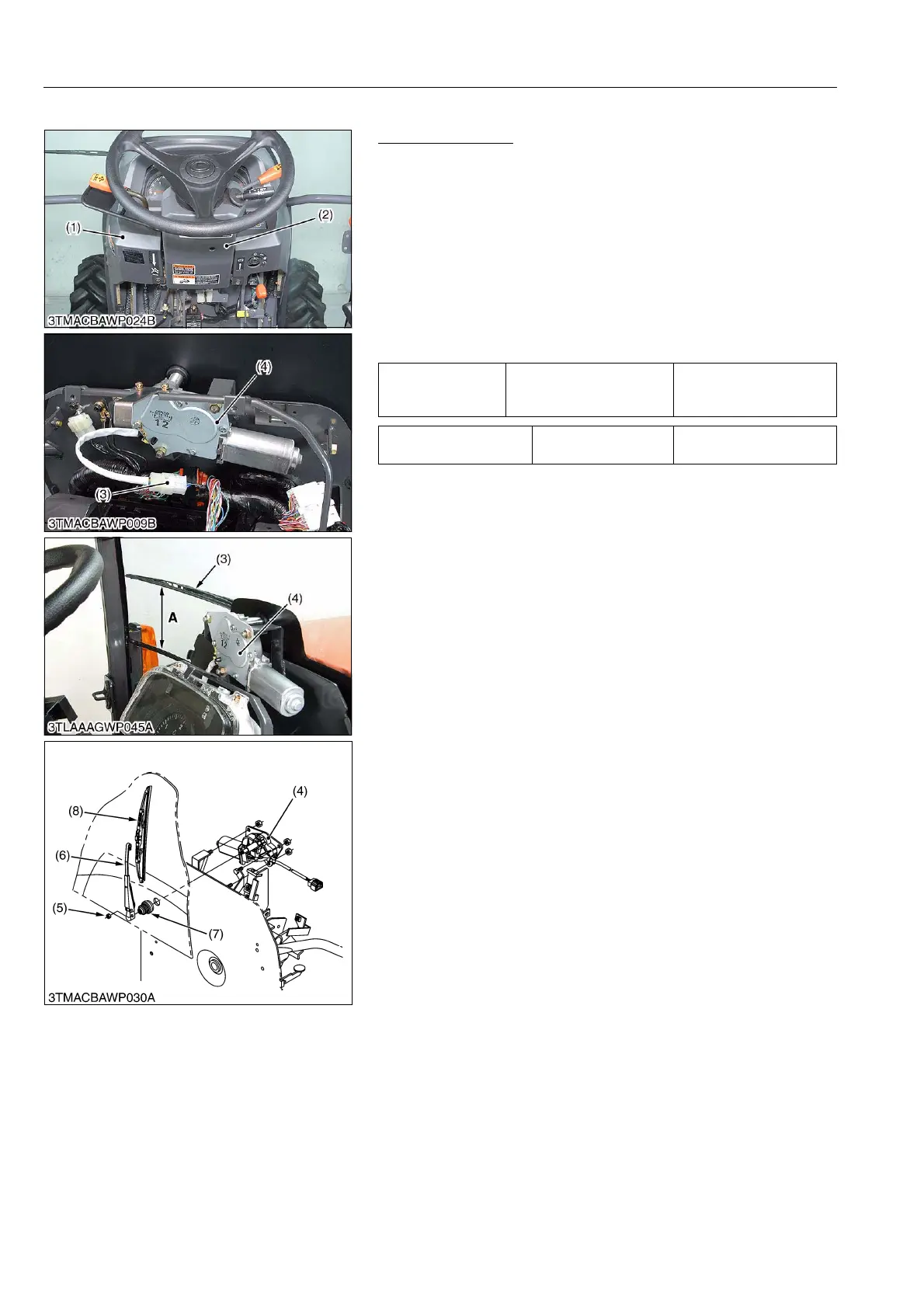

(6) Wiper Motor
Front Wiper Motor
1. Remove the steering post covers (2) and steering post under
cover (1).
2. Disconnect the front wiper motor 4P connector (3).
3. Remove the wiper arm mounting nut (5) and wiper arm (6).
4. Remove the wiper link cap (7).
5. Remove the front wiper motor (4).
(When reassembling)
• When attaching the wiper arm (6) to the wiper motor (4),
assemble so that the dimensions are as given in the photo on
the left. After doing so, check if the wiper wipes symmetrically
on the left and right (bilateral symmetry).
9Y1210220CAS0043US0
Tightening torque Wiper motor mounting nut
6.4 to 9.3 N·m
0.65 to 0.95 kgf·m
4.7 to 6.8 lbf·ft
Distance "A" Factory specification
90 to 110 mm
3.5 to 4.3 in.
(1) Steering Post Under Cover
(2) Steering Post Cover
(3) 4P Connector
(4) Front Wiper Motor
(5) Nut
(6) Wiper Arm
(7) Wiper Link Cap
(8) Wiper Blade
