ELECTRICAL SYSTEM
M6040, M7040Narrow, WSM
N9-S3
3. CHECKING AND ADJUSTING
• To avoid accidental short circuit, be sure to attach the positive cable to the positive terminal before the
negative cable is attached to the negative terminal.
• Never remove the battery cap while the engine is running.
• Keep electrolyte away from eyes, hands and clothes. If you are spattered with it, wash it away completely
with water immediately.
• Keep open sparks and flames away from the battery at all times. Hydrogen gas mixed with oxygen
becomes very explosive.
• If the machine is to be operated for a short time without battery (using a slave battery for starting), use
additional current (lights) while engine is running and insulate terminal of battery. If this advice is
disregarded, damage to alternator and regulator may result.
9Y1210220ELS0005US0

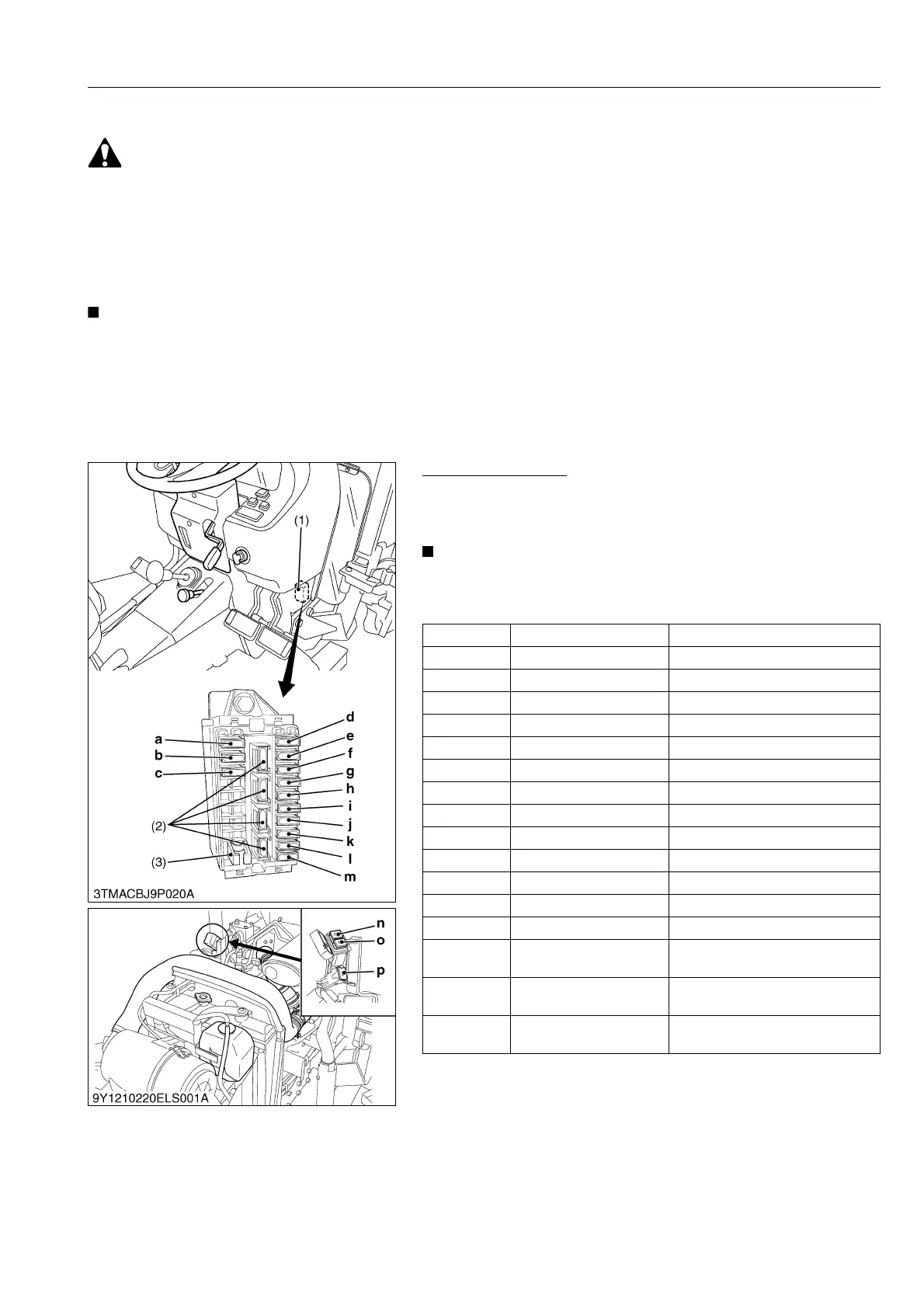

[1] FUSE
(1) ROPS Model
Fuse (ROPS Model)
1. When inspect the circuit line, check the related fuses.
2. If any of the fuse is blown, replace with a new one of the same
capacity.
• If a fuse is blown, check the cause and be sure to replace it
with a new one of the same capacity.
Protected Circuit
9Y1210220ELS0006US0
Fuse I.D. Capacity (A) Protected circuit
a 10 Horn
b 10 Transmission control
c 25 Auxiliary socket
d 15 Work light (Right)
e 15 Work light (Left)
f 5 Alternator, Engine, PTO, Heater
g 5 Meter panel
h 10 Turn signal
i 15 Auxiliary power
j 5 Meter (Backup)
k 20 Head light, Tail lamp
l 15 Flasher (Hazard)
m 5 Starter relay
n
40
Slow-Blow Fuse
Key switch, Head light, Hazard
o
30
Slow-Blow Fuse
Fuel cut solenoid
p
50
Slow-Blow Fuse
Charge, Air heater
(1) Fuse Case
(2) Spare Fuse
(3) Fuse Puller
To Next Page
