BRAKES
M6040, M7040Narrow, WSM
N5-S5
(2) Parking Brake

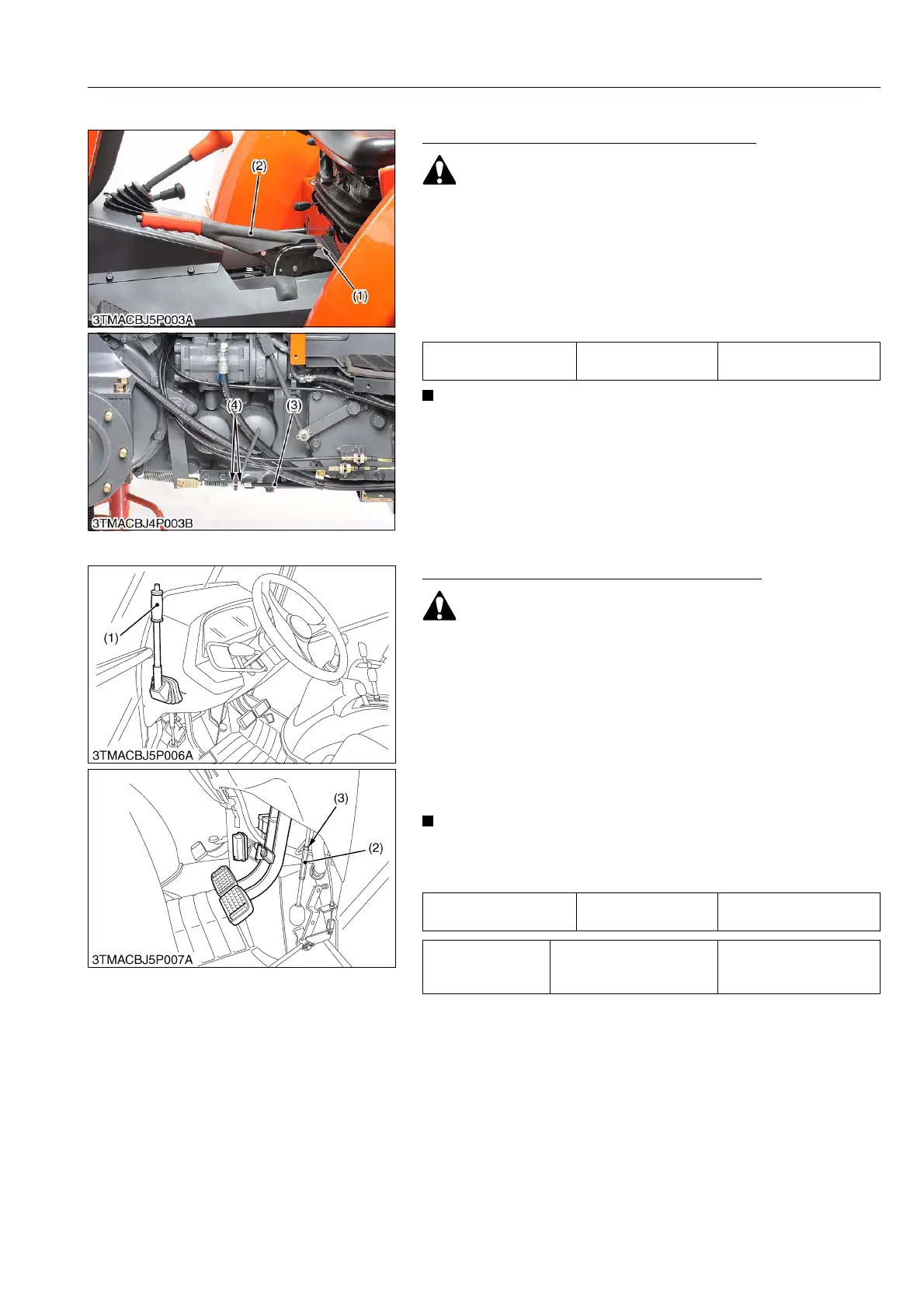

Adjusting Parking Brake Lever (ROPS Model)
• Stop the engine and chock the wheels before checking
parking brake.
1. Raise the parking brake lever (2) to the parking position while
counting the ratchet sound made by the parking brake lever (2).
2. If the free travel is not within factory specifications, loosen the
lock nut (1) and adjust the parking brake cable length with in
factory specifications.
3. Retighten the lock nut (1).
• Assemble the parking brake wire at the center of thread
with retaining nuts (4).
• Make sure the parking brake indicator lamp on the
instrument panel goes off when parking brake lever (2) is
down.
9Y1210220BRS0007US0
Adjusting Parking Brake Lever (CABIN Model)
• Stop the engine and chock the wheels before checking
parking brake.
1. Pull the parking brake lever (1) to the parking position while
counting the ratchet sound made by the parking brake lever (1).
2. If the free travel is not within factory specifications, adjust the
turnbuckle rod (2).
3. Set the parking brake lever at 2nd notches position and adjust
the turnbuckle rod (2) by hand to zero free play position, both
right and left side evenly.
4. Retighten the lock nut (3).
• Make sure the parking brake indicator lamp on the
instrument panel goes off when parking brake lever (1) is
unlocked.
9Y1210220BRS0008US0
Parking brake lever free
travel
Factory specification
2 notches
(Ratchet sound 2)
(1) Lock Nut
(2) Parking Brake Lever
(3) Parking Brake Wire R.H.
(4) Retaining Nut
Parking brake lever free
travel
Factory specification 2 notches
Tightening torque
Brake rod turnbuckle lock
nut
29.4 to 34.3 N·m
3.00 to 3.49 kgf·m
21.7 to 25.2 lbf·ft
(1) Parking Brake Lever
(2) Turnbuckle Rod
(3) Lock Nut
