TRANSMISSION
M6040, M7040Narrow, WSM
N3-S3
3. CHECKING AND ADJUSTING
[1] MAIN GEAR SHIFTING
(1) ROPS Model
Checking Function of Main Gear Shift
1. Check the function of the main gear shift.
• Neutral position to 1st gear position.
• Neutral position to 2nd gear position.
• Neutral position to 3rd gear position.
• Neutral position to 4th gear position.
• Neutral position to 5th gear position.
2. If shifting is not smooth, check the length of select shift rod (3).
The main shift cable (1) and select cable (2) are fixed at the
center of thread.
3. Adjust the front and rear stopper bolt (5) and (4) length with
initial adjustment and check the overshift is available or not.
If the overshift is not available, adjust the front and/or rear
stopper bolt (5) and (4).
4. Adjust the main shift cable (1) is fixed at the center of thread.
Adjust the select cable (2) retaining position "L4" and "L5" for
the references.
9Y1210220TRS0003US0
Length of front stopper
bolt "L1"
Initial adjustment
19 mm
0.75 in.
Length of rear stopper
bolt "L2"
Initial adjustment
25 mm
0.98 in.
Length of select shift rod
"L3"
Factory specification
65 mm
2.6 in.
Length of the select wire
retaining position "L4"
Reference value
22 mm
0.87 in.
Length of the select wire
retaining position "L5"
Reference value
24 mm
0.94 in.

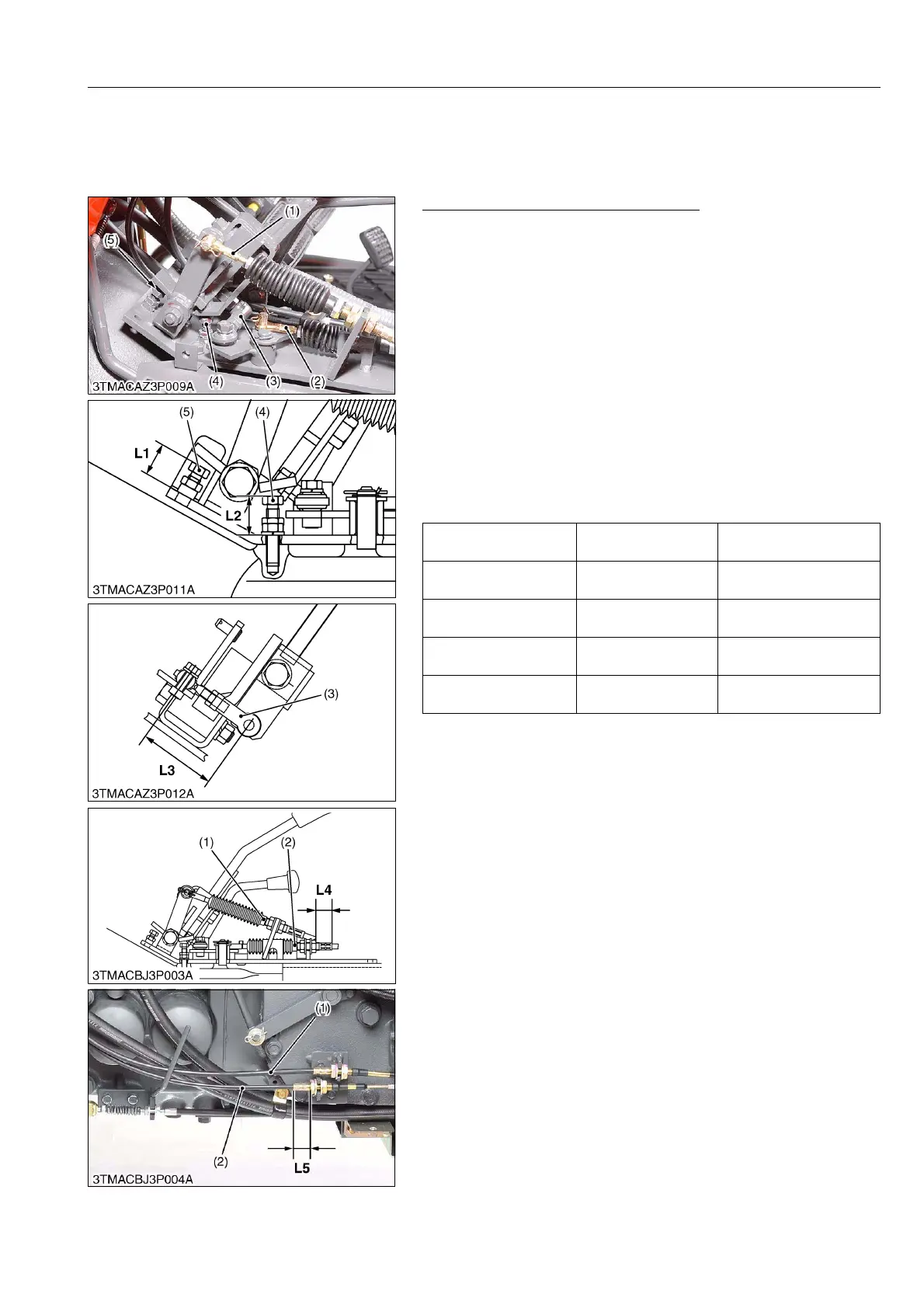

(1) Main Shift Cable
(2) Select Cable
(3) Select Shift Rod
(4) Rear Stopper Bolt
(5) Front Stopper Bolt
L1 : Front Stopper Bolt Length
L2 : Rear Stopper Bolt Length
L3 : Select Shift Rod Length
L4 : Select Wire Retaining Length
(Shift Lever Side)
L5 : Select Wire Retaining Length
(Shift Cover Side)
KiSC issued 07, 2012 A

Kubota M6040 NARROW Specifications

General

Engine Type	Diesel
Hydraulic System	Open Center
Wheelbase	203.5 cm
Fuel Type	Diesel
Drive	4WD
Fuel Capacity	66 L
3-Point Hitch	Category II
Type	Tractor
Displacement	2.4 L
Fuel Tank Capacity	66 L
Transmission	8-speed synchro-shuttle
