[4] FENDER
(1) Adjusting Fender Height (ROPS Model)
• Support tractor securely on stands before removing a wheel.
• Do not work under any hydraulically supported devices. They can settle, suddenly leak down, or be
accidentally lowered. If necessary to work under tractor or any machine elements for servicing or
adjustment, securely support them with stands or suitable blocking beforehand.
9Y1210220GEG0077US0

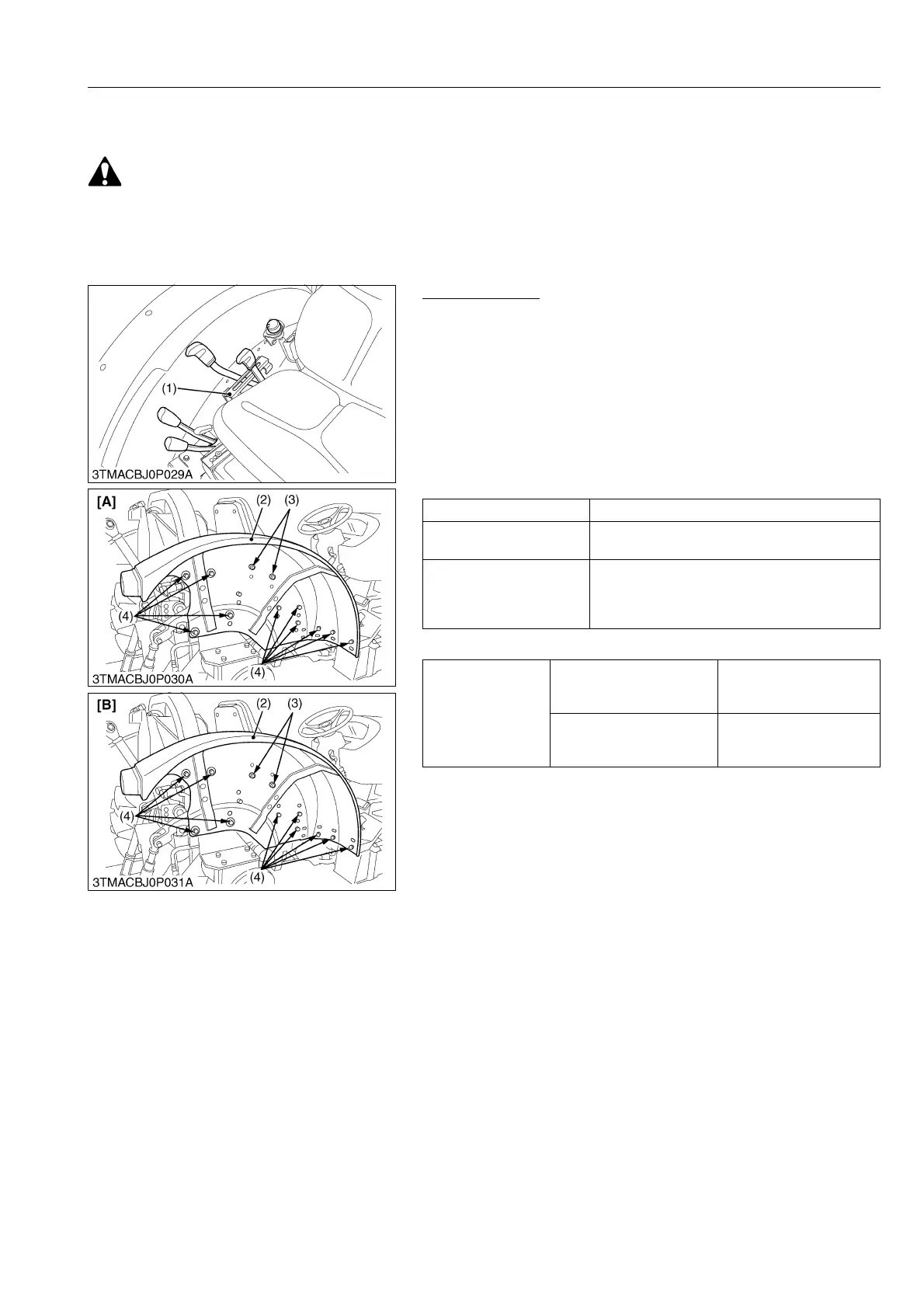

Fender Position
Adjust the height of the fender according to the size of the tire.
1. Remove the rear wheels.
2. Remove the hydraulic control lever guide mounting nuts (3) and
detach the hydraulic control lever guide (1) from the fender
R.H..
3. Remove the fender mounting screws (3).
4. Change the position of the fender (right and left) to the desired
position, and tighten the screws (3).
5. Reinstall the hydraulic control lever guide (1) to the fender R.H..
6. Reinstall the rear wheels.
(When reassembling)
9Y1210220GEG0078US0
Tire size Fender position
12.4R24
380 / 70R24
Lower position
320 / 85R28
360 / 70R28
380 / 70R28
440 / 65R28
Upper position
Tightening torque
Fender mounting screw
(M8) and nut (M8)
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.3 to 20.3 lbf·ft
Rear wheel disc mounting
screw
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
(1) Hydraulic Control Lever Guide
(2) Fender
(3) Nut (M8)
(4) Screw (M8)
[A] Lower Position
[B] Upper Position
