CLUTCH
M6040, M7040Narrow, WSM
N2-S12
[3] REMOVING PTO CLUTCH VALVE
Rear Wheel (L.H.)

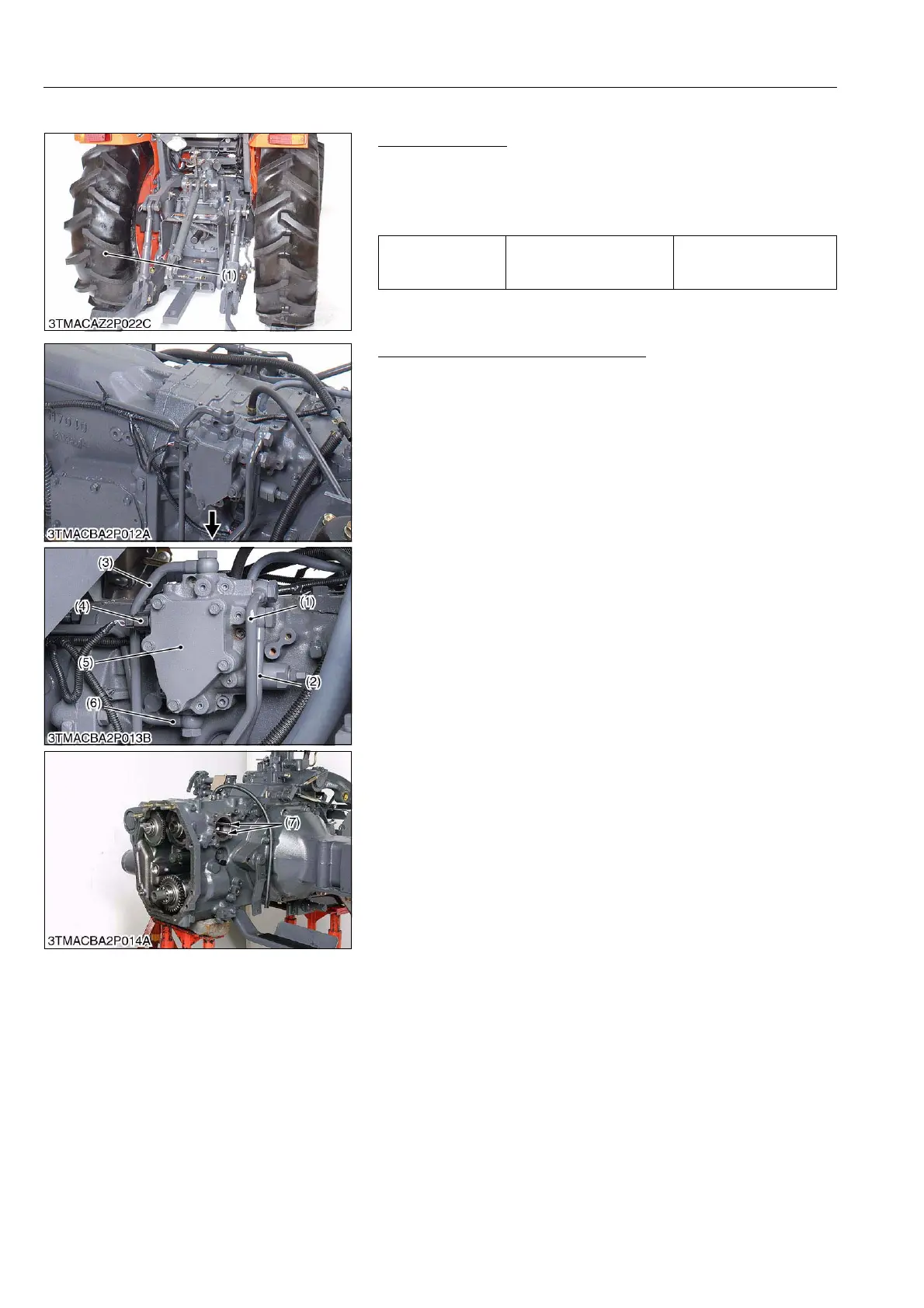

1. Place the disassembling stand under the transmission case.
2. Remove the rear wheel (1) (L.H.).
3. Remove the harness cover and disconnect the connectors.
(When reassembling)
9Y1210220CLS0031US0
Removing Solenoid Valve Assembly
1. Prepare a can for hydraulic pipes.
2. Remove the hydraulic pipe (2WD) (1).
3. Remove the hydraulic pipe (4WD) (2).
4. Remove the hydraulic pipe (Bi-speed turn) (3).
5. Remove the hydraulic pipe (Delivery) (6).
6. Remove the solenoid valve assembly (5).
(When reassembling)
• Apply transmission fluid to hydraulic pipes (PTO) (7).
• Remove the two hydraulic pipes from the PTO clutch holder.
• Insert both the hydraulic pipes into the solenoid valve assembly
holes.
• Replace the hydraulic pipes with new one.
9Y1210220CLS0032US0
Tightening torque Rear wheel mounting nut
260 to 304 N·m
26.5 to 31.0 kgf·m
191.8 to 224.2 lbf·ft
(1) Rear Wheel
(1) Hydraulic Pipe (2WD)
(2) Hydraulic Pipe (4WD)
(3) Hydraulic Pipe (Bi-speed Turn)
(4) Connector
(5) Solenoid Valve Assembly
(6) Hydraulic Pipe (Delivery)
(7) Hydraulic Pipe (PTO)
To Next Page
