ELECTRICAL SYSTEM
M6040, M7040Narrow, WSM
N9-M14
[2] CABIN MODEL

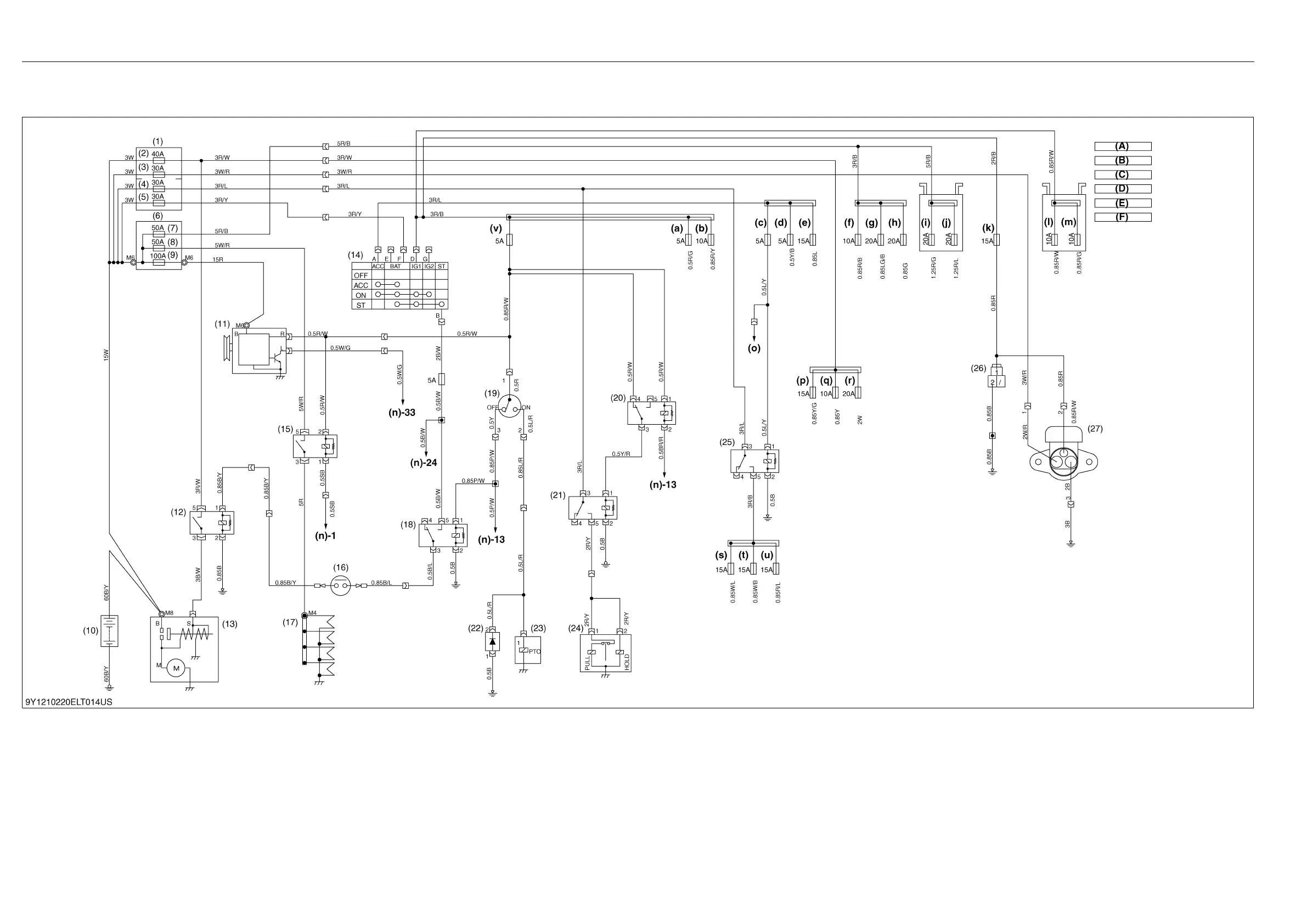

(1) Starting System and Charging (Except ITA Model)
(1) Slow Blow Fuse Box 2, 3
(2) Blower
(3) Auxiliary
(4) ACC
(5) KEY
(6) Slow Blow Fuse Box 1
(7) Light/Defogger
(8) Heater
(9) Charge
(10) Battery
(11) Alternator
(12) Starter Relay
(13) Starter Motor
(14) Main Key Switch
(15) Heater Relay
(16) Shuttle Neutral Switch
(17) Glow Plug
(18) PTO Safety Relay
(19) PTO Switch
(20) Engine Stop Relay
(21) Key Stop Relay
(22) Diode (PTO Solenoid)
(23) PTO/DT Valve (Solenoid)
(24) Key Stop Solenoid
(25) Working Light Relay
(26) Auxiliary Power Connector
(27) Auxiliary Power Socket
(A) Head Light
(B) Blower Motor
(C) Auxiliary Power
(D) ACC
(E) Key ACC
(F) Key IG
(a) Fuse (Meter Panel)
(b) Fuse (Turn Signal)
(c) Fuse (Radio)
(d) Fuse (Air Conditioner (Control))
(e) Fuse (Wiper)
(f) Fuse (Meter Back Up, Radio)
(g) Fuse (Head Light, Tail Lamp)
(h) Fuse (Flasher (Hazard))
(i) Fuse (Quarter Window Defogger)
(j) Fuse (Rear Window Defogger)
(k) Fuse (Auxiliary Power)
(l) Fuse (Stop Lamp)
(m) Fuse (Transmission Control)
(n) To Meter Panel
(o) To Radio
(p) Fuse?(Working Light (Front Side))
(q) Fuse (Air Conditioner (Compressor))
(r) Fuse (Air Conditioner (Fan Motor))
(s) Fuse (Working Light (Rear))
(t) Fuse (Working Light (Front)
(u) Fuse (Cigarette Lighter)
(v) Fuse (Alternator, PTO, Engine)
To Next Page
