BRAKES
M6040, M7040Narrow, WSM
N5-S3
3. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING
• When checking, park the tractor on flat ground, and stop the engine.
9Y1210220BRS0004US0
(1) Traveling Brake
Adjusting Brake Pedal
• Be sure brake pedals have equal adjustment when using
locked together. Incorrect or unequal brake pedal
adjustment can cause the tractor to swerve or roll-over.
1) Brake Pedal Free Travel
1. Set the parking brake.
2. Slightly depress the brake pedals and measure free travel at the
top of pedal stroke.
3. If the measurement is not within the factory specifications,
adjust the free travel by the turn buckle (2) or push rod (3).
4. After adjustment, tighten the lock nut firmly.
• Keep the free travel in the right and left brake pedals equal.
9Y1210220BRS0005US0
Brake pedal free travel
"L"
Factory specification
7 to 14 mm
0.28 to 0.55 in.
Keep the free travel in the
both brake pedal equal
Tightening torque
Brake rod turnbuckle lock
nut
29.4 to 34.3 N·m
3.00 to 3.49 kgf·m
21.7 to 25.2 lbf·ft

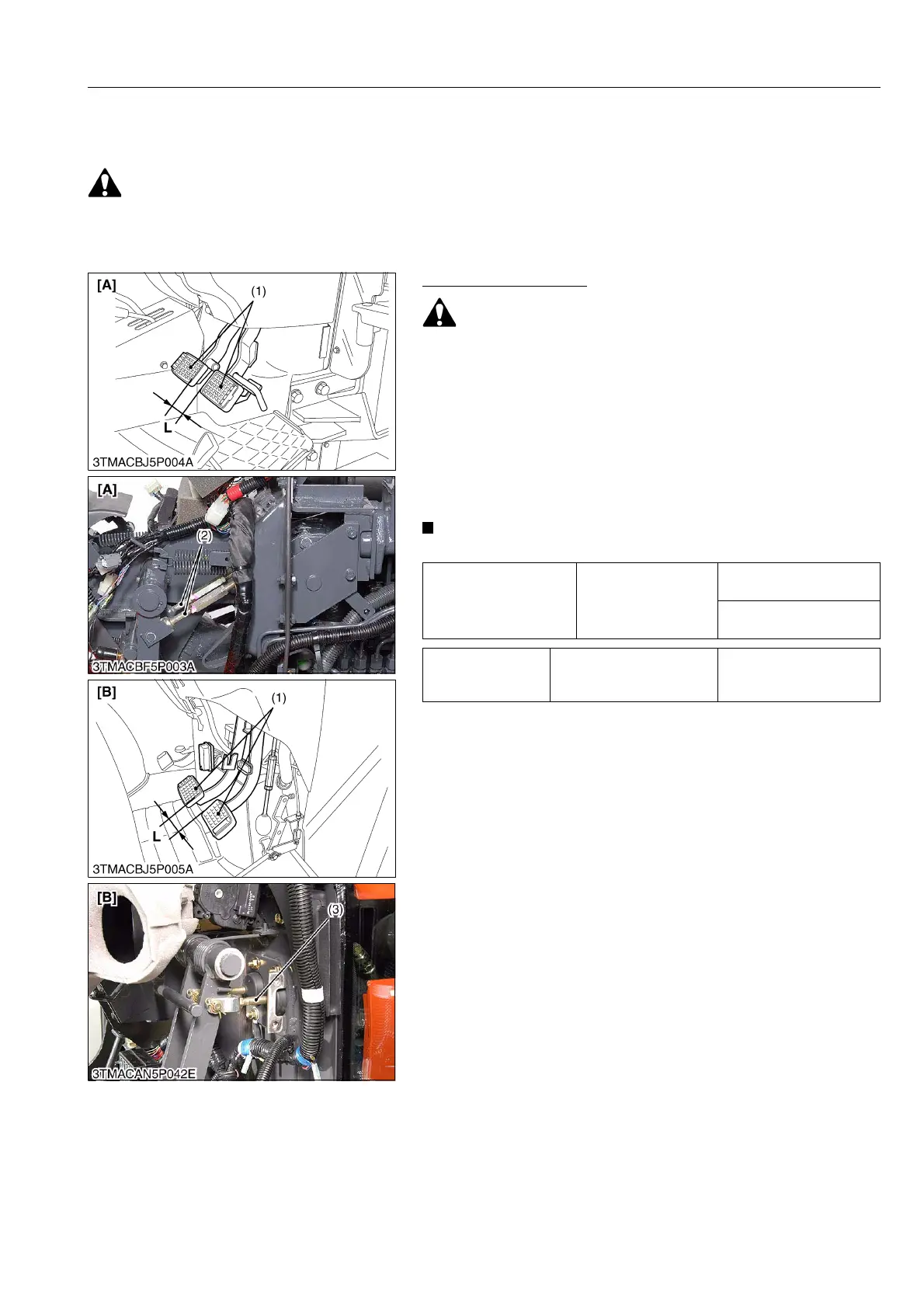

(1) Brake Pedal
(2) Turn Buckle
(3) Push Rod
L : Free Travel
[A] ROPS Model
[B] CABIN Model
