TRANSMISSION
M6040, M7040Narrow, WSM
N3-S9

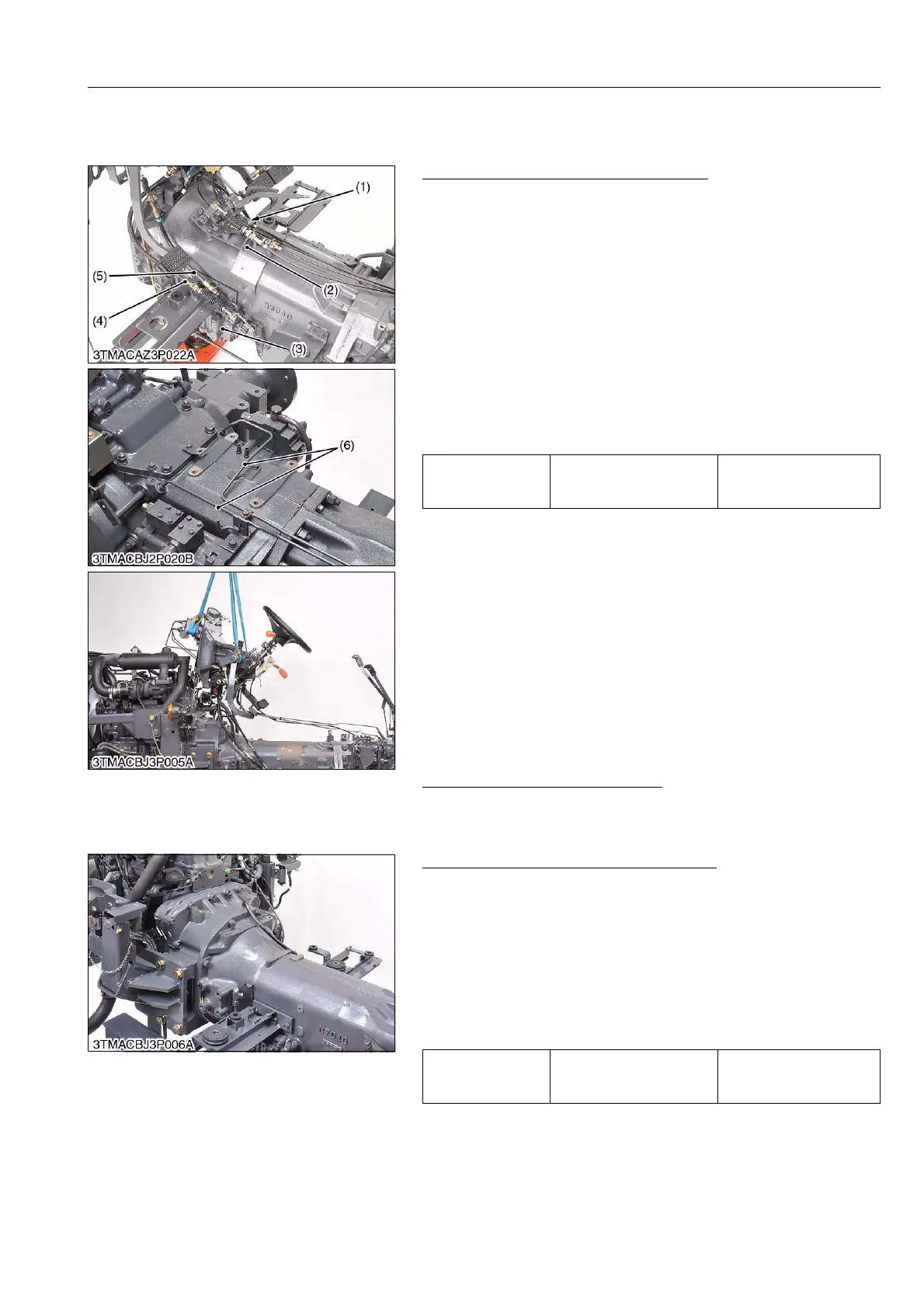

[3] SEPARATING EACH BLOCK
(1) Clutch Housing Case
Steering Post Assembly [ROPS Model]
1. Refer to "(1) Separating Clutch Housing Case from
Transmission Case" at "N2. CLUTCH" section.
2. Remove the clamp (1) for PTO wire cable and hand accelerator
wire cable.
3. Remove the change lever bracket (2).
4. Disconnect the shuttle cable (5) and clutch cable (4) from the
shuttle valve (3).
5. Disconnect the brake pipes (6) both side from the transmission
case.
6. Remove the steering post as an assembly.
(When reassembling)
• Assemble the shuttle cable (5) and clutch cable (4) with a
retaining nuts at center of the thread.
• Check the engine start condition after assembling.
9Y1210220TRS0010US0
CABIN Assembly [CABIN Model]
1. Refer to "[2] DISASSEMBLING AND ASSEMBLING" at "N10.
CABIN" section.
9Y1210220TRS0011US0
Separating Engine from Clutch Housing
1. Check the engine and clutch housing case are securely
mounted on the disassembling stands.
2. Remove the engine mounting screws and nuts.
3. Separate the engine from the clutch housing.
(When reassembling)
• Apply molybdenum disulphide (Three Bond 1901 or equivalent)
to the splines of damper disc boss.
• Apply liquid gasket (Three Bond 1141, 1211 or equivalent) to
joint face of the engine and clutch housing.
9Y1210220TRS0012US0
Tightening torque Brake pipe retaining nut
15.7 to 23.5 N·m
1.6 to 2.4 kgf·m
11.6 to 17.4 lbf·ft
(1) Clamp
(2) Change Lever Bracket
(3) Shuttle Valve
(4) Clutch Cable
(5) Shuttle Cable
(6) Brake Pipe
Tightening torque
Engine and clutch housing
mounting screw and nut
(M14, 7T)
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
To Next Page
