ELECTRICAL SYSTEM
M6040, M7040Narrow, WSM
N9-M16

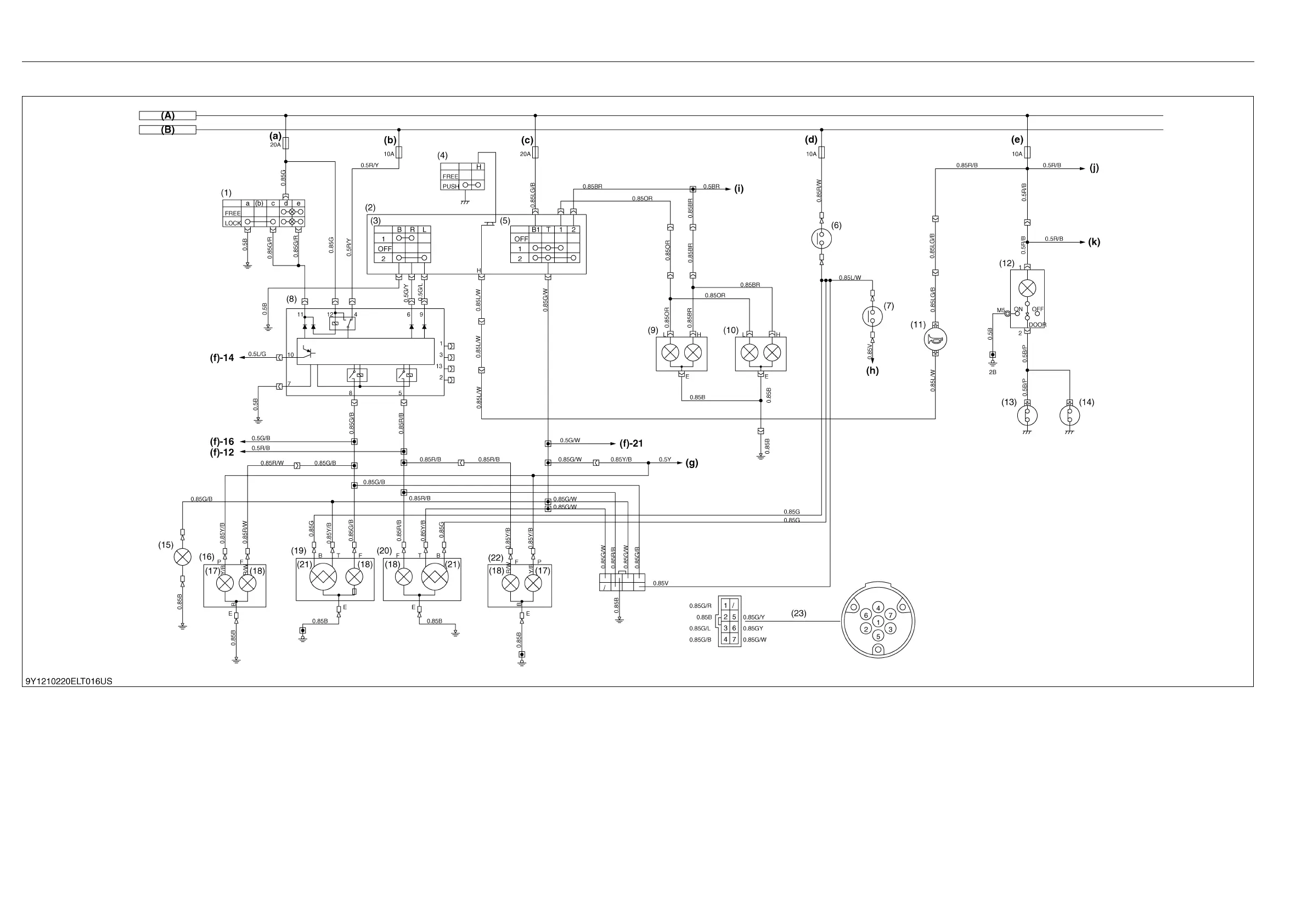

(3) Lighting System
(1) Hazard Switch (14 V, 1.4 W)
(2) Combination Light Switch
(3) Turn Switch
(4) Horn Switch
(5) Head Light Switch
(6) Brake Switch R.H.
(7) Brake Switch L.H.
(8) Flasher Unit
(9) Head Light L.H. (H4 12 V, 55/60 W)
(10) Head Light R.H. (H4 12 V, 55/60 W)
(11) Horn
(12) Dome Light
(13) Door Switch L.H.
(14) Door Switch R.H.
(15) Lisence Lamp (10 W)
(16) Front Combination Lamp L.H.
(17) Position Lamp (5 W)
(18) Turn Lamp (21 W)
(19) Rear Combination Lamp L.H.
(20) Rear Combination Lamp R.H.
(21) Stop/Tail Lamp (21/10 W)
(22) Front Combination Lamp R.H.
(23) Trailer Socket Assembly
(A) Key/Light
(B) Key/IG
(a) Fuse (Flasher / Hazard)
(b) Fuse (Turn Signal)
(c) Fuse (Position Lamp / Number Lamp
/Head Light)
(d) Fuse (Stop Lamp)
(e) Fuse (Horn)
(f) To Meter Panel
(g) To Air Conditioner Control Panel
(Illumination)
(h) To Diode (4WD Brake)
(i) To Meter Panel (Hi Beam)
(j) To Meter Panel (Back Up)
(k) To Radio (Back Up)
