ELECTRICAL SYSTEM
M6040, M7040Narrow, WSM
N9-S12

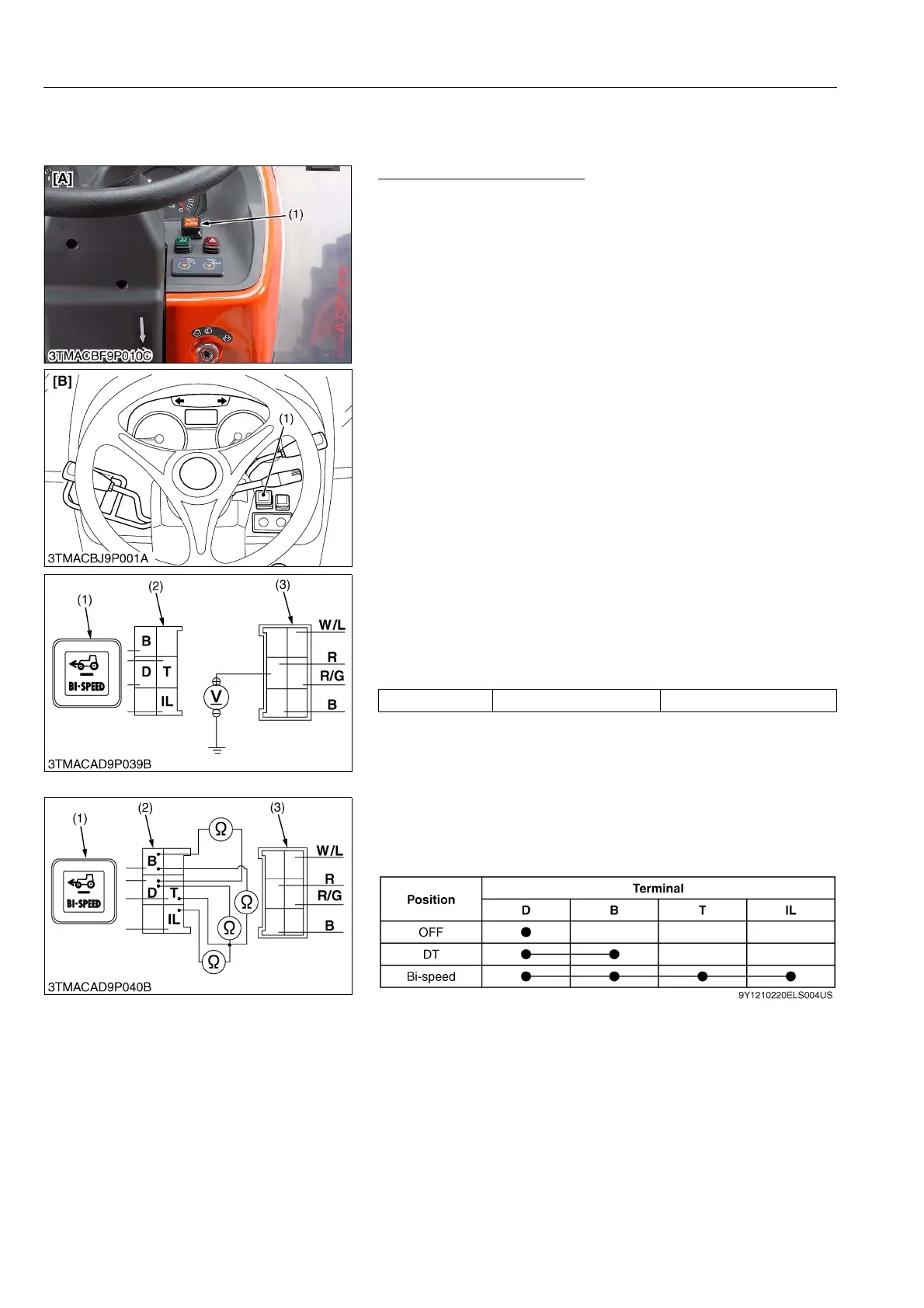

[3] SWITCHES
(1) 4WD / Bi-speed Turn System
4WD / Bi-speed Turn Switch
1. Turn the main switch off.
2. Remove the 4WD / bi-speed turn switch (1).
9Y1210220ELS0016US0
1) Connector Voltage
1. Turn the main switch to ON position.
2. Measure the voltage with a voltmeter across the connector R/G
terminal and chassis.
3. If the voltage differs from the battery voltage, the wiring harness
is faulty.
9Y1210220ELS0017US0
2) 4WD / Bi-speed Turn Switch
1. Check the continuity through switch with an ohmmeter.
2. If continuity specified below are not indicated, the switch is
faulty.
9Y1210220ELS0018US0
(1) 4WD / Bi-speed Turn Switch [A] ROPS Model
[B] CABIN Model
Voltage R/G terminal – Chassis Battery voltage (11 to 14 V)
(1) 4WD / Bi-speed Turn Switch
(2) 4WD / Bi-speed Turn Switch
Connector (Switch Side)
(3) 4WD / Bi-speed Turn Switch
Connector (Wiring Harness Side)
(1) 4WD / Bi-speed Turn Switch
(2) 4WD / Bi-speed Turn Switch
Connector (Switch Side)
(3) 4WD / Bi-speed Turn Switch
Connector (Wiring Harness Side)
KiSC issued 07, 2012 A
