ELECTRICAL SYSTEM
M6040, M7040Narrow, WSM
N9-M18

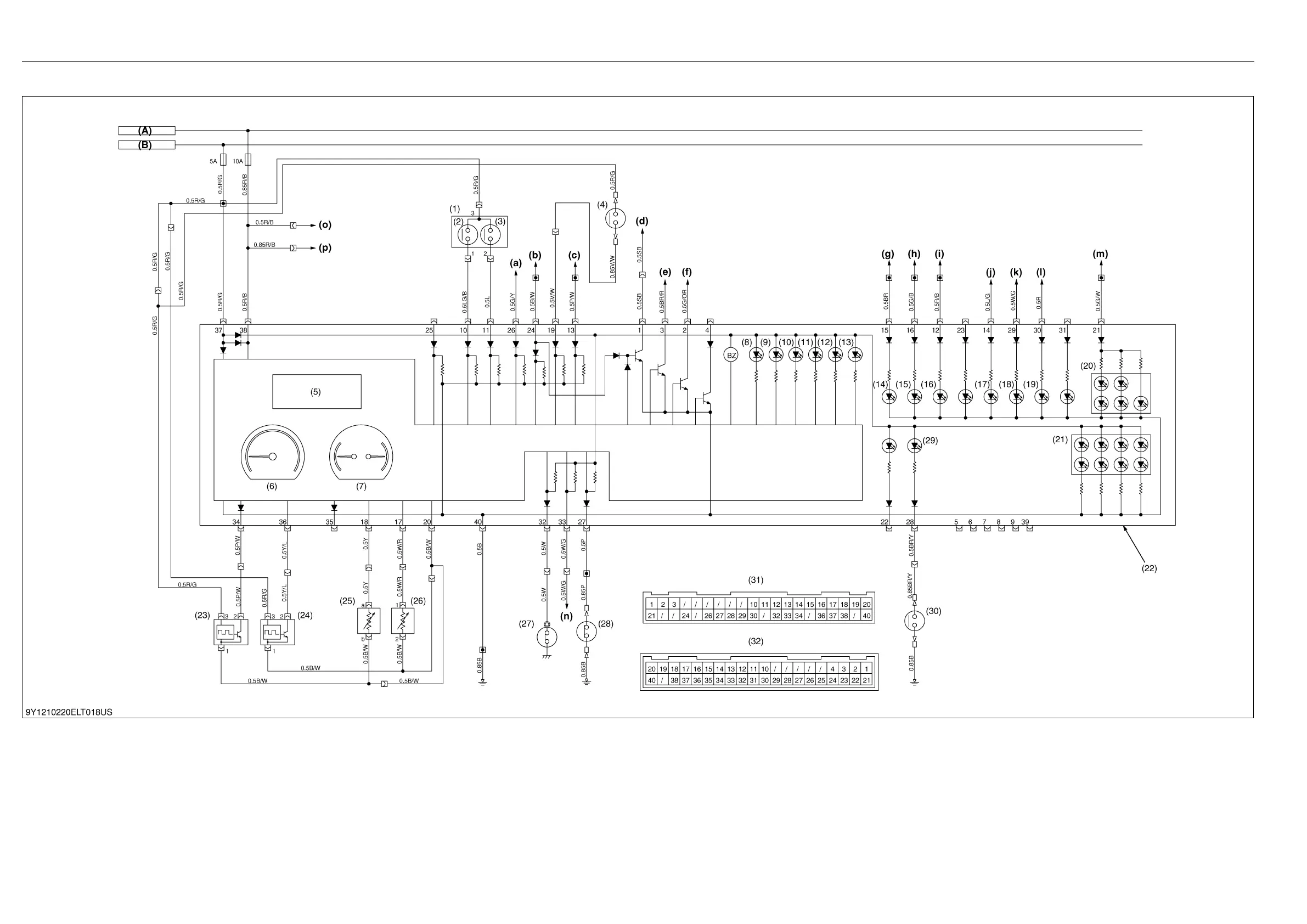

(5) Instrument Panel Board (Meter Panel) (Except ITA Model)
(1) Display Mode Select Switch
(2) PTO/Hour
(3) Speed Unit
(4) PTO Change Switch
(5) LCD Display
(6) Tacho Meter
(7) Fuel/Temperature Meter
(8) Engine Oil Pressure Indicator
(9) Charge Indicator
(10) PTO Indicator
(11) Heater Indicator
(12) Fuel Level Indicator
(13) Parking Indicator
(14) High Beam Indicator
(15) Turn Signal (L.H.) Indicator
(16) Turn Signal (R.H.) Indicator
(17) Trailer Indicator
(18) 4WD Indicator
(19) Bi-speed Turn Indicator
(20) Back Light
(21) LCD Back Light
(22) Meter Panel
(23) Traveling Speed Sensor
(24) Engine Rotation Sensor
(25) Fuel Sensor
(26) Engine Coolant Temperature Sensor
(27) Engine Oil Pressure Switch
(28) Parking Switch
(29) Air Cleaner Indicator
(30) Air Cleaner Switch
(31) Meter Panel (Wire Harness Side)
(32) Meter Panel Side
(A) Key / Light
(B) Key IG
(a) To Front Steer Turning Angle
(b) To Main Key (Start)
(c) To PTO Switch
(d) To Heater Relay
(e) To Engine Stop Relay
(f) To DT/Bi-speed Turn Relay
(g) To Light Switch (High Beam)
(h) To Flasher Unit (Output L)
(i) To Flasher Unit (Output R)
(j) To Flasher Unit (Trailer)
(k) To Diode (4WD Brake)
(l) DT/Bi-speed Switch
(m) To Light Switch
(n) To Alternator
(o) To Dome Light
(p)To Head Light Harness (Horn)
